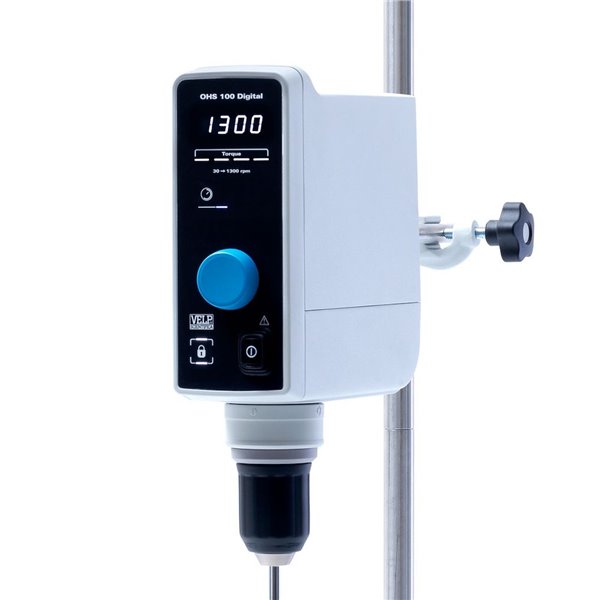

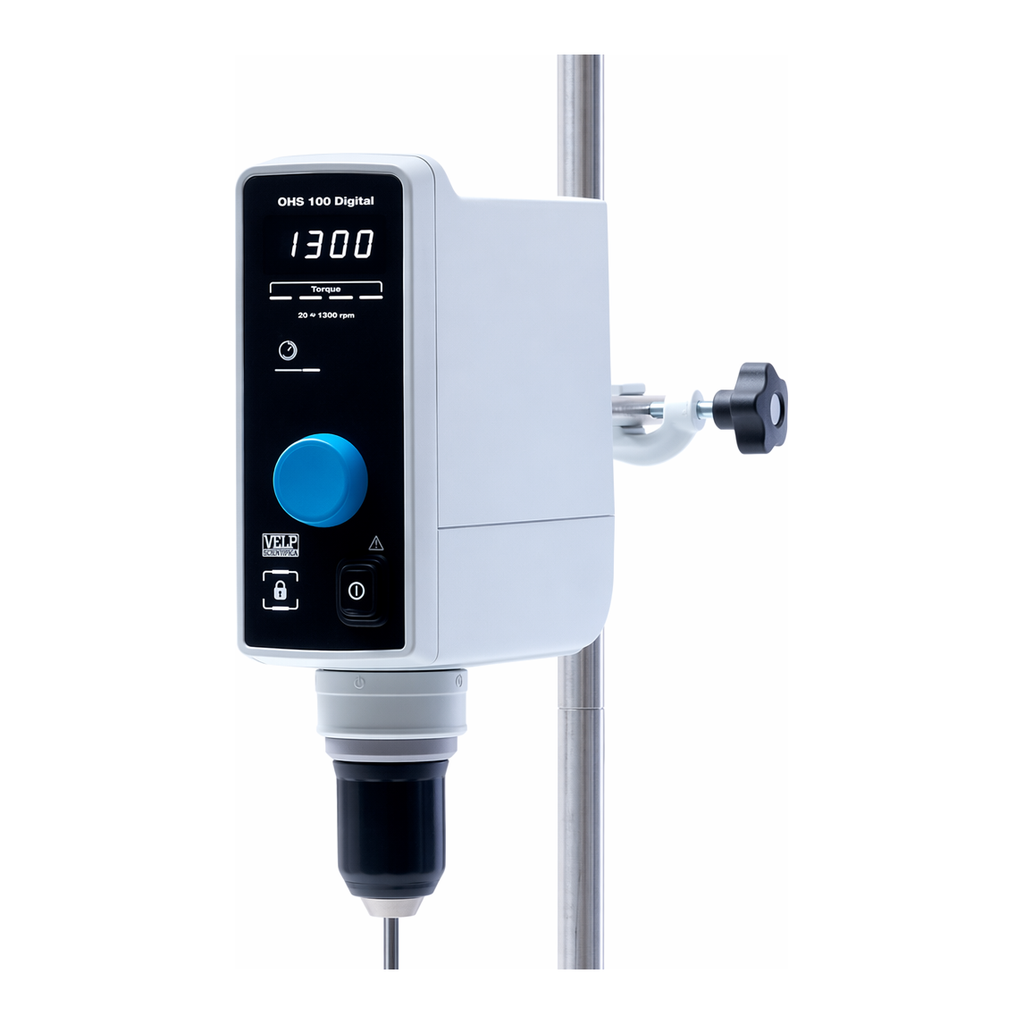

VELP OHS 100 Digital Overhead Stirrer

Safety and resistance for your lab

OHS 100 Digital is designed to guarantee the highest safety standards. The resistant sealed housing and the IP 54 Protection Rating guarantee durability even in the most aggressive environments.
Integrated overload, overtemperature, and overcurrent safety alarms will preserve the performance over time and stop stirring for maximum safety in your lab.
Safe start and stop knob operation and lock key avoid unintended stat up and changes of the working conditions.

OHS 100 Digital ensures continuous operation and is backed by 3 Years Warranty extension.

Best-in-class Stirring Power

The OHS 100 Digital is the ideal solution for demanding applications operating with viscosities up to 70.000 mPa.
The electronic controlled brushless motor of the OHS 100 Digital stirs up to 100 l with a maximum torque of 100 Ncm, and ensures the longest lifespan.

SpeedServoTM torque compensation technology keeps the speed constant automatically adjusting to viscosity changes. Precisely set the OHS 100 Digital from 30 to 1300 rpm

Constant torque at any speed

The brushless motor and the microprocessor guarantee excellent performance marking the difference between a conventional overhead and the VELP OHS Series.

The torque is stable throughout the whole speed range, ensuring stirring at maximum torque even at the highest speed.

This is a very important parameter for the reproducibility of your tests.

SmartChuck™ simplifies shaft accommodation

The OHS Digital SmartChuck™ technology simplifies the shaft accommodation process that can be carried out even with one hand and does not require any tool, making your life easier.

With two simple operations, you can unlock the protection ring to drive the shaft in and out with maximum ease.

The opening of the ring during the stirring process will automatically block the analysis and the instrument informs you for maximum safety.

Easy-to-use and precise

All the necessary information are available at a glance and the dedicated Torque Display with 4 LED segments informs about viscosity changes during the operation.

The OHS Digital integrated timer allows unattended operations. Program your OHS Digital from 1min to 99.59h and walk away!

USB interface facilitates software updates if required.

TECHNICAL DATA

DISPLAY	Digital Display
USER INTERFACE	Digital
MOTOR	Brushless DC
STIRRING VOLUME (H2O)	Up to 100 L
SPEED GEARS	1
MAX TORQUE	100 Ncm
STIRRING SPEED RANGE	30-1300 rpm
SPEED SETTING RESOLUTION	1 rpm
SPEED CONTROL	Digital
MAX VISCOSITY	70.000 mPa*s
TORQUE COMPENSATION	SpeedServo™
CHUCK RANGE	Ø from 1 to 13 mm
SHAFT DIAMATER PASS-THROUGH	up to 8.5mm
TIMER	Yes
LOCK OF THE INSTRUMENT	Yes
INTERFACES	USB
DIMENSIONS (WXHXD)	90x285x235 mm (3.5x11.2x9.3 in)
WEIGHT	4,1 kg (9 lb)
PROTECTION CLASS DIN EN 60529	IP 54

Brochures & Leaflets

VELP Scientifica invites you to download brochures and leaflets in order to explore our premium quality solutions and to have all the major key arguments, features and specifications of a product in your hands, in any place, and at any time.

OHS Series Overhead Stirrers - Brochure [EN]
Laboratory Equipment - Line Brochure [EN]
Product Portfolio - Brochure [EN]

Instruction manuals

Download the instruction manual that contains all the main technical specifications of the instrument and the necessary information for its correct use.

OHS Digital instruction manual

Comparison tables

Select the category of products you are interested in and this tool will give you an easy overview of what is available at VELP in order to find the product that is perfect for you. These comparison tables provide a brief description with side by side features from basic equipment to the most advanced analytical solutions.

VELP Overhead Stirrers Comparison Table
VELP Stirring Shaft Comparison Table

Certifications

Our compliance to statutory rules and regulations worldwide.
With the CE mark, VELP Scientifica declares that the products are designed and manufactured in compliance with the essential safety requirements of the European Directive on Safety.
The Certification Body (CB) Certificate is an international program created by the IECEE for the acceptance of product safety test results among participating laboratories and certification organizations around the world.
The cNEMKOus mark ensures this product is designed and manufactured in compliance with the International Directive on Safety IEC/EN 61010-1. The cNEMKOus mark has the same legal status as any other NRTL/SCC accredited marks, for U.S. and Canada.

CB Certificate VELP Scientifica Overhead Stirrers
CE Declaration of Conformity VELP Scientifica OHS Digital Overhead Stirrers
cNEMKOus VELP Scientifica Overhead Stirrers OHS
