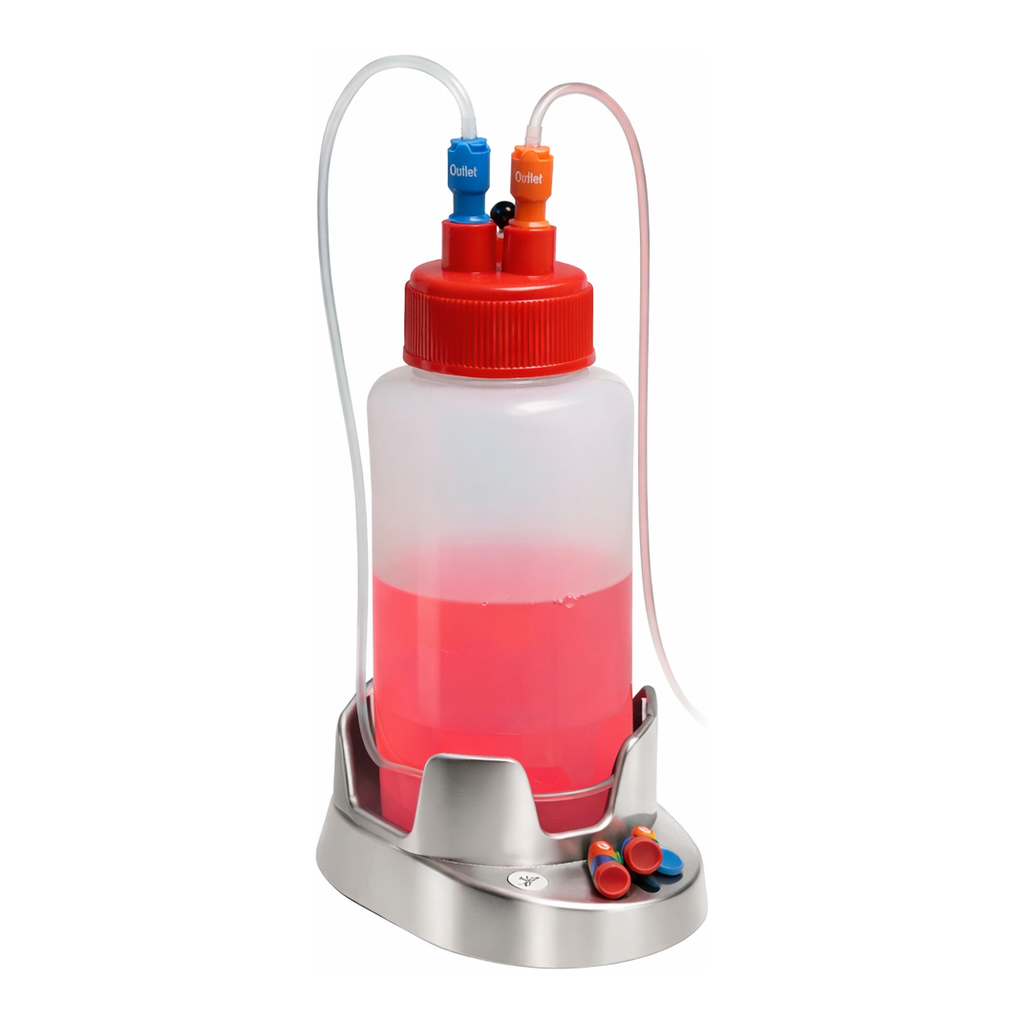

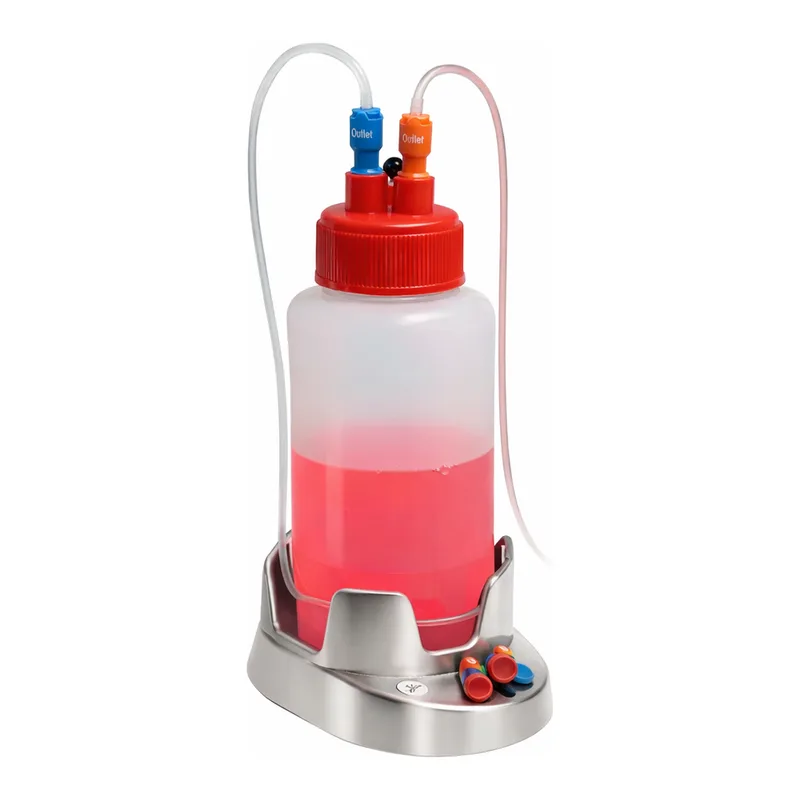

Merck E-Vac Aspiration Waste System

with 4 L Polypropylene Bottle, Barbed Tube Fittings Lid

Safe, self-contained waste system providing an alternative to traditional in-house vacuum systems.

These compact waste systems are ideal for handling critical or hazardous liquids, supernatants, pathogens, and for use in Class III or IV biohazard laboratories.

Quiet, oil-free membrane pump operates within a range of –250 mm to –650 mm Hg. Once the target vacuum is reached, the pump automatically switches off, and automatically restarts when vacuum pressure is applied, maintaining a constant vacuum pressure. This enables gentle aspiration of small plates and dishes, as well as rapid emptying of larger containers.

Key Features

• Compact, user-friendly design
• Level detection system prevents bottle overfill
• Control knob allows infinite vacuum setting from -250 mbar to -650 mbar
• Includes HandE-Vac hand operator with single-channel plastic adapter
• All wetted parts (bottle, lid, tubing, connectors, hand operator) are autoclavable

Construction and Safety

• Easy-to-clean stainless steel housing, UV-resistant for use in laminar hoods
• E-Vac bottles can be autoclaved for 20 minutes at 121°C to prevent contamination
• Base unit illumination allows visual inspection of waste levels
• Dual hydrophobic filters prevent liquid from reaching the pump housing

Bottle Options

• Available with 4 L polypropylene bottle or 3 L safety glass bottle
• Bottles include lids with quick-release tubing connectors for safe and convenient operation
• Level detection sensor automatically shuts off the pump when full
• Polypropylene bottle also available with lid fitted with standard barbed tube fittings

Compliance and Power

• CE compliant
• Supplied international mains plug (100–240 V, 50/60 Hz) with adaptors for US, UK, Australia, and EU

Specifications
