Merck Ace filter reactor system

Ace filter reactor system

capacity 2 L

용량

2 L

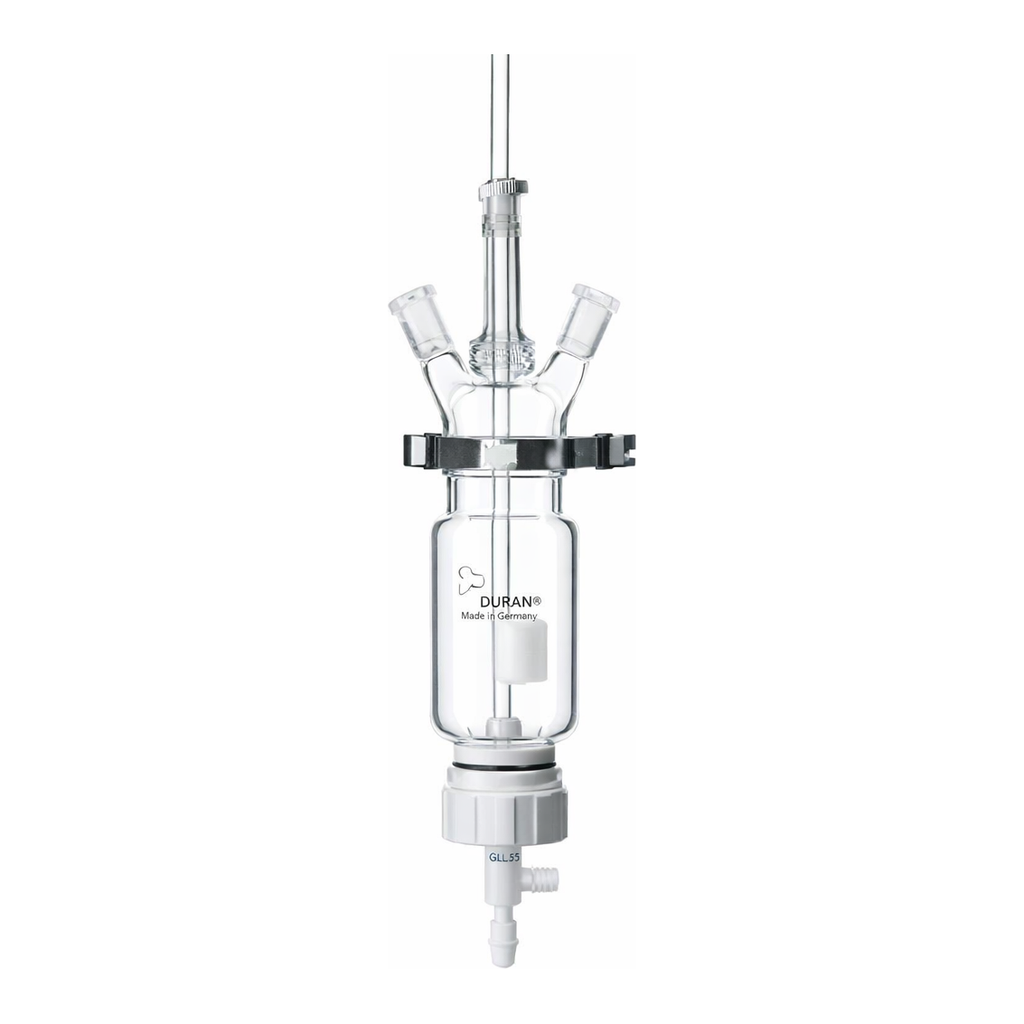

Complete filter reactor assembly allows single or multi-step reactions and filtrations in the same vessel. Features heavy wall glass, interchangeable filters, mechanical agitation and 4 in. or 6 in. Schott flanges.
Features: 3 x 24/40 joints on 60 mm head, 4 x 24/40 joints on 100 mm head
Applications:

• Oxidation/reduction reactions where the particulate can be drawn down to a filter cake
• Nanotechnology where the material must be contained and the filtrate is the actual product or nano-particle needed
• Simple bioreactor as gases can be introduced through pressure head via a pressure or NPT fittings and tubing
• Paints/pigments other viscous solutions

System includes:

• Heavy-wall glass reactor body and head, CAPFE o-ring and SS quick-release clamp
• Ace Thred PTFE bottom filter adapter, o-ring, and filter support, PTFE thread adapter, o-ring and PTFE bottom valve
• Non-flaking stir shaft bearing
• Glass stir shaft with PTFE agitator assembly
• Addition funnel
• West condenser
• Support package including holed plate, stand, chain clamp, and holder
• PTFE stoppers
• Chuck adapter for IKA stirrer motor
