Merck Grace Bio-Labs CultureWell removable chambered coverglass

Grace Bio-Labs CultureWell™ removable chambered coverglass

size 16 wells , Round

material

colorless
silicone (on glass)

무균

sterile

특징

wells 16

manufacturer/tradename

Grace Bio-Labs 112358

외부 길이 × 너비 × 깊이

80.7 mm × 20.5 mm × 13.7 mm

크기

16 wells , Round

well area

0.4 cm2

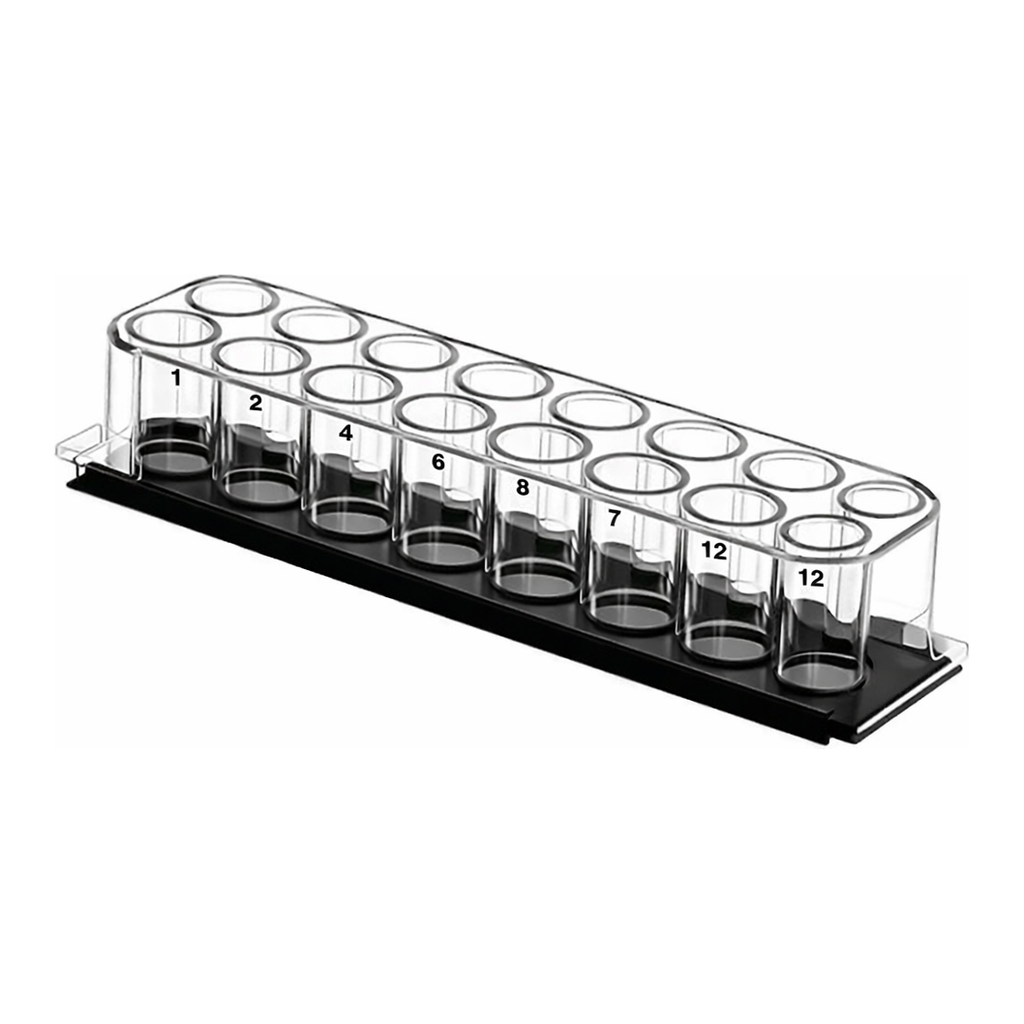

CS16 - CultureWell™ with Removable Chambered Coverglass - ideal for cell culture and fluorescence imaging applications

The 2 x 8, 16 chambered coverglass is like a chambered slide with the imaging advantages of a removable coverglass substructure. It is designed with standard 96 well plate volumes and well spacing. The non-cytotoxic silicone well gasket forms a leak-proof seal between the polycarbonate upper structure and the coverglass. CultureWell™ chambered coverglass is shipped sterile and ready to use.

Coverglass removal is facilitated using a very simple device that reliably separates the parts without the need for excessive force or risk of cover glass breakage. Silicone removal leaves no residue. Components are manufactured and assembled with special orientation features for ease of handling and convenient identification or specimen location after well structure removal.

• The growth surface is No. 1.5 German borosilicate coverglass
• Inert, non-cytotoxic silicone permits complete edge-to-edge growth of cells
• Well spacing allows use of multi-channel pipettes for ease and speed of handling
• Cell growth characteristics are optimal due to the use of inert silicone materials and manufacturing process
• Quality tested for non-leakage, cell growth and coverglass removal to ensure consistent performance
• Silicone well gasket remains attached to coverglass after separation, allowing wells to be used as reagent reservoirs
• Gasket well design is ideally suited for small volume incubations; in situ hybridization and immunostaining
• Black well gasket reduces light scatter, enhancing fluorescence applications. The gasket can easily be removed from the coverglass for mounting

Key product dimensions include:

• Coverslip gasket thickness is 0.5 mm
• Interior diameter of each well is approximately 6 mm
• Volume per gasket well (upper structure removed) is approximately 9 μL
• Volume per well with the upper structure is 250 μL
