Merck Corning CrystalEX 384 well protein crystallization plates

Corning® CrystalEX™ 384 well protein crystallization plates

cyclic olefin copolymer (COC), flat bottom, non-sterile, lid: no, pack of 10

384 well microtiter plates, protein crystallization plates, 384 well microplates, 384 well protein crystallization plates, 384 well plates, 384 multiwell plates

material

clear cyclic olefin copolymer (COC) plate
cyclic olefin copolymer (COC)
flat bottom

무균

non-sterile

특징

lid: no
plate format: 384 well standard (1 protein well/reservoir well)

포장

pack of 10
case of 50

manufacturer/tradename

Corning 3775

저장장치 용적

105 μL

웰 용적

4 μL , protein well volume

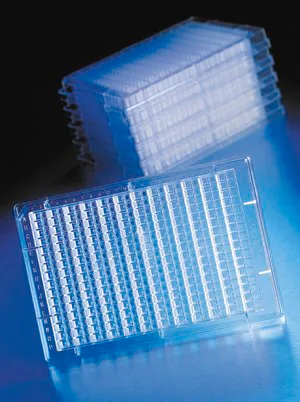

Corning® CrystalEX™ 384 Well Protein Crystallization Plates

• 384 well microplate designed for full automation in crystal screening, built to meet industry standards for 384 well microplate footprint and well locations
• Features 192 reservoir wells (105μL/well) and 192 corresponding protein wells (4μL/well)
• Reservoir wells and protein wells are positioned to be compatible with multihead dispensing equipment (up to 96 well heads)
• Manufactured from an advanced polymer with high resistance to commonly used solvents, including acetone, acetic acid, butanone, ethanol, isopropanol, methanol, DMSO, nitric acid (65%), sulfuric acid (40%), hydrochloric acid (36%), and ammonia solution (33%)
• Low background polarization and high optical clarity allows protein crystals to be easily viewed under polarized light with minimal background interference
• Low water absorption of the polymer prevents loss of protein drop volume
