Sterlitech Dyed Polycarbonate Membrane Filters / 다이드폴리카보네이트멤브레인필터

Dyed Polycarbonate Membrane Filters /
다이드폴리카보네이트멤브레인필터

These hydrophilic, polycarbonate track-etch (PCTE) membrane filters have been pigmented using black dye to minimize membrane autofluorescence.
The dyed PCTE membrane filters are ideal for use with fluorescence microscopy analyses that involve direct observation and enumeration of animal cells
or microorganisms that have been labeled with fluorescent markers. They are also suitable for optical microscopy studies of light colored
particles and microorganisms by providing a dark background for enhanced contrast.

Sterlitech offers two versions of the pigmented PCTE membrane filters to cover the broadest possible range of potential applications: Gray and Black.

The Gray variation has been pigmented using Irgalan Black dye and are ideal for applications where both fluorescence microscopy
and conventional optical microscopy may be performed on the same sample.
The Black variation has been pigmented using a proprietary dying process and are ideal for applications
requiring maximized contrast for optical microscopy studies of light colored particles or organisms.

Hydrophilic PCTE Membrane Filter Applications

0.01 - 0.1 micron
* Most liposome extrusions (range 0.03 - 0.4 µm)
* Asbestos (water)
* Bacteria removal: Acholeplasma laidwaii
*Removal of colloidal material from water
*Mycoplasma removal
*Tissue culture with collagen: skin graft
*Virus filtration

0.2 - 1.0 micron
* 0.2 µm: General sterile filtration, sterile filtration of corrosive fluids, immunology, implant tissue and cell studies,
air venting, aqueous fluids, air and gas sterilizing. FITC stain technique, Legionella pneumophilia - air conditioning water,
DNA fragments filtration, phytoplankton, bacteria removal, deionized water-clinical laboratory Type 1 and for semiconductor
industry using SEM analysis, and EPA leachate/toxicity testing.

* 0.4 µm: Sterility testing, pulp, paper-adsorbable organic halides-water (AOX), air (asbestos fibers, silica particles pollen),
dewatering, purification of cellular suspensions and wine stabilization, immunology - tissue and cell stuides,
forensic analysis (SEM), microscopic examination - samples, Water-pollution (Escherichia coli), trace metal analysis (USGS method),
nitrates, nitrites, phosphates, and ammonia (low extractable), particle analysis of corrosive fluids, bacteria -
Serratia marcescens, and cell culture.

* 0.6 µm: Particle analysis (corrosive fluids), analysis of wine, milk, cells and plasmapheresis. Latex Agglutination Assays

* 0.8 µm: General air analysis (asbestos, Cadmium), sugar molds (food), gravimetric analysis, tissue culture partitioning,
wine stabilization, alkaline elution (DNA).

* 1.0 µm: Serum pre-filtration, beer stabilization, ultracleaning (corrosive fluids), microfiltration (alcohol solutions),
Giardia lamblia (removes most of them), red blood cells (RBC)

* (0.2-0.8 µm): EPA leachate/toxicity testing.

* (0.4-3.0 µm): Cell culture

* (0.6-1.0 µm): Plasmapheresis

2.0 - 30.0 micron

* 2.0 µm: Chemotaxis, alkaline elution (DNA), red blood cells (RBC's)

* 3.0 µm: General microfiltration and clarification, cytological evaluation (cerebrospinal fluid),
chemotaxis, red blood cells (RBC), microfiltration of corrosive fluids

* 5.0 µm: Exfoliate cytology, chemotaxis, gravimetric analysis, Gairdia lamblia (3-5um) observation,
canine heartworm microfilariae (dirofilaria immitis), erythrocyte deformability (4.7 µm),
gross particulate analysis of corrosive fluids (oil, diesel, gas filtration)

* 8.0 µm: Cytology

* 12.0um: Starch, Schistosoma haematobium

* (0.4-3.0 µm): Cell culture

* (8.0-14.0 µm): Larger bacteria, general clarification and pre-filtration of corrosive fluids,
most acides, some ester photoresists, reagent grade chemicals and alcohol solutions

* (10.0-12.0 µm): Human melonoma invasion study (cancer-tumors), leukocytes, metastasis tumor cell

* (0.01-20 µm): Scanning electron microscopy (SEM)

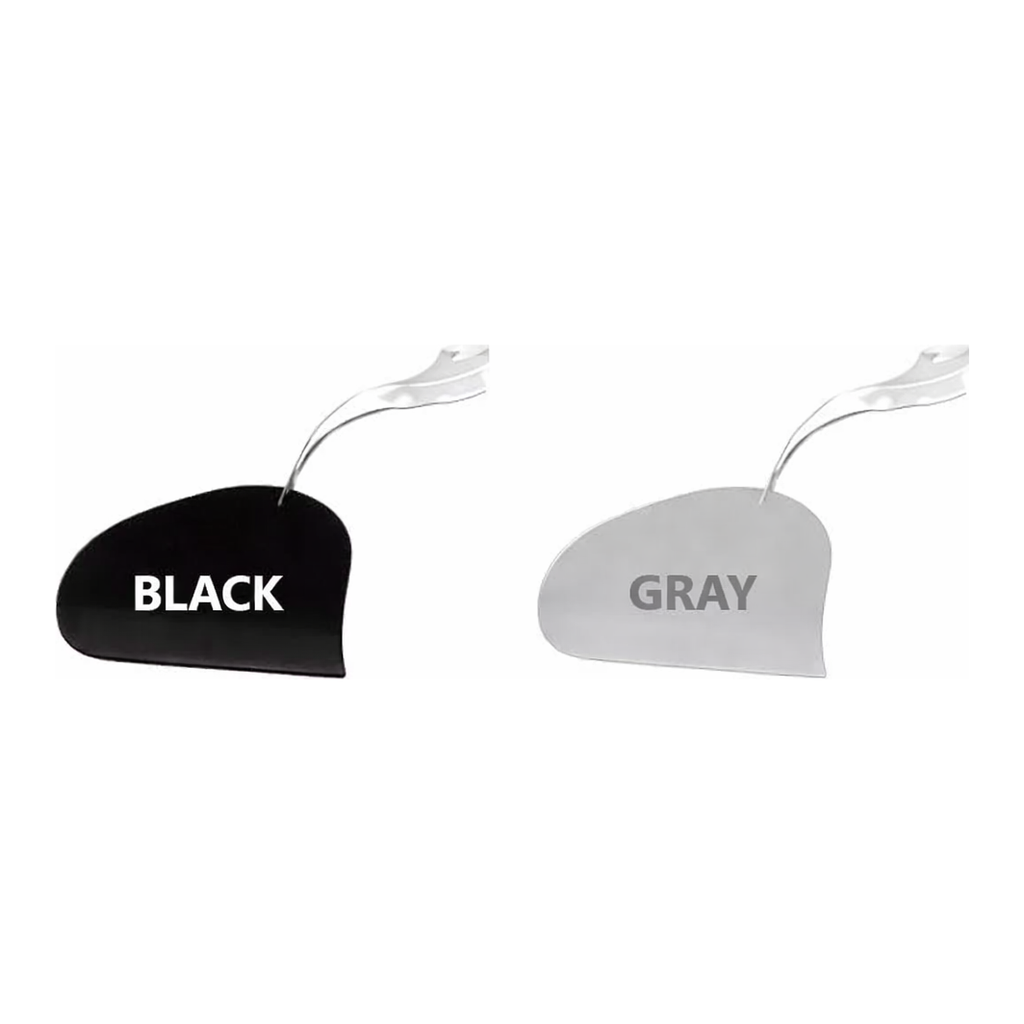

Sterlitech offers two versions of the pigmented PCTE membrane filters to cover the broadest possible range of potential applications:
*Gray and Black. *

Gray Membranes
Fluorescence Microscopy
Conventional Optical Microscopy

Black Membranes
Fluorescence Microscopy
Automated Fluorescence Microscopy
Optical Microscopy Studies of light colored particles/microorganisms
