Sterlitech Cross and Tangential Flow Test Cells, Explorer

Cross and Tangential Flow Test Cells, Explorer

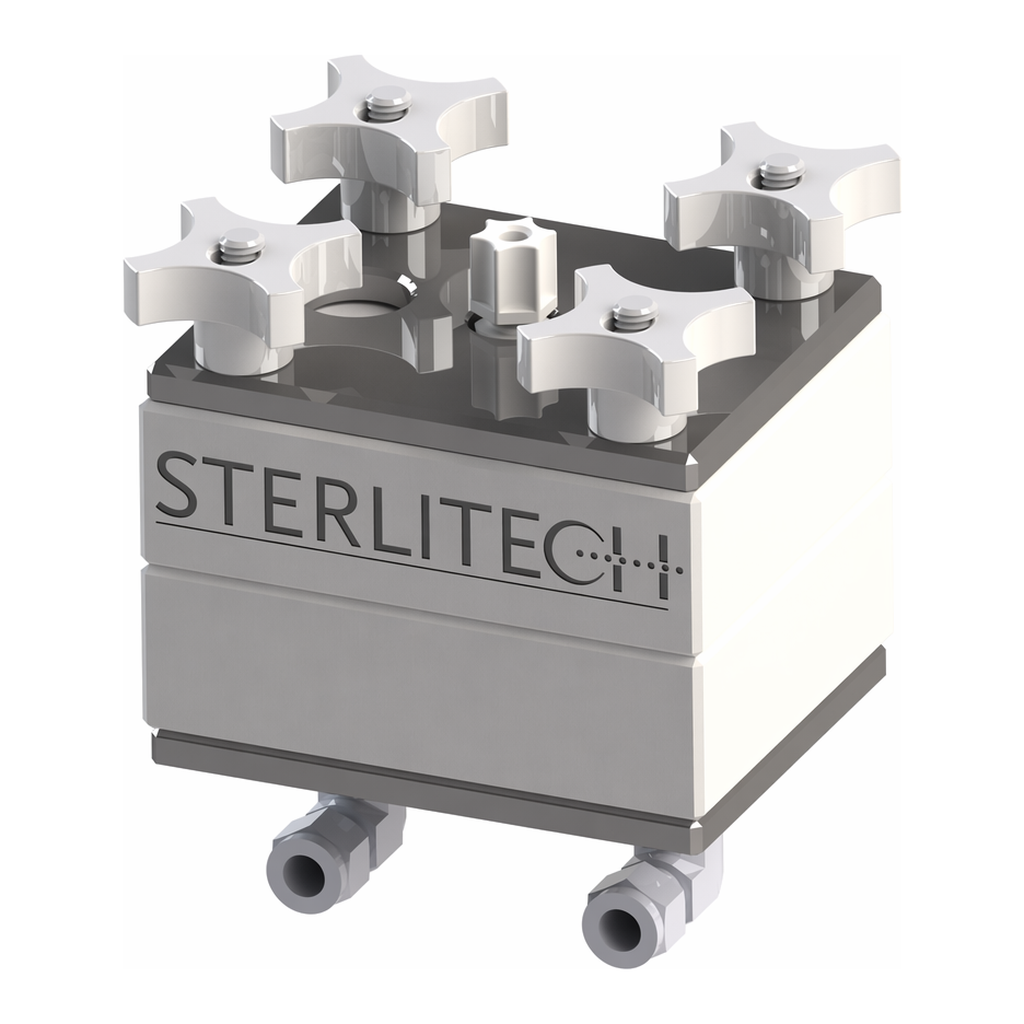

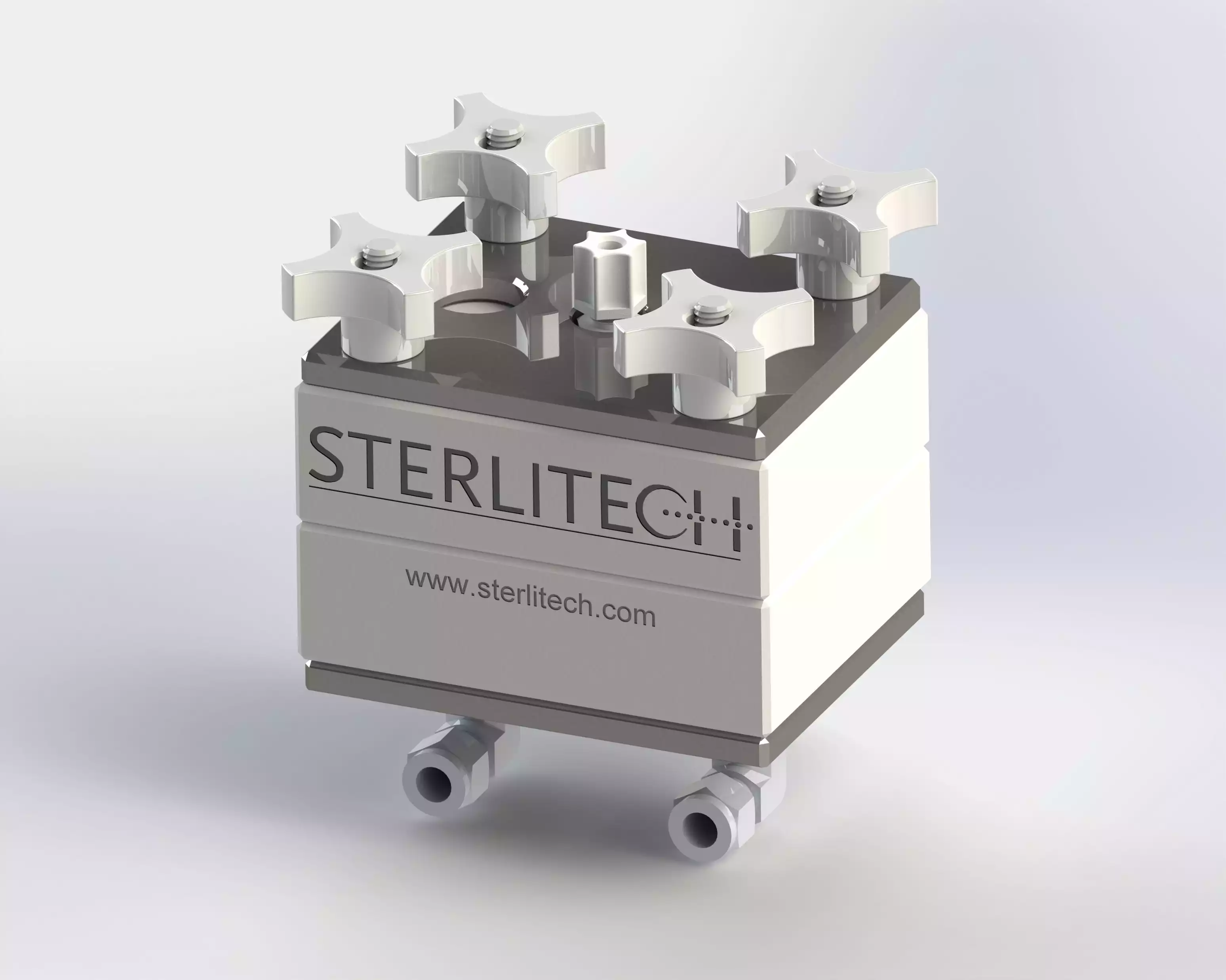

The CF042 cell is a bench-scale cross/tangential flow cell that provides fast and accurate
performance data with minimal amounts of membrane, product, expense or time.

CF042 Cell Features and Benefits:

Accepts polymeric flat sheet membrane coupons
Mimics both laminar or turbulent flow conditions
Provides fast and accurate performance data
Offers judicious membrane use with small membrane active area
CF042 cell has a membrane active area of 42 cm2 (6.5 in2).

CF042 is available in Acetal (Delrin) and Stainless Steel with a maximum
operating pressure of 1000 psi (69 bar), which allows operators to conduct
high pressure testings.

CF042 cell is also available in Acrylics with a maximum operating
pressure of 400 psi (27.6 bar).

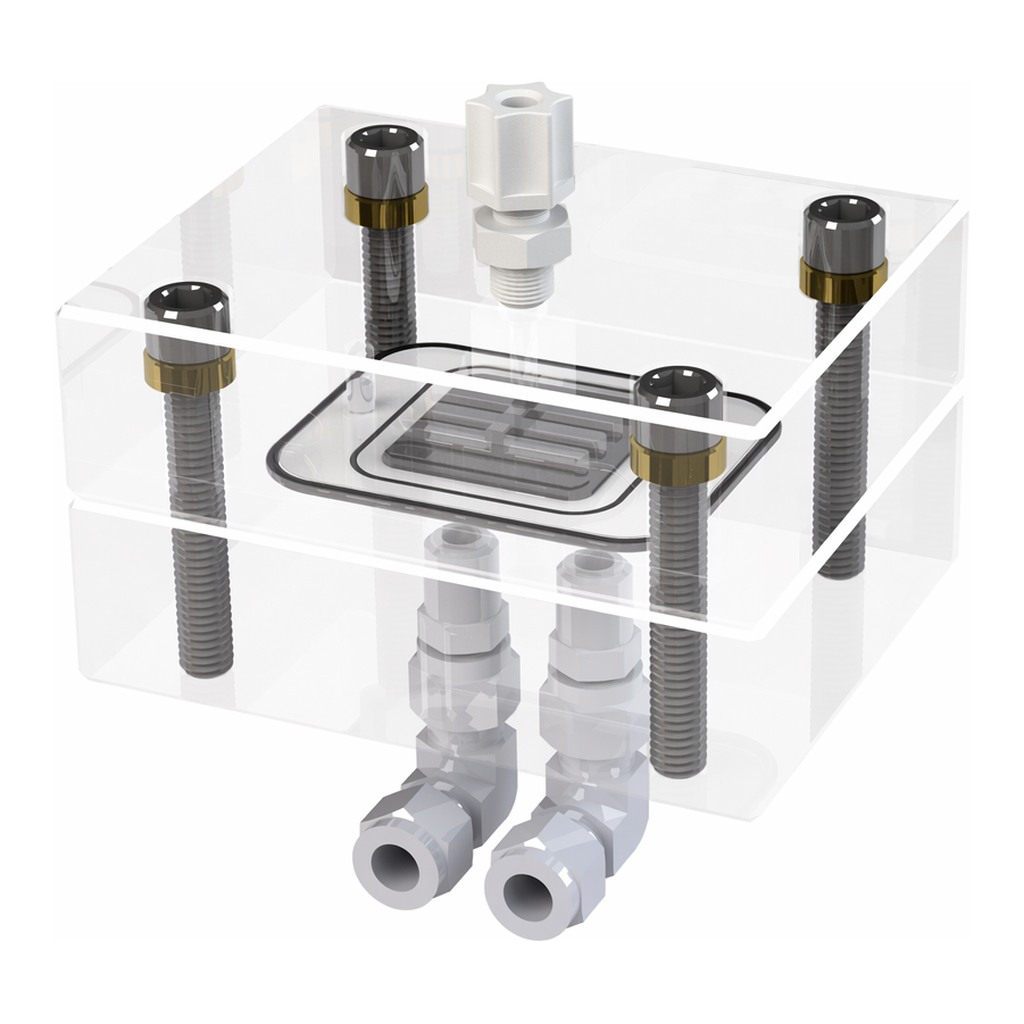

Acrylic CF042 cell provides a great opportunity to visually investigate
the hydrodynamic conditions in the cell or the local fouling intensity.

CF042 is available in PTFE and Hastelloy™ when chemical resistant material is of interest.

In order to operate the CF042 Cell additional parts and equipment are required, which include:

Feed flow pump designed for high pressure, lower flow applications
Feed spacers or permeate carriers which mimic hydrodynamic conditions of large scale membrane modules
Feed and permeate tanks which connect to the cell
Concentrate control valve to pressurize the cell
Please visit the cross flow cell system component page for the list of all the parts
and equipment required to build a complete filtration system configured
with CF042 cell and other cross/tangential flow cells Sterlitech offers.

Cross/tangential flow test cells are typically used in membrane applications such as :
Biological or biopharmaceutical processing
Concentration of fruit juices and extracts
Food and beverage processing
Desalination of brackish water or seawater
Purification of rinse water in electroplating tanks
Municipal or industrial water and wastewater purification
