THERMAX 비가역성 저온 인디케이터 TEMPASURE

Description

This adhesive freezing sensor monitors if the temperature of a product reaches a critical value during its transportation and storage and if this temperature might cause the freezing or the deterioration of its properties.

Tempasure does not contain batteries and electrical components. To use this device, you just have to stick it a product or package and activate by pulling one of its tabs. Once enabled, it will change its colour permanently if the temperature goes under the set value. In this way, we can a posteriori check if the product has been exposed to a temperature range under the allowed level and if it may consequently have faults.

The minimum quantity of this device is 100 units. Please check prices and availabilities for big volumes.

The standard version of Tempasure is available in the following ranges and temperatures, despite a customized production between -20ºC and +40ºC is also possible.

• D+10 10ºC
• D+5 5ºC
• D+2 2ºC
• D0 0ºC
• D-5 -5ºC
• D-10 -10ºC

Technical information

Minimum quantity: 100 units

Size: 54.3 x 17.5 mm; width 5.5 mm

Type: Horizontal

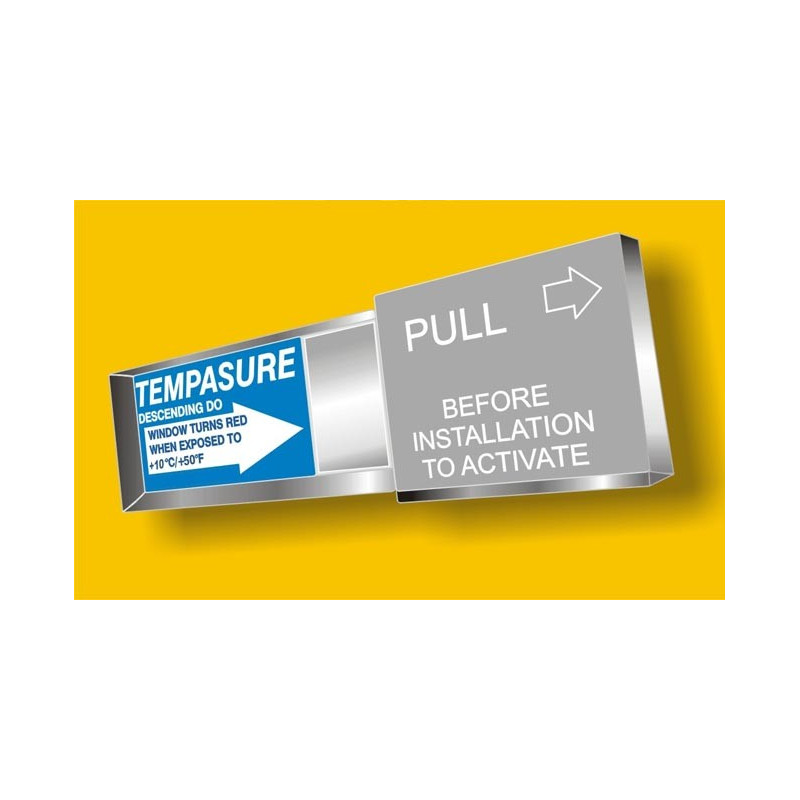

Tempasure temperature sensor is a plastic adhesive device containing a special material that, once activated, changes its colour from transparent to red when the temperature drops under the set value. To use this device, you just have to pull its security tab and stick it to the surface or product to monitor. It is recommended to keep the device at a temperature 5ºC over the control temperature, at least 10 minutes before activating it.

Tempasure does not contain batteries and electronic components.

Accuracy: +/- 2ºC
