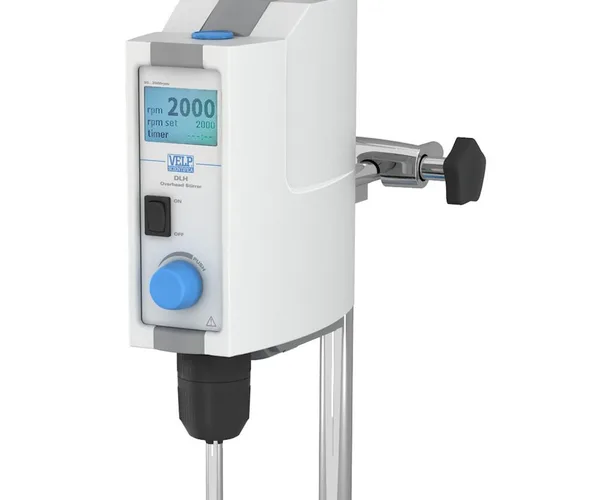

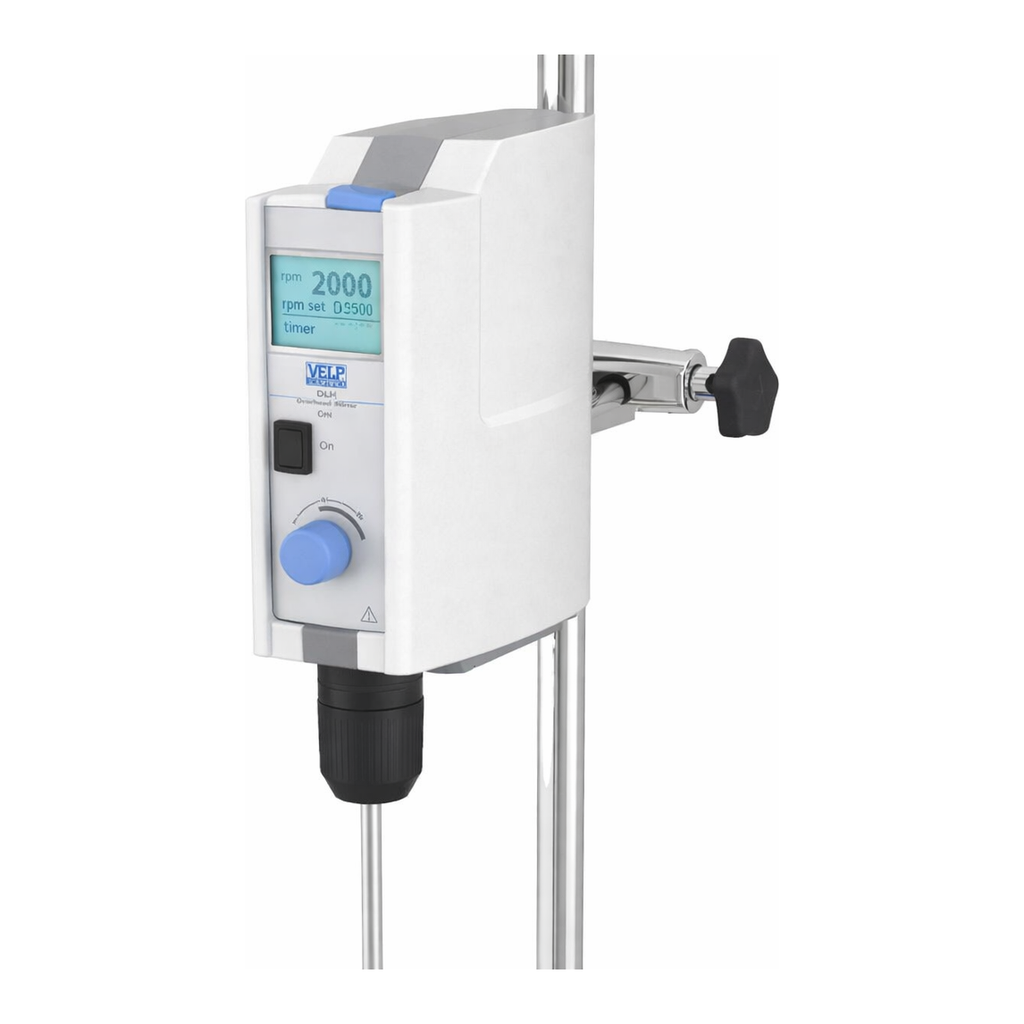

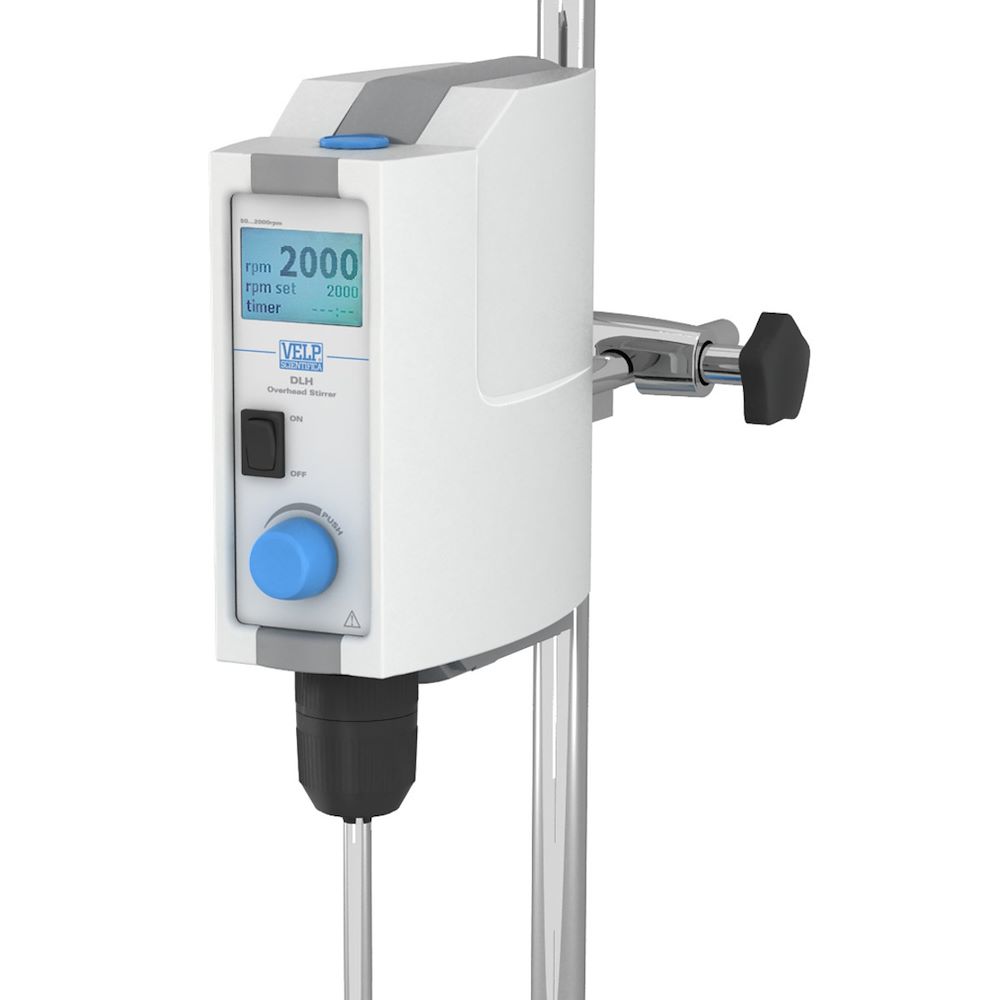

VELP DLH Digital Overhead Stirrer

Safe and Easy to use

DLH guides the user through a bright and easy to read display. All the main parameters, including the set speed, actual speed, torque and timer are visible at a glance.
The instrument is also equipped with a digital timer that can be set up to 999:59 minutes with automatic switch-off.
The DLH is an intuitive overhead stirrer ensuring safety with overload, over-current and overheating protection.
Easy to install, resistant and with a small footprint, DLH is your best choice for medium-high viscosity samples.

Powerful Stirring

VELP DLH ensures a smooth start and vigorous agitation even at maximum speed!
DLH can reach speeds of 2000 rpm and stir up to 40 litres. The device can manage medium-high viscosity, with a maximum of 50,000 mPas.
In addition, DLH offers a feedback system, which ensures constant speed even with varying viscosity.
The easy chuck is easy to close and can accommodate shafts with up to 10 mm diameter and does not require any tool.

Resistant and lightweight

DLH is designed to offer a long lifespan even in challenging operating conditions.
The special technopolymer structure and the IP 40 guarantee good chemical resistance and special handling, being among the lightest on the market.
The robust motor guarantees continuous operations over the years, without additional maintenance cost

TECHNICAL DATA

CONSTRUCTION MATERIAL:	technopolymer and epoxy painted aluminum alloy
CHUCK RANGE:	1 - 10 mm
VISUALIZATION OF SET SPEED:	display LCD
ELECTRONIC PROTECTION RATING CEI EN 60529:	IP 40
POWER:	190 W
WEIGHT:	3.0 Kg
DIMENSIONS (WXHXD):	80x230x196 mm
ELECTRONIC SPEED REGULATION:	50 - 2000 rpm
STIRRING VOLUME MAX (H2O):	40 liters
MAX VISCOSITY:	50000 (mPa*s)*
TORQUE MAX:	80 Ncm
ALLOWED ROOM TEMPERATURE:	0 - 40 °C

Brochures & Leaflets

VELP Scientifica invites you to download brochures and leaflets in order to explore our premium quality solutions and to have all the major key arguments, features and specifications of a product in your hands, in any place, and at any time.

DLH Digital Overhead Stirrer - Leaflet
Laboratory Equipment - Line Brochure [EN]
Product Portfolio - Brochure [EN]

Instruction manuals

Download the instruction manual that contains all the main technical specifications of the instrument and the necessary information for its correct use.

DLS DLH instruction manual

Comparison tables

Select the category of products you are interested in and this tool will give you an easy overview of what is available at VELP in order to find the product that is perfect for you. These comparison tables provide a brief description with side by side features from basic equipment to the most advanced analytical solutions.

VELP Overhead Stirrers Comparison Table
VELP Stirring Shaft Comparison Table

Certifications

Our compliance to statutory rules and regulations worldwide.
With the CE mark, VELP Scientifica declares that the products are designed and manufactured in compliance with the essential safety requirements of the European Directive on Safety.
The Certification Body (CB) Certificate is an international program created by the IECEE for the acceptance of product safety test results among participating laboratories and certification organizations around the world.
The cNEMKOus mark ensures this product is designed and manufactured in compliance with the International Directive on Safety IEC/EN 61010-1. The cNEMKOus mark has the same legal status as any other NRTL/SCC accredited marks, for U.S. and Canada.

CE Declaration of Conformity VELP Scientifica Overhead Stirrers
cNEMKOus VELP Scientifica Overhead Stirrers
