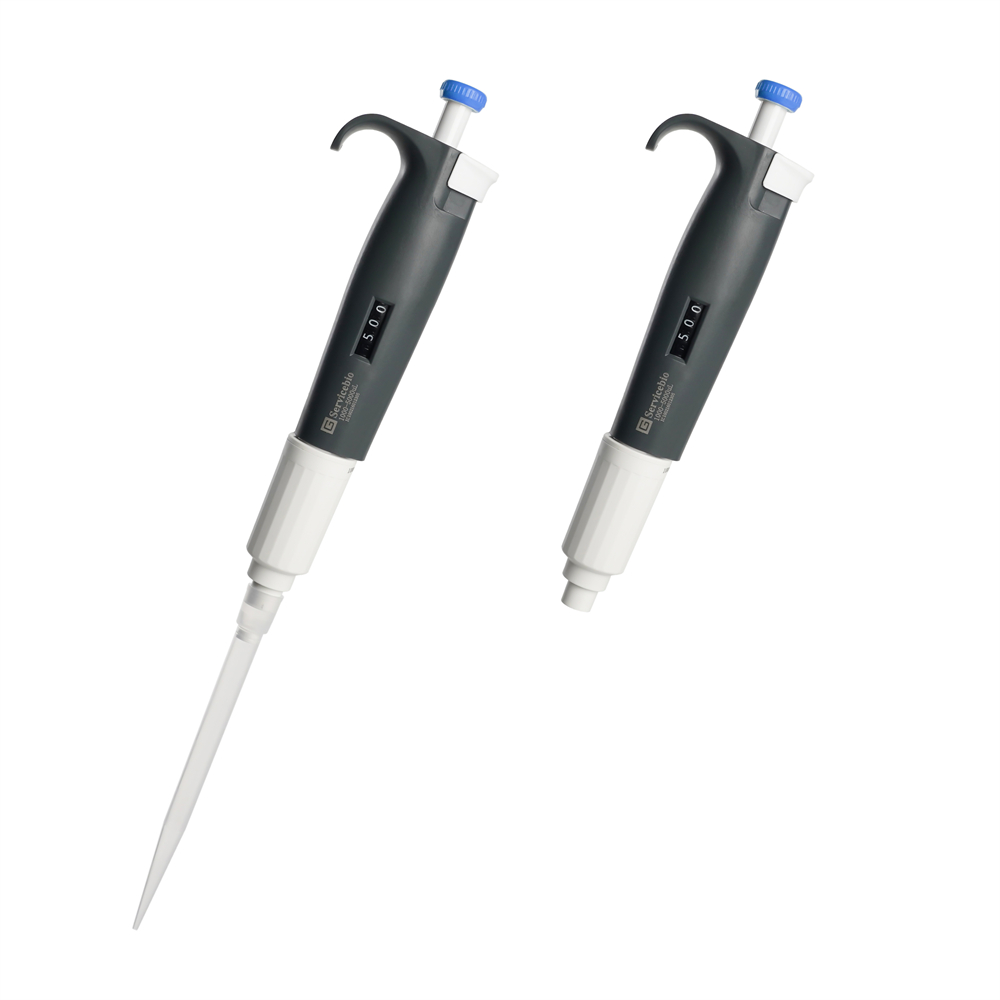

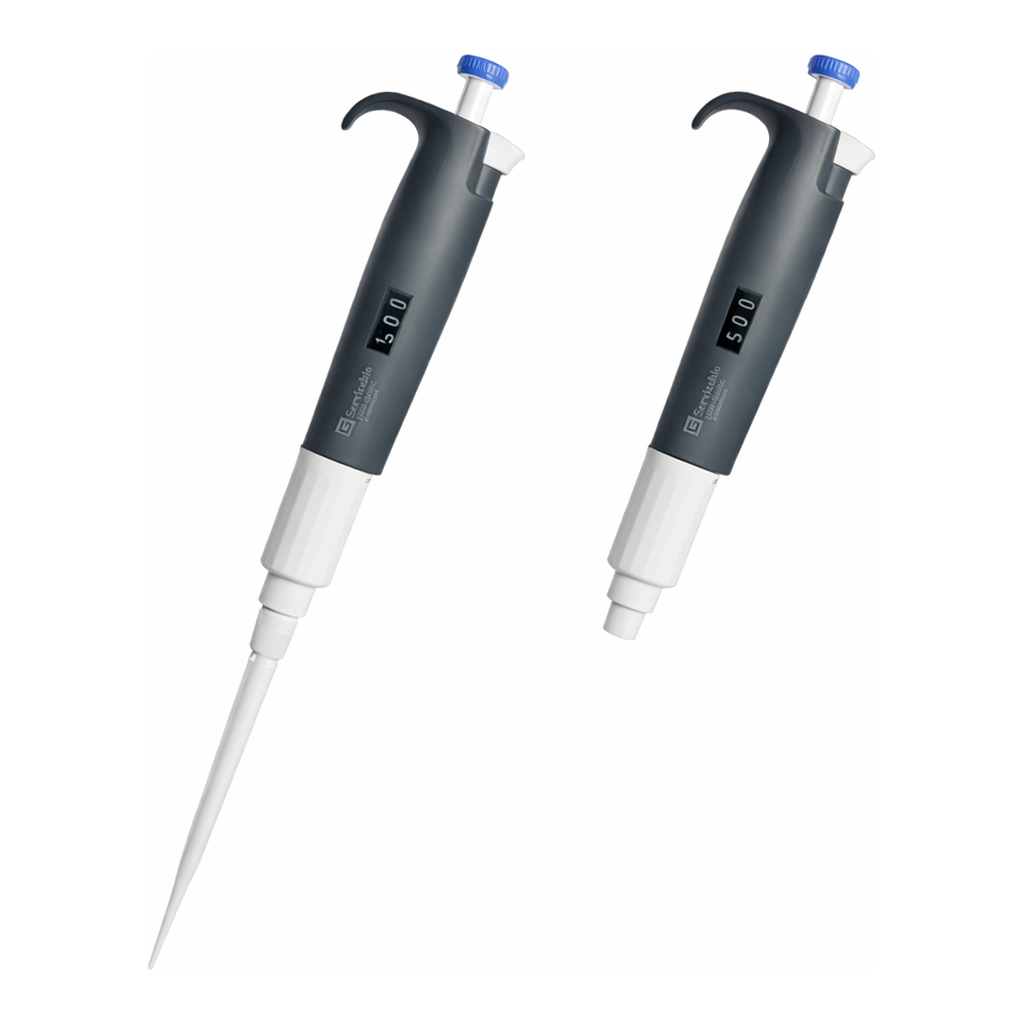

Servicebio Pipette

Product Introduction

A pipette is a device used to transfer liquid quantitatively. In analytical testing, a pipette is generally used to transfer small or microliter amounts of liquid.
There are 8 colors to choose from, and exclusive lucky colors can be customized.

SPIP-5000 Pipette Compatibility Chart

---

Product Features

1. Multiple volume ranges with multi-color markings, single-channel and multi-channel options
2. Lightweight spring for extremely easy operation
3. Equipped with Servicebio tips ensuring good air tightness and accurate volume transfer
4. Perfectly matched with most tips in the market
5. CE certified, compliant with ISO 8655-2:2022 international standard

---

Product Parameter

---

Detailed Product Features

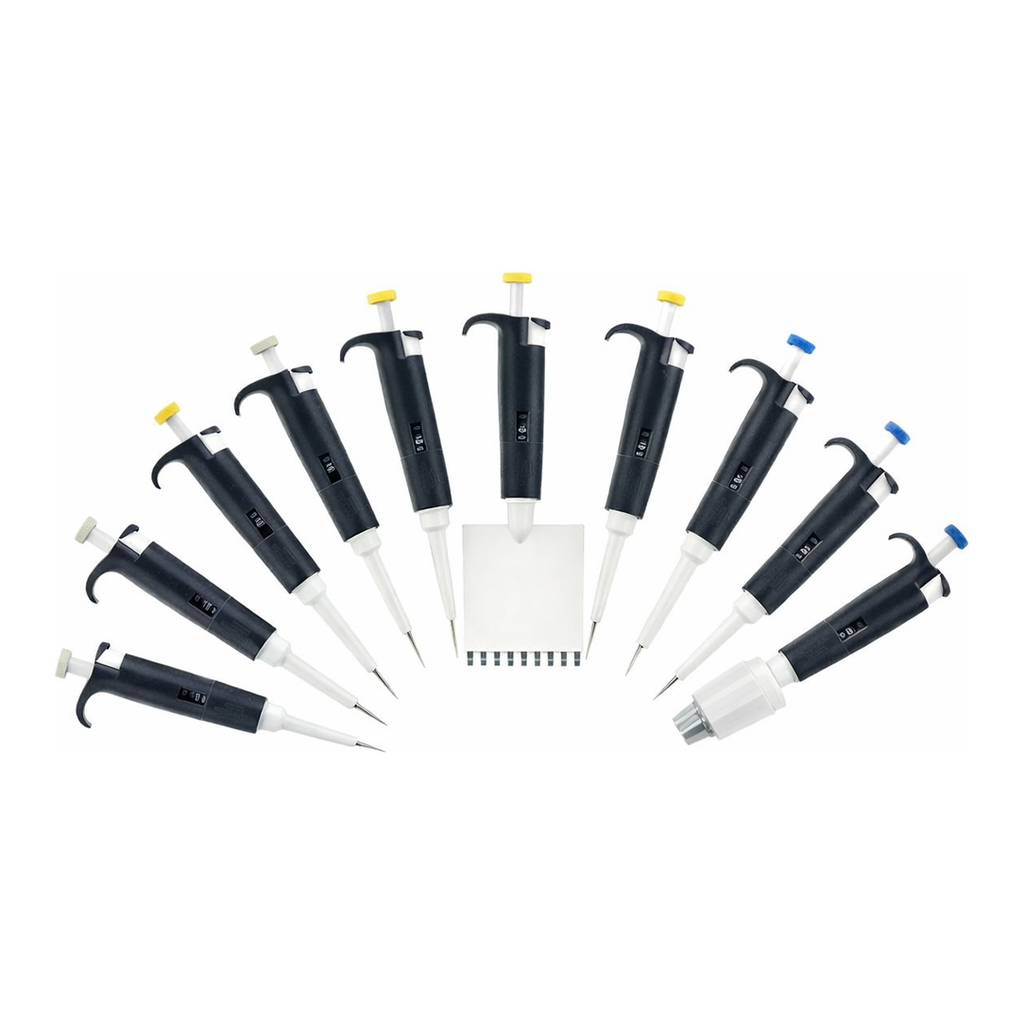

• Single Channel: 0.1–2.5 μL, 1–10 μL, 2–20 μL, 5–50 μL, 10–100 μL, 20–200 μL, 100–1000 μL, 1000–5000 μL, 1–10 mL (10 sizes optional)
• Multi-Channel: 1–10 μL, 2–20 μL, 5–50 μL, 10–100 μL, 50–300 μL, 100–1000 μL (6 sizes optional)
• Lightweight ergonomic design for comfortable grip and reduced hand fatigue
• Large digital display for clear volume reading
• High-strength materials, resistant to corrosion and UV sterilization
• Color-coded handles for easy identification
• Compatible with most tips on the market
• Calibrated according to EN/ISO8655 standard with strict quality control

---

Pipette Structure (from image OCR)

• Push Button / Volume Turn Button (Top Cap)
• Push Rod
• Handle Grippy
• Tip Ejection Button
• Handle
• Volume Display
• Tip Ejection Pipe
• Pipe Tip

Body Label:
Servicebio
2–20 μL Adjustable Pipette
Display shows “2.0”

---

Pipette Operation

Forward Technique (Low Density Liquids)

1. Press the push button to the first STOP
2. Slowly release the button to the ready position to complete aspiration
3. Deliver liquid by pressing to the first STOP, then to the second STOP to empty the tip
4. Release button to ready position; change tip if necessary

Reverse Technique (High Viscosity or Volatile Liquids)

1. Depress button to the second STOP for aspiration, then release slowly to ready position
2. Press to the first STOP to discharge preset volume
3. Discard remaining liquid with the tip

From image OCR:
Ready Position → First STOP → Second STOP

---

Calibration and Adjustment

Use the Service Tool as shown:

• Turn clockwise to increase volume
• Turn counterclockwise to decrease volume
• Calibrate 1–2 times per year depending on usage frequency

From image OCR:
Service Tool
Mantissa (Increment) refers to the data sheet of related product No.

---

Storage and Transportation

Store and transport at room temperature.

---

Notice

1. Ensure pipette and tips are at the same temperature before use; immerse tip 2–3 mm below liquid surface
2. Avoid turning pipette upside down when tip is full; use pipette stand
3. Operate within specified volume range
4. Apply maintenance oil to sealing ring if unused for long periods
5. For disassembly, contact professional technician

---

Pipette and Tip Adaptation Table (from image OCR)

Non-filter Tips

Filter Tips

---
