Masterflex Ismatec® Pump Tubing, 3-Stop Microbore, Tygon® LMT-55, Avantor®

Designed for optimal operation in your Ismatec pumps.

• Precision extruded to tight tolerances for high repeatability, accuracy and reproducibility
• Global market leader in range of formulations for most extensive chemical compatibility
• Single-use custom lengths and configurations available to minimise downtime
• Regulatory approvals to match your unique application

To complete your Ismatec® pumping system, order three-stop color-coded tubing and extension tubing. Tubing comes in various formulations for almost any pumping application.

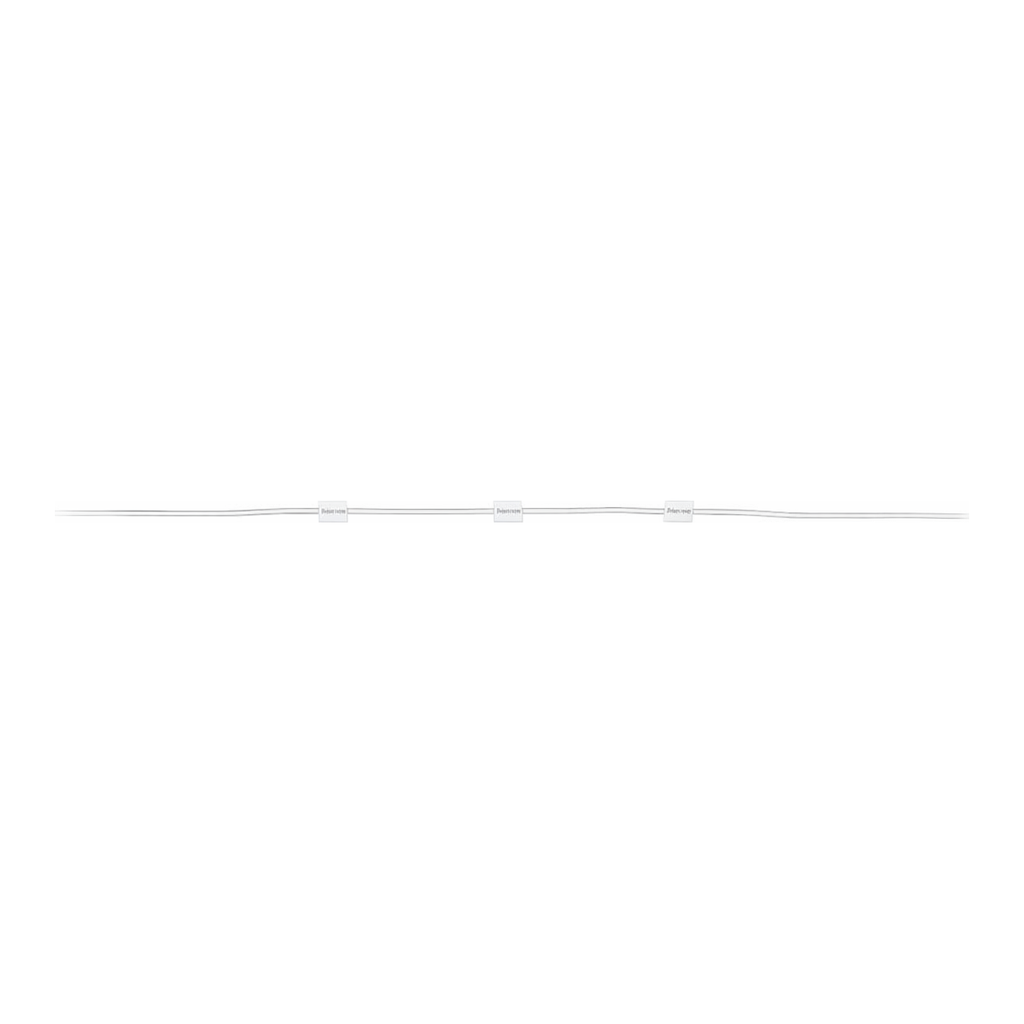

Three pre-attached tubing stops give you two sections—when one section of tubing fatigues, a fresh section is ready to use. The stops on the three-stop tubing are color-coded according to tubing ID. Use three-stop tubing with any of the Ismatec® minicartridge pumps and pump heads. Minicartridges withstand pressures up to 22 psi.

The Tygon® LMT-55 features a clear appearance, has a temperature range of -58 °F to 165 °F, and a smooth, polished inner wall prevents buildup.

The overall length of LMT-55 97619-series stop tubing is 16` (406 mm). The legacy Ismatec® stop tubing was 400 mm long.

Order extension tubing under Accessories. For technical assistance selecting tubing formulations and sizes, contact our Application Specialists.
