■ Spherically shaped 분해 용기로 열전달, 압력 안정성이 좋고 빠른 실행이 가능
■ 자동 점화, 자동 물 급수 및 배수, 산소 자동 채움 가능
■ 6개의 온도 센서로 온도를 모니터링
■ Inverted 도가니 홀더로 인해 손쉬운 시료 준비 가능
■ C6040 Calwin software 사용 가능
■ Protection class according to DIN EN 60529 (IP20)
■ 더 많은 Circulator 관련 정보는 여기를 참조하세요
■ IKA
| Cat. No |
Model |
Description |
| C30-05-046 |
10006663 |
C3000 isoperibol Package 1/10 |
| C30-05-048 |
10006664 |
C3000 isoperibol Package 1/12 |
| C30-05-049 |
10003633 |

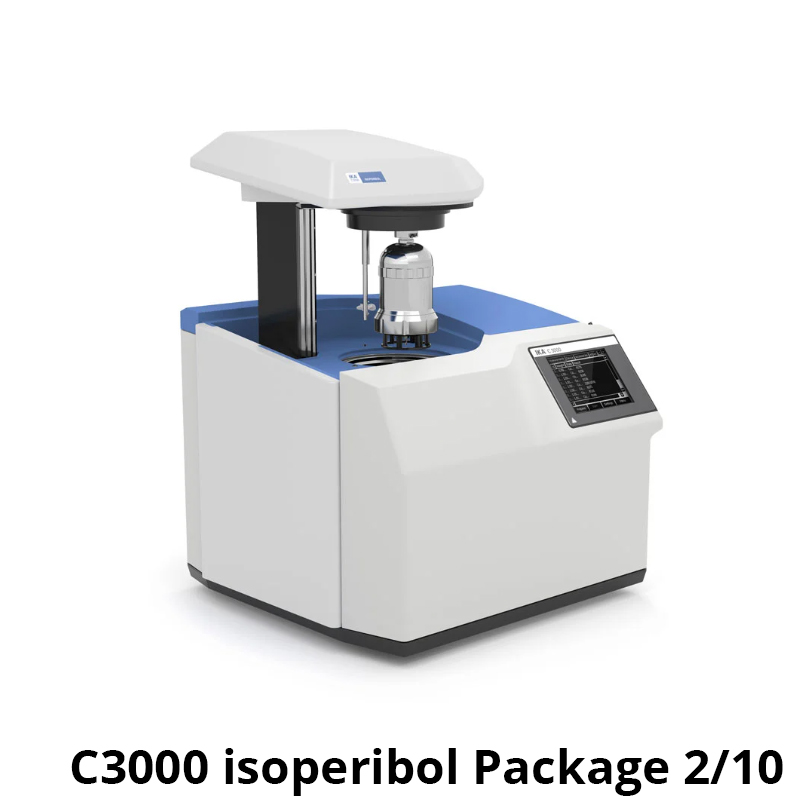

C3000 isoperibol Package 2/10 |
| C30-05-051 |
10003634 |
C3000 isoperibol Package 2/12 |
| Cat. No | | C30-05-046 | C30-05-048 | C30-05-049 | C30-05-051 |
| --- | --- | --- | --- | --- |
| Model | | 10006663 | 10006664 | 10003633 | 10003634 |
| --- | --- | --- | --- | --- |
| Decomposition Vessel | | C6010 Standard | C6012 Halogen Resistant | C6010 Standard | C6012 Halogen Resistant |
| Chiller | | RC 2 basic | | X | |
| Measuring Range max. | | 40,000 J / 9,560 cal | | | |
| Temperature Measurement resolution | | 0.0001 K | | | |
| Measuring mode | | dynamic / isoperibol | | | |
| Measuring Temperature | | 22°C / 25°C | | | |
| Measurements/h | dynamic | 6 | | | |
| isoperibol | 4 | | | |
| Reproducibility | dynamic | 0.15 %RSD | | | |
| isoperibol | 0.05 %RSD | | | |
| Working temperature | | 22 - 30 °C | | | |
| Oxygen operating pressure max. | | 40 bar | | | |
| Interface PC-Scale / Printer | | RS232 / USB | | | |
| Analysis according to | | ASTM D240 / ASTM D4809 / ASTM D5865 / ISO 1928 / GB T213 | | | |
| Weight | | 29 kg (C3000 Only) | | | |
| Dimension (W×D×H) | | 500 × 450 × 425 mm | | | |
| Enviromental Conditions | | Temp. 20 - 30 °C / Humidity 80% | | | |
| Power Supply | | 220 - 240 V / 50/60 Hz / 1700 W | | | |
| Cat. No |
Model |
Description |
| B04-05-101 |
4171000 |
RC 2 basic Circulators |
| B04-05-103 |
4173000 |
RC 2 control Circulators |
| Cat. No |
Model |
Description |
| C30-05-312 |
3770000 |
C6010 Standard Decomposition Vessel |
| C30-05-316 |
4504000 |
C6012 Halogen Resis Decomposition Vessel |
| C30-05-216 |
4500600 |
C1.5 Dot Printer |
| C30-05-320 |
4504100 |
C6030 Gas Washing Station |
| C30-05-324 |
4504200 |
C60.1012 Vessel Organizer |
| C30-05-294 |
4579700 |
C27 Calorimeter preparation set |
| C30-05-296 |
0750200 |
C29 Oxygen Pressure Regulator |
| C30-05-208 |
1605300 |
C21 Pelleting Press |
| C30-05-628 |
7145000 |
C5020 Sample Rack |
| C30-05-728 |
3197200 |
C25 Pressure Regulation Valve |
| C30-05-218 |
4040500 |
C6040 Calwin software |
| C30-05-636 |
3036000 |
C5041.10 Connection Cable |
| C30-05-210 |
4579800 |
C5010.8 Small Crucible holder |
| C30-05-678 |
3055900 |
C5010.5 Big Crucible Holder |
