■ 최대 정밀도 6자리의 정확성
■ One Click 조작의 대형터치스크린으로 사용하기 편리함
■ BubbleCheck™ 기능으로 부적합한 샘플로 인한 측정오류 방지
■ 사용자 관리 시스템으로 여러명이 사용해도 데이타를 보호
■ 스마트 오류감지로 완벽한 밀도측정과 빠른 온도제어로 신뢰할 수 있는 결과 확인
■ 밀도계와 굴절계를 결합하여 동시 측정이 가능하고 공간을 절약.
■ 점도가 높거나 어려운 샘플도 사용가능 (예 : 꿀, 파라핀 등)
■ 21 CFR Part 11 준수한 Labx PC 소프트웨어

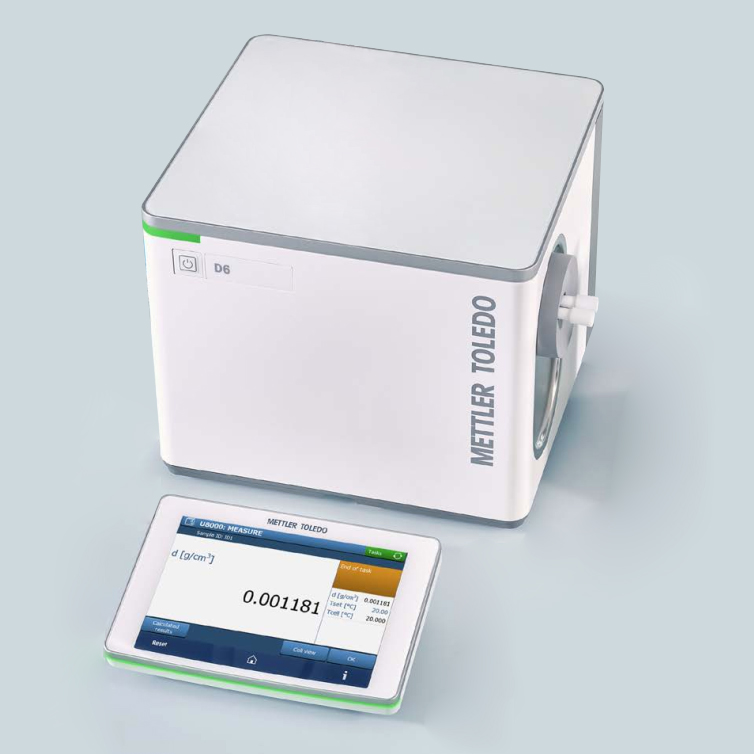

■ Mettler-Toledo
| Cat. No. |
Model |
Measuring range |
Resolution |
| D06-162-021 |
D4 |
0.000~3.000 g/cm3 |
0.0001 g/cm3 |
| D06-162-023 |
D5 |
0.00001 g/cm3 |
|
| D06-162-025 |
D6 |
0.000001 g/cm3 |
|
| Cat. No. | | D06-162-021 | D06-162-023 | D06-162-025 |
| --- | --- | --- | --- |
| Model | | D4 | D5 | D6 |
| --- | --- | --- | --- |
| Density (g/cm3) | Measuring range | 0.000–3.000 | | |
| Accuracy | ±0.0001 | ±0.00005 | ±0.000005 |
| Repeatability | ±0.00005 | ±0.000005 | ±0.000001 |
| Resolution | 0.0001 | 0.00001 | 0.000001 |
| Temperature (°C) | Range | 0–95 (32–203 °F) | | |
| Accuracy | ±0.03 | ±0.02 | ±0.01 |
| Measurement scales
(Integrated concentration Tables and functions) | | Specific gravity, Twaddell, light and heavy Baumè, acid/base scales, chemicals, salt, freezing point scales
Alcohol: OIML, AOAC, Proof Degree, HM C&E, Gay Lussac
Sugar: Plato, Brix (Emmerich, NBS 113), HFCS 42/55, Invert Sugar, KMW, Oechsle, Babo
Petro: API degrees and gravity tables for crude oils, refined products and lubricants Up to 30 user-defined concentration tables (can be entered as tables or formulas) | | |
| Internal results storage | | Maximum number of results: 200 | | |
| Included features | | Integrated pressure sensor, Viscosity correction, Automatic sample detection, Automatic bubble detection (BubbleCheck™), Video view, Color-coded results identification, User management, Password protection | | |
| Languages | | English, Chinese, German, Spanish, French, Italian, Portuguese, Russian, Polish | | |
| Display/User interface | | 7` display with color touchscreen | | |
| Connectivity | | 3 × USB host (printer, memory stick, barcode reader, hub, keyboard, mouse); USB client (PC Software); Ethernet (Network and PC Software); RS232 (Automation units); CAN (Multiple LevelSens); HDMI (Terminal) | | |
| PC software | | LabX® PC Software | | |
| Dimensions (W × H × D) mm | | 267 × 210 × 269 | | |
| Weight | | 17.5 kg | | |
*Accessories
| Cat. No. |
Model |
Description |
| D06-162-137 |
11153130 |
LabX Liquiphysics Express LabX PC software – Express |
| D06-162-139 |
11153131 |
LabX Liquiphysics Server LabX PC software – Server |
| D06-162-141 |
11153250 |
LabX Instrument License for 1 Liquiphysics LabX PC software – Instrument license |
| D06-162-517 |
11132601 |
ErgoSens for Hands-free Operation |
| D06-162-145 |
51109853 |
LevelSens non-aqueous including attachment strap a Waste sensor – LevelSens |
| D06-162-521 |
51192107 |
LogStraight Fingerprint Reader |
| D06-162-149 |
30474899 |
Drying Pump DryPro Drying pump – DryPro |
| D06-162-153 |
30474907 |
SV3 SPR200 Bundle SV3 SPR200 Bundle |
| M06-162-520 |
30702998 |
Compact Printer USB-P25/02 |
| B02-162-726 |
P-56RUE |
Thermal printer, RS232, USB, ethernet |
| B02-162-727 |
P-58RUE |
Printer Thermal |
| D06-162-157 |
51338010 |
Water density / refractive index combined standard (9 mL) Certified standard – Water |
| D06-162-159 |
51338012 |
Dodecane density / refractive index combined standard (9 mL) Certified standard – Dodecane |
| D06-162-161 |
51338013 |
2,4-dichlorotoluene density / refractive index combined standard (9 mL) Certified standard – Dichlorotoluene |
| D06-162-163 |
51338014 |
1-bromonaphthalene density / refractive index combined standard (9 mL) Certified standard – Bromonaphthalene |
