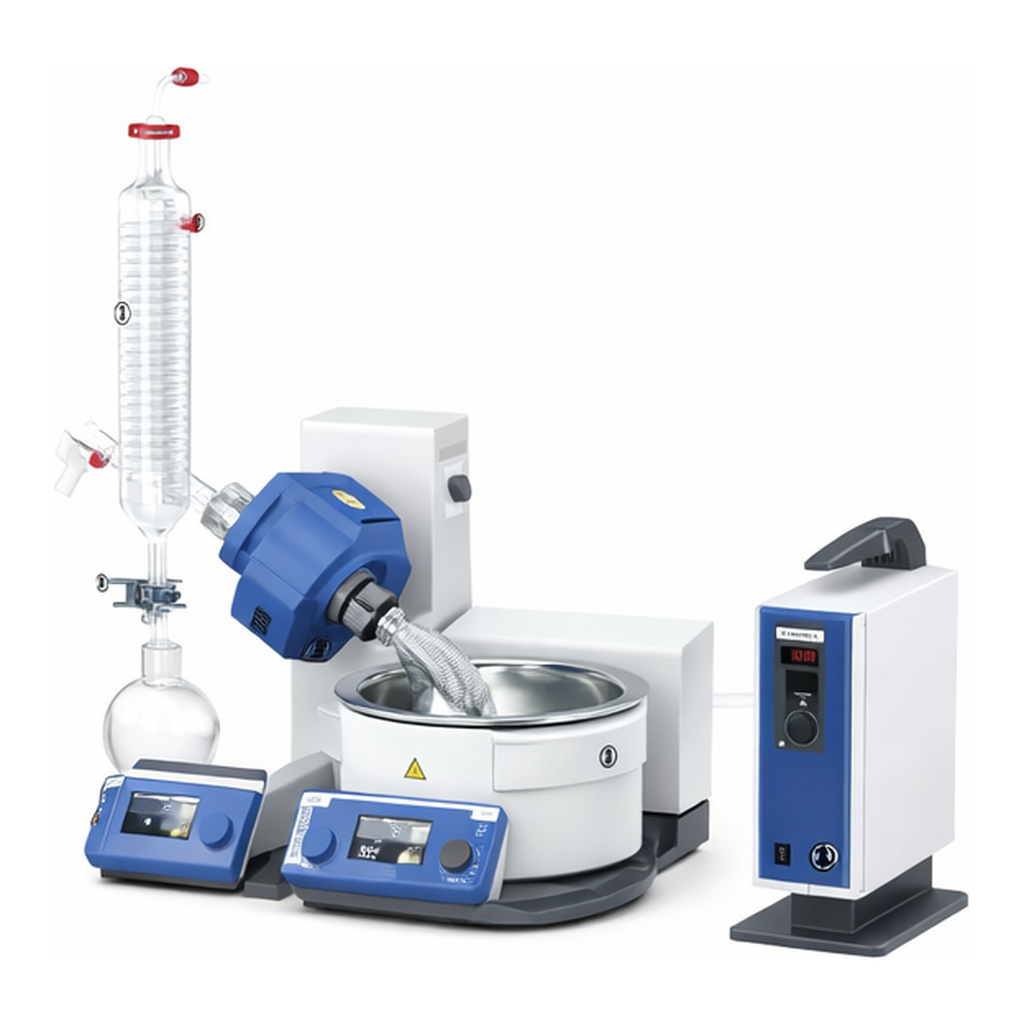

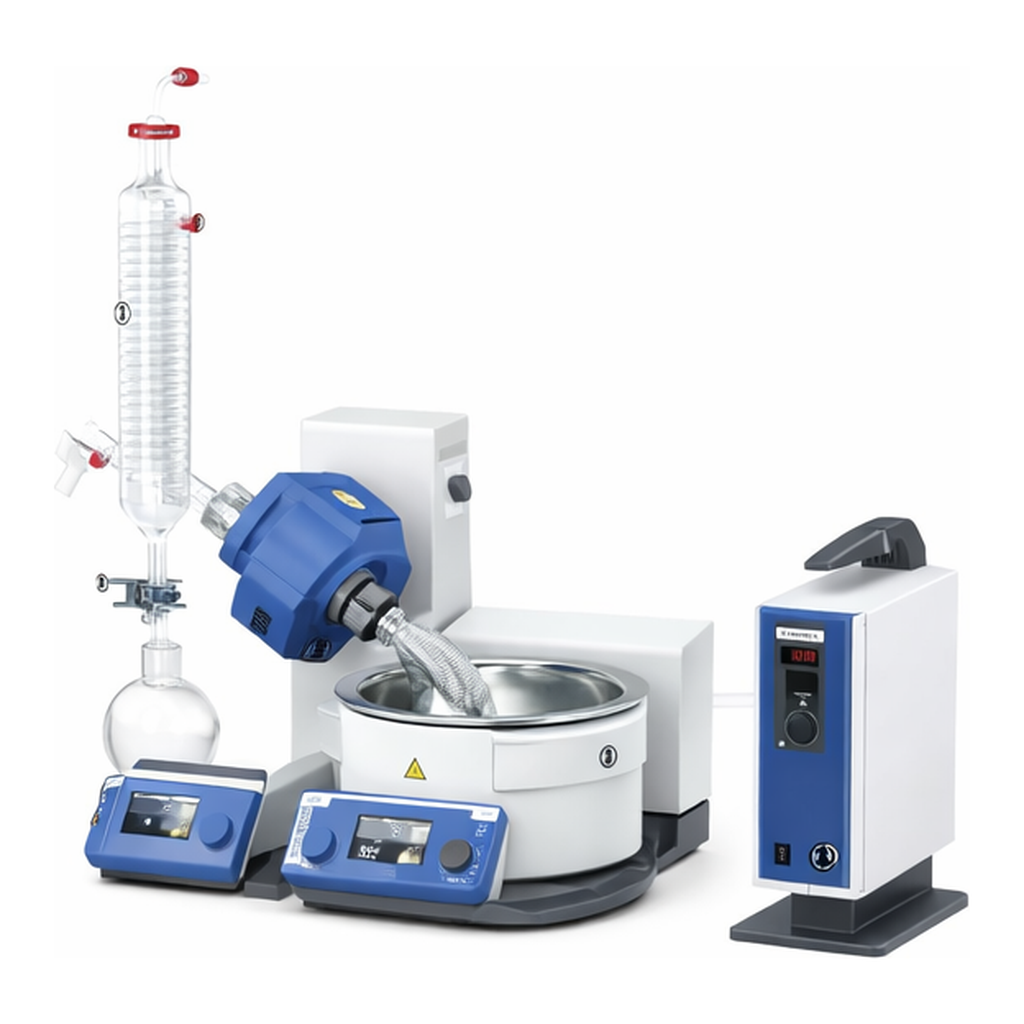

Lklab Korea IKA Evaporator / 회전 농축기, RV3, RV8, RV10

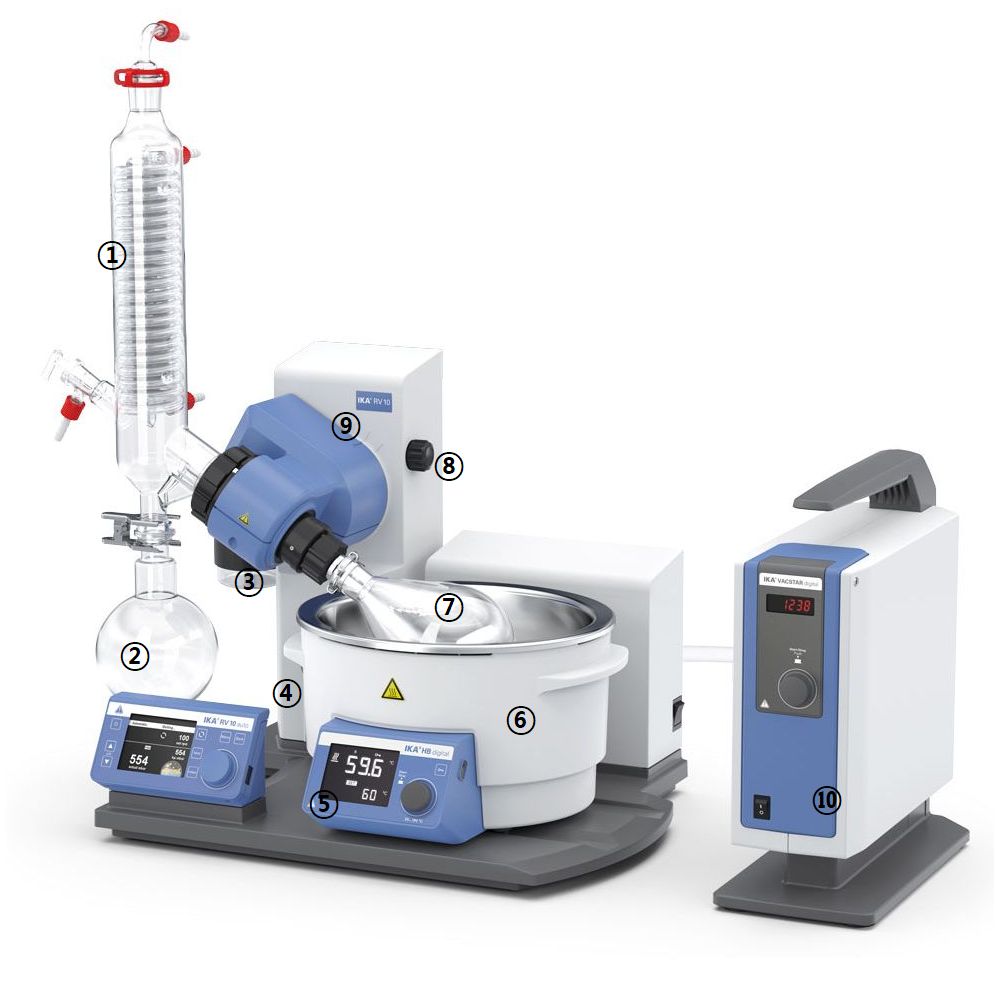

<사진 설명>
1. Diagonal or Vertical Glassware
2. Various Flask Size
3. Vacuum Connection Plus Woulf Bottle
4. Adjustable Height Limit
5. Two Displays for Optimal View
6. Heating Bath
7. Can be moved by 150 mm to accommodate different flasks
8. Motorised Height - Adjustable Fit
9. Choice of Angle
- Ergonomic carrying handles on heating bath
- Lift raised automatically in case of power outage
- Highly solvent-resistant PTFE seal
10. Vacuum Pump - Vacstar Digital Pump
■ IKA

4 종류의 회전 농축기

● RV3
- 가열범위 상온 ~ 90℃
- RV10과 유리 냉각관 호환

● RV8
- RPM Digital Display
- 정밀 디지털 조절 방식의 Oil Bath
- 손 쉬운 수동 리프팅 방식

● RV10 Digital
- RPM, Timer Digital Display
- 정밀 디지털 조절 방식의 Oil Bath
- PC를 통한 데이터의 기록 및 원격제어

● RV10 Auto pro
- RV10 Auto에 Vacuum Pump가 포함되어져 있는 모델

Type V : Vertical Glassware (수직형 콘덴싱)
Type D : Diagonal Glassware (사선형 콘덴싱)
Type V-C : Vertical Glassware (필름 코팅된 수직형 콘덴싱)
Type D-C : Diagonal Glassware (필름 코팅된 사선형 콘텐싱)

/* standard table style */ .st-tablebox{ width:800px; max-width:800px; margin-bottom:10px; height:auto; border-top:#cdcdcd solid 3px;} .st-tablebox p{ line-height: 19px;} .st-tablebox th{ height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; font-family:Tahoma; font-weight:bold; text-align:center;} .st-tablebox td{ height:33px; font-size: 12px; color: #777; font-family:돋움; text-align:center;} .st-tablebox th,td{border-left:#cdcdcd solid 1px; border-bottom:#cdcdcd solid 1px;} .st-tablebox .tdfin{border-left:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox .trfinth{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 3px; } .st-tablebox .trfinth2{height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; line-height: 33px; font-family:Tahoma; font-weight:bold; text-align:center; border-bottom:#cdcdcd solid 3px; } .st-tablebox .trfinth3{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox .trfinth4{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; } .st-tablebox .trfin{border-bottom:#cdcdcd solid 3px; } .st-tablebox .trfin2{border-bottom:#cdcdcd solid 3px; border-right:#cdcdcd solid 1px;} /* standard table style 900 */ .st-tablebox900 { width:900px; max-width:900px; margin-bottom:10px; height:auto; border-top:#cdcdcd solid 3px;} .st-tablebox900 p{ line-height: 19px;} .st-tablebox900 th{ height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; font-family:Tahoma; font-weight:bold; text-align:center;} .st-tablebox900 td{ height:33px; font-size: 12px; color: #777; font-family:돋움; text-align:center;} .st-tablebox900 th,td{border-left:#cdcdcd solid 1px; border-bottom:#cdcdcd solid 1px;} .st-tablebox900 .tdfin{border-left:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox900 .trfinth{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 3px; } .st-tablebox900 .trfinth2{height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; line-height: 33px; font-family:Tahoma; font-weight:bold; text-align:center; border-bottom:#cdcdcd solid 3px; } .st-tablebox900 .trfinth3{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox900 .trfinth4{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; } .st-tablebox900 .trfin{border-bottom:#cdcdcd solid 3px; } .st-tablebox900 .trfin2{border-bottom:#cdcdcd solid 3px; border-right:#cdcdcd solid 1px;} /* 첨부파일 관련 스타일 */ .st-table_file td{border-left:#cdcdcd solid 0px; border-bottom:#cdcdcd solid 0px; }IKA Evaporator Specification

Drive	RV3	RV8	RV10 Digital	RV10 Auto pro
Type of cooling	V = Vertical, V-C = Vertical Coated, FLEX = Incl. Woulff Bottle, without Glassware
---	---	---	---	---
Cooling surface	1500 cm²
---	---	---	---	---
Speed Range	20~300 rpm	5~300 rpm	5~280 rpm	5~300 rpm
---	---	---	---	---
Speed Display	No	Digital
---	---	---	---	---
Rotate Speed Tolerance	-	± 1 rpm ( at < 100rpm) / ± 1 % ( at > 100rpm )
---	---	---	---	---
Reversible direction of rotation / Smooth Start	No		Yes
---	---	---	---	---
Head Angle Adjustable	No	0°- 45°
---	---	---	---	---
Stroke Displacement	150 mm, Manual	120 mm, Manual	140 mm, Motorised
---	---	---	---	---
Vacuum Controller	X			O
---	---	---	---	---
Heating Temperature Range	Room Temp. ~ 99 °C	Room Temp. ~ 180 °C
---	---	---	---	---
Heat output	1400 W
---	---	---	---	---
Set temperature resolution [±K]	1
---	---	---	---	---
Timer	NO		YES
---	---	---	---	---
Dimensions w/o Glassware (w x h x d)	440 x 530 x 330 mm	510 x 490 x 345 mm	500 x 430 x 440	500 x 430 x 440
---	---	---	---	---
사용 외부 환경 조건	Ambient Temperature 5℃ ~ 40℃, Relative Humidity 80 %
---	---	---	---	---
Protection Class Acc. to DIN EN 60529	IP 20
---	---	---	---	---
Interface	NO	NO	RS 232, IR	RS 232, USB
---	---	---	---	---
Voltage & Frequency	100 - 240 V, 50/60 Hz
---	---	---	---	---
Required Accessory for an Existing Vacuum
---	---	---	---	---
Magnetic Valve In-house Vacuum	-	-	-	RV10.4001
---	---	---	---	---
Magnetic Valve Laboratory Vacuum	-	-	-	RV10.4002
---	---	---	---	---
Pump Control Incl. Magnetic Valve	-	-	-	RV10.4003
---	---	---	---	---
Accessory Recommended for Tap Water Connection
---	---	---	---	---
Magnetic Valve In-house Vacuum	-	-	-	RV10.5001
---	---	---	---	---
Magnetic Valve Laboratory Vacuum	-	-	-	RV10.5002
---	---	---	---	---
Pump Control Incl. Magnetic Valve	-	-	RV 10.5003	RV10.5003
---	---	---	---	---
Drive	HB eco	HB Digital
---	---	---	---	---
Temperature Display	Digital
---	---	---	---	---
Filling Volume	4 L
---	---	---	---	---
Setting Accuracy / Control Deviation	1 K / ± 1 K
---	---	---	---	---
Flask	Evaporating and Receiving 모두 2 L 까지 사용 가능
---	---	---	---	---

보급형 회전 농축기, RV3 with Oil Bath (HB eco)

Cat. No	Model	Glassware Type
E02-05-010	10003684	RV 3 V, 기본 수직형
E02-05-020	10003685	RV 3 V-C, 코팅 수직형
E02-05-030	10003331	RV 3 Flex, without Glassware
E02-05-040	10003324	RV 3 V with 29/32 Glassware
E02-05-045	10003328	RV 3 V-C with 29/32 Glassware
E02-05-047	10006363	RV 3 with Dry Ice Condenser
E02-05-049	10006362	RV 3 with Dry Ice Condenser, Coated

• ● 수동 리프트식 경제형 농축기(높이, 각도 조절 가능)
  ● 100°C까지 사용 가능한 4L 디지털 물 전용 가열수조
  ● 안전한 정지를 위한 수동식 리프트
  ● 잠금 기능 : 적색 지시등은 증기관이 잠겨 있지 않음을 표시
  ● Push-off 방식의 플라스크 클램핑으로 간편하게 증발 플라스크 교체 가능
  ● 높은 냉각 효율과 적은 공간을 차지하는 1500cm2 냉각면적의 콘덴서
  ● RV10 글라스웨어와 호환 가능

진공 조절식 회전 농축기, RV3 with Oil Bath (HB eco) & Vacuum Controller & Vacuum Pump & RC2 Lite Circulator

Cat. No	Model	Glassware Type
E02-05-033	10012015	RV 3 pro V with Pump

• ●VACSTAR Digital Pump
  - Chemical Resistant Membrane
  - 유량 22 L/min, 최대진공 2 mbar
  - Size : w150 x h375 x d370mm
  - Material in Contact with Medium : Al2O3, PTFE, FFPM, PPS, NBR

보급형 회전 농축기, RV8 with Digital Oil Bath (HB Digital)

Cat. No	Model	Glassware Type
E02-05-650	10000387	RV8 V, 기본 수직형
E02-05-655	10000392	RV8 V-C, 코팅 수직형
E02-05-660	10000393	RV8 Flex, without Glassware
E02-05-690	10003482	RV8 V with 29/32 Glassware
E02-05-695	10003485	RV8 V-C with 29/32 Glassware
E02-05-697	10006361	RV8 with Dry Ice Condenser
E02-05-699	10006360	RV8 with Dry Ice Condenser, Coated

• ● 수동 리프트식 경제형 농축기(높이, 각도 조절 가능)
  ● 180°C까지 사용 가능한 4L 가열수조
  ● 전원 공급 중단시 사용자 안전을 위해 자동 리프트 위치 복원 기능
  ● Woulff bottle 포함 구성
  ● 가열수조 온도 잠금을 위한 잠금 버튼
  ● 선명하고 유리코팅된 흑백 디스플레이 화면
  ● 잠금 기능 : 적색 지시등은 증기관이 잠겨 있지 않음을 표시
  ● 글라스웨어의 정확한 위치를 설정을 위한 수동식 리프트
  ● 무단 속도 설정이 가능한 다이얼 및 속도 표시
  ● Push-off 방식의 플라스크 클램핑으로 간편하게 증발 플라스크 교체 가능
  ● 높은 냉각 효율과 적은 공간을 차지하는 1500cm2 냉각면적의 콘덴서

진공 조절식 회전 농축기, RV8 with Oil Bath (HB Digital) & Vacuum Controller & Vacuum Pump & RC2 Lite Circulator

Cat. No	Model	Glassware Type
E02-05-658	10012016	RV 8 pro V with Pump

• ●VACSTAR Digital Pump
  - Chemical Resistant Membrane
  - 유량 22 L/min, 최대진공 2 mbar
  - Size : w150 x h375 x d370mm
  - Material in Contact with Medium : Al2O3, PTFE, FFPM, PPS, NBR

디지털 회전 농축기, RV10 Digital with Digital Oil Bath (HB Digital)

Cat. No	Model	Glassware Type
E02-05-250	8041400	RV10 Digital V, 기본 수직형
E02-05-255	8041600	RV10 Digital V-C, 코팅 수직형
E02-05-200	8041200	RV10 Digital Flex, without Glassware
E02-05-240	10004799	RV10 Digital V with 29/32 Glassware
E02-05-245	10004802	RV10 Digital V-C with 29/32 Glassware
E02-05-247	10006365	RV10 Digital with Dry Ice Condenser
E02-05-249	10006364	RV10 Digital with Dry Ice Condenser, Coated

• ● 탈취방식에 의한 장치의 편리한 탈부착
  ● 정방향, 역방향으로 Flask 회전 주기적 전환작동 가능
  ● Flask 회전속도 디지털 표시 및 타이머 기능 탑재
  ● Flask 회전속도 : 5 ~ 280 rpm (Digital Display)
  ● 앞면에 위치한 인체공학적 Operator를 통한 안전하고 편리한 조작
  ● Main Controller와 별도로 독립적으로 작동 가능하고, 다양한 안전회로로 이루어진 Heatig Bath
  ● 불시에 전원이 Off 될 경우 Flask가 Heating Bath로부터 자동으로 상승하는 (140 mm) Safety Stop 기능
  ● Heating Bath 내 Flask의 위치를 자동인식하여 Flask의 깨짐 방지
  ● Bath의 손잡이가 내장된 Digital Oil Heating Bath
  ● Heating Bath의 온도가 Digital로 표시
  ● Heating Bath와 Drive Unit 사이의 적외선 데이터 전송방식
  ● Labworldsoft가 설치된 컴퓨터와 연결 가능한 RS232 Interface
  ● Labworldsoft 프로그램에 의한 자동 조작

진공 조절식 회전 농축기, RV10 Digital with Oil Bath (HB Digital) & Vacuum Controller & Vacuum Pump

Cat. No	Model	Glassware Type
E02-05-204	10012017	RV10 Digital pro V with Pump, RC2 Lite Ciculator
E02-05-207	10012018	RV10 Digital pro V with Pump, RC2 Green basic Circulator Double Complete

• ● Double Complete 구성 : RV10 Digital 2pcs, Vacuum Controller 2pcs, Digital Oil Bath 1pcs,Vacuum Pump 1pcs, RC2 Green basic Circulator 1pcs

진공 조절식 회전 농축기, RV10 Auto Pro with Digital Oil Bath (HB Digital) & Vacuum Controller &Vacuum Pump

Cat. No	Model	Glassware Type
E02-05-460	10000395	RV 10 Auto Pro V with Pump
E02-05-465	10000396	RV 10 Auto Pro V-C with Pump
E02-05-410	10000397	RV 10 Auto Pro FLEX with Pump, w/o Glassware
E02-05-470	10004815	RV 10 Auto Pro V with 29/32 Glassware
E02-05-475	10004812	RV 10 Auto Pro V-C with 29/32 Glassware
E02-05-413	10010504	RV 10 Auto Pro V-C Complete with 29/32 Glassware, Pump RC2 Lite Circulator 포함

• ● RV10 Digital 기능 기본 포함
  ● 통합 진공 컨트롤러
  ● 확장 가능한 Solvent Library (기본 40종)
  ● 안전하고 편리한 기기 조작을 위한 고대비, 고휘도 Color Graphic Display
  ● 끓는점 자동 인식 기능
  ● 개별 설정 저장 기능
  ● 자동 냉각수 관리
  ● 실험종료 후 Flask 내부 기체의 자동 Ventilation
  ● 실험종료 후 Heating Bath 자동 전원 차단
  ● IKA VACSTAR Digital Pump는 제공된 데이터 케이블을 통해 RV 10 auto 메인 드라이브에서 직접 제어
• ● VACSTAR Digital Pump
  - Chemical Resistant Membrane
  - 유량 22 L/min, 최대진공 2 mbar
  - Size w150 x h375 x d370mm
  - Material in Contact with Medium : Al2O3, PTFE, FFPM, PPS, NBR
