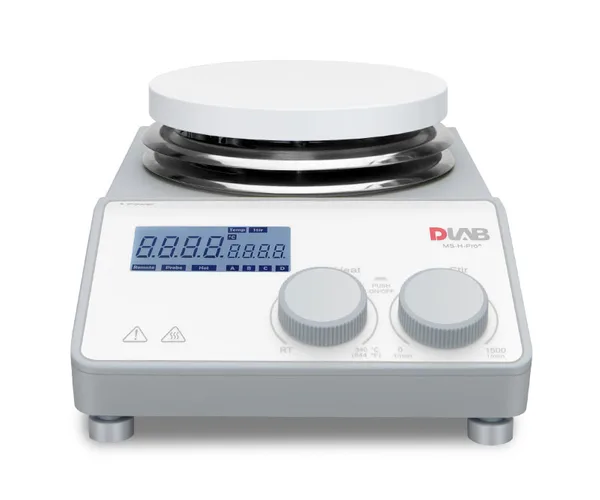

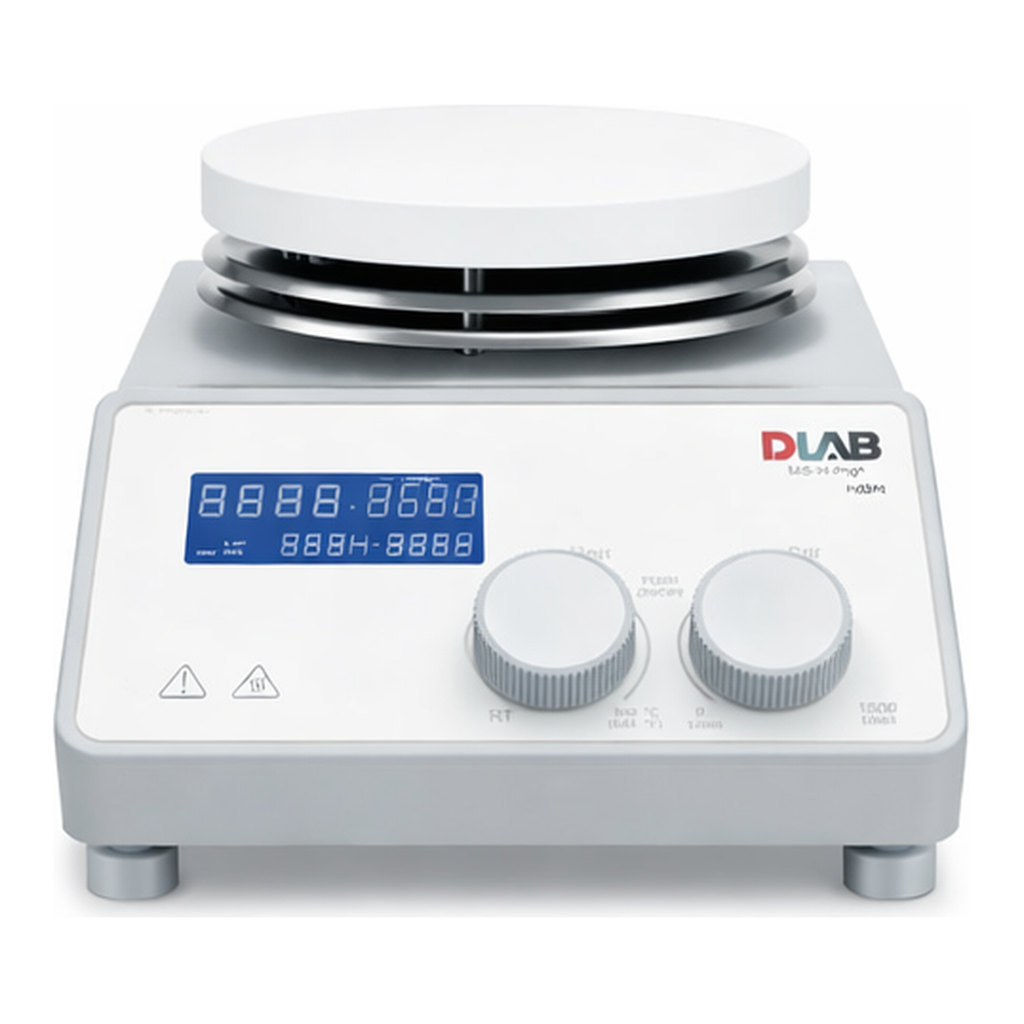

Lklab Korea Digital Hotplate Stirrer with Timer or without Timer / 디지털 가열 자력 교반기, MS-H-ProT or MS-H-Pro+ or MS-H-ProA

■ Digital Type의 가열 자력 교반기
■ MS-H-ProT 모델은 Timer 기능이 내장되어 있음

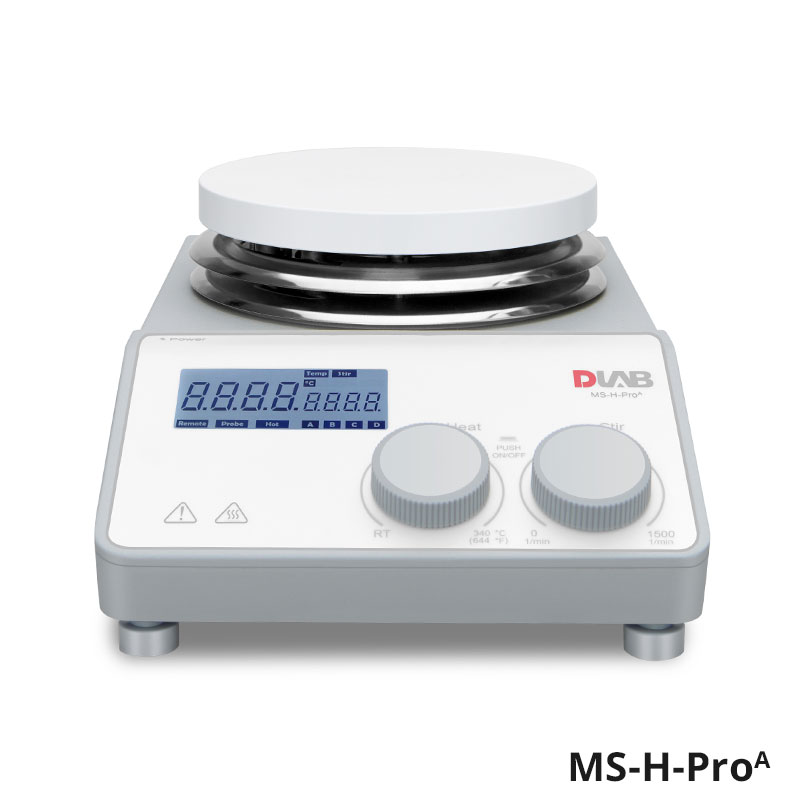

■ PID 조절 방식으로 정확한 온도 제어(MS-H-ProA)

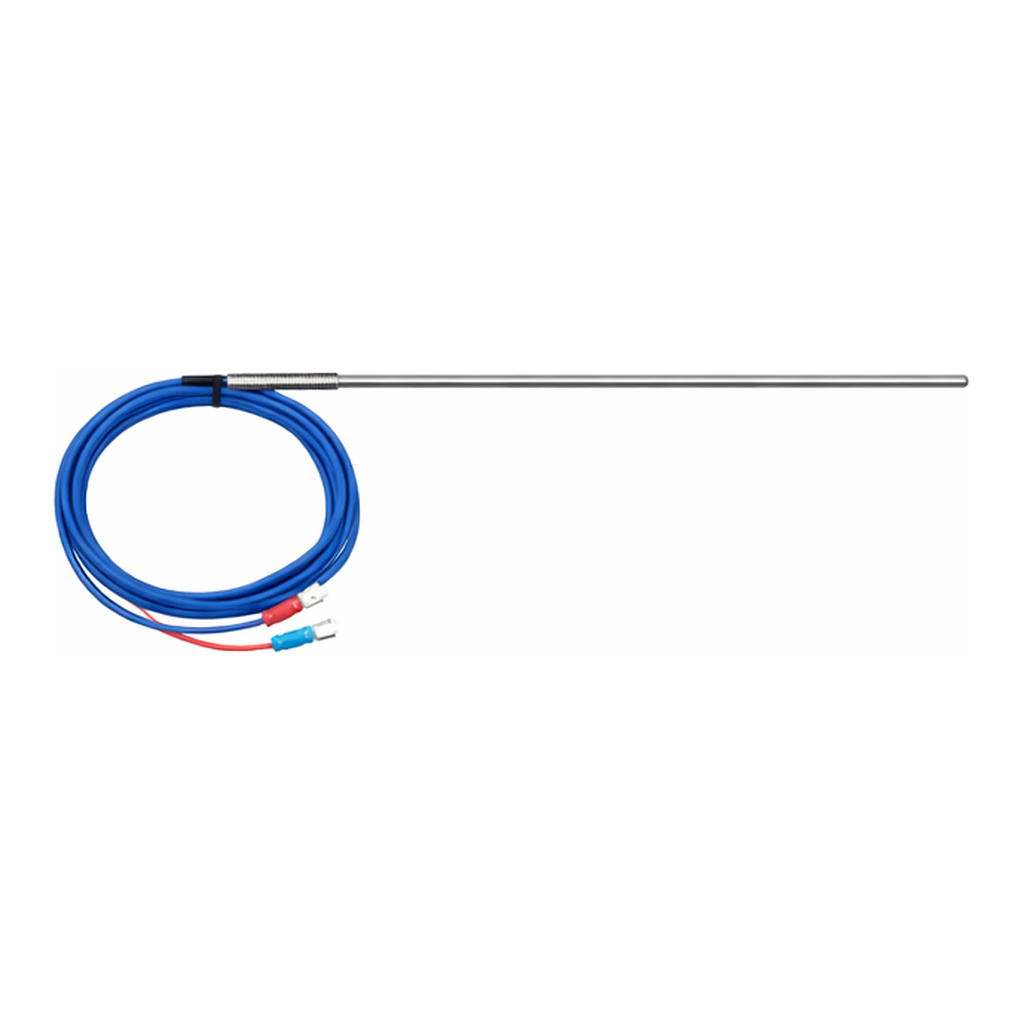

■ Temp. Sensor를 연결하여 외부시료의 정확한 온도제어가 가능
■ Aluminum Block은 MS-H-ProA 에만 사용 가능
■ Bushing according to DIN 12878 for the use of contact thermometers
■ DLAB

/* standard table style */ .st-tablebox{ width:800px; max-width:800px; margin-bottom:10px; height:auto; border-top:#cdcdcd solid 3px;} .st-tablebox p{ line-height: 19px;} .st-tablebox th{ height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; font-family:Tahoma; font-weight:bold; text-align:center;} .st-tablebox td{ height:33px; font-size: 12px; color: #777; font-family:돋움; text-align:center;} .st-tablebox th,td{border-left:#cdcdcd solid 1px; border-bottom:#cdcdcd solid 1px;} .st-tablebox .tdfin{border-left:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox .trfinth{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 3px; } .st-tablebox .trfinth2{height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; line-height: 33px; font-family:Tahoma; font-weight:bold; text-align:center; border-bottom:#cdcdcd solid 3px; } .st-tablebox .trfinth3{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox .trfinth4{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; } .st-tablebox .trfin{border-bottom:#cdcdcd solid 3px; } .st-tablebox .trfin2{border-bottom:#cdcdcd solid 3px; border-right:#cdcdcd solid 1px;} /* standard table style 900 */ .st-tablebox900 { width:900px; max-width:900px; margin-bottom:10px; height:auto; border-top:#cdcdcd solid 3px;} .st-tablebox900 p{ line-height: 19px;} .st-tablebox900 th{ height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; font-family:Tahoma; font-weight:bold; text-align:center;} .st-tablebox900 td{ height:33px; font-size: 12px; color: #777; font-family:돋움; text-align:center;} .st-tablebox900 th,td{border-left:#cdcdcd solid 1px; border-bottom:#cdcdcd solid 1px;} .st-tablebox900 .tdfin{border-left:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox900 .trfinth{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 3px; } .st-tablebox900 .trfinth2{height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; line-height: 33px; font-family:Tahoma; font-weight:bold; text-align:center; border-bottom:#cdcdcd solid 3px; } .st-tablebox900 .trfinth3{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox900 .trfinth4{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; } .st-tablebox900 .trfin{border-bottom:#cdcdcd solid 3px; } .st-tablebox900 .trfin2{border-bottom:#cdcdcd solid 3px; border-right:#cdcdcd solid 1px;} /* 첨부파일 관련 스타일 */ .st-table_file td{border-left:#cdcdcd solid 0px; border-bottom:#cdcdcd solid 0px; }

| | | | | |
| --- | --- | --- | --- | --- |상세 규격 표
| Cat. No | Model | 용량 | Plate Size | Timer |
| --- | --- | --- | --- | --- |
| H03-238-217 | MS-H-ProT | 20 L | Φ135 mm | Yes |
| H03-238-219 | MS-H-ProT Package | Temp. Sensor, Support Kit 포함 | | |
| H03-238-211 | MS-H-Pro+ | 20 L | Φ135 mm | No |
| H03-238-215 | MS-H-Pro+ Package | Temp. Sensor, Support Kit 포함 | | |
| H03-238-230 | MS-H-ProA | 20L | Φ135 mm | No |
| H03-238-232 | MS-H-ProA Package | Temp. Sensor, Support Kit 포함 | | |

| | | | |
| --- | --- | --- | --- |상세 규격 표
| Model | MS-H-ProT | MS-H-Pro+ | MS-H-ProA |
| --- | --- | --- | --- |
| Timer Function | Yes ( 1 min to 99 hr 59 min ) | No | No |
| --- | --- | --- | --- |
| Motor Type | Brushless DC motor | | |
| --- | --- | --- | --- |
| Stirring Quantity (H2O) | 20 L | | |
| --- | --- | --- | --- |
| Motor Rating | Input 18 W / Output 10 W | | |
| --- | --- | --- | --- |
| Speed Range / Resolution | 100 ~ 1500 rpm / ±1 rpm | | |
| --- | --- | --- | --- |
| Heating Output / Rate (H2O) | 550 W / 6 k/min | | 600 W |
| --- | --- | --- | --- |
| Temp. Range | RT-340℃ | | |
| --- | --- | --- | --- |
| Temp. Accuracy | ±1 ℃ ( Control Accu. w/ Sensor : ±0.2 ℃ ) | | |
| --- | --- | --- | --- |
| Display | LCD ( Temperature & Speed ) | | |
| --- | --- | --- | --- |
| Adjustable Safety Circuit | 100 ~ 350℃ | | |
| --- | --- | --- | --- |
| Plate Size | Φ135 mm / Ceramic Coated Stainless Steel | | Φ135 mm / Ceramic Coated Aluminum |
| --- | --- | --- | --- |
| Data Connection | RS232 | | |
| --- | --- | --- | --- |
| Hot Warning | 50℃ | | |
| --- | --- | --- | --- |
| Size | w160×d280×h85 mm / 2.8 kg | | w280×d160×h100 mm / 2.8 kg |
| --- | --- | --- | --- |
| Power | 230V, 50/60 Hz, 550 W | | 230V, 50/60 Hz, 600 W |

Spare Accessory

* Support Kit 구성품 : Support Rod (H03-238-578 ), Boss Head Clamp (H03-238-590), Holding Rod (H03-238-596)
