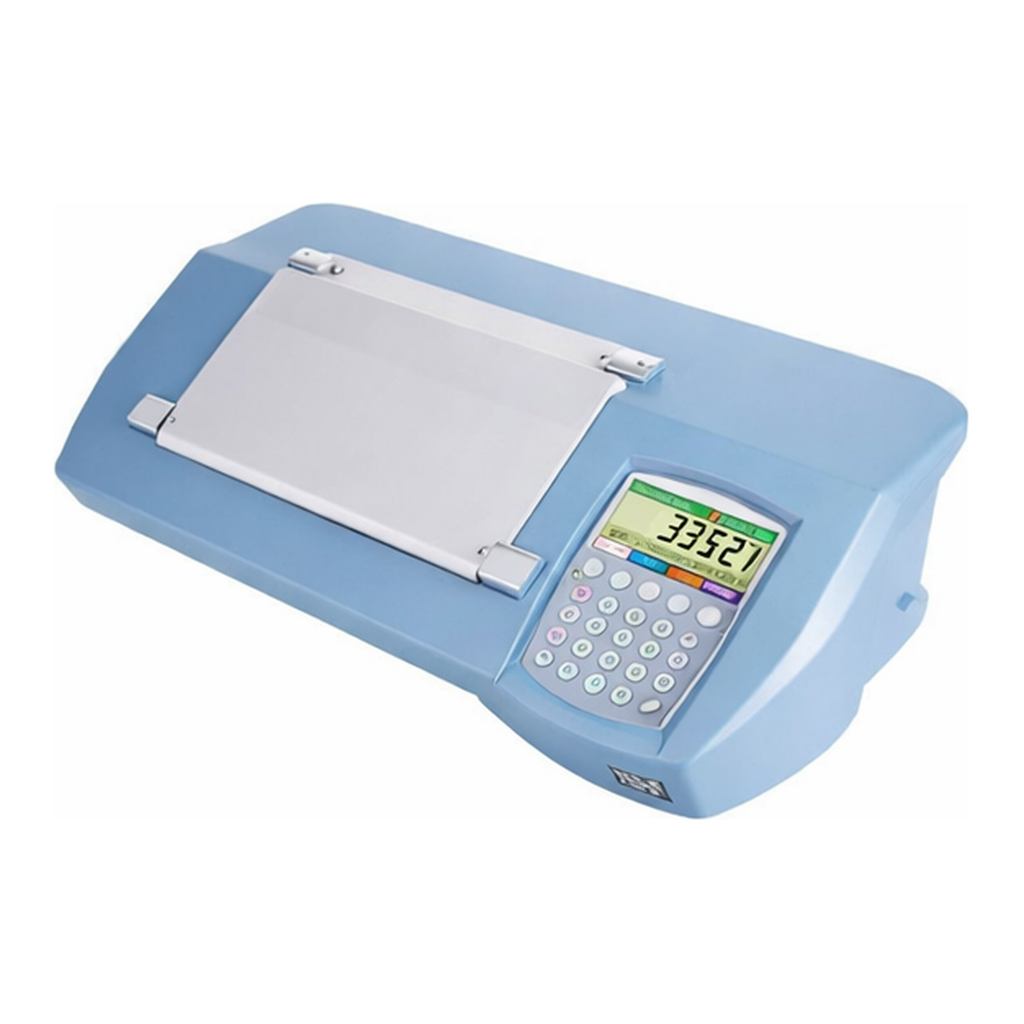

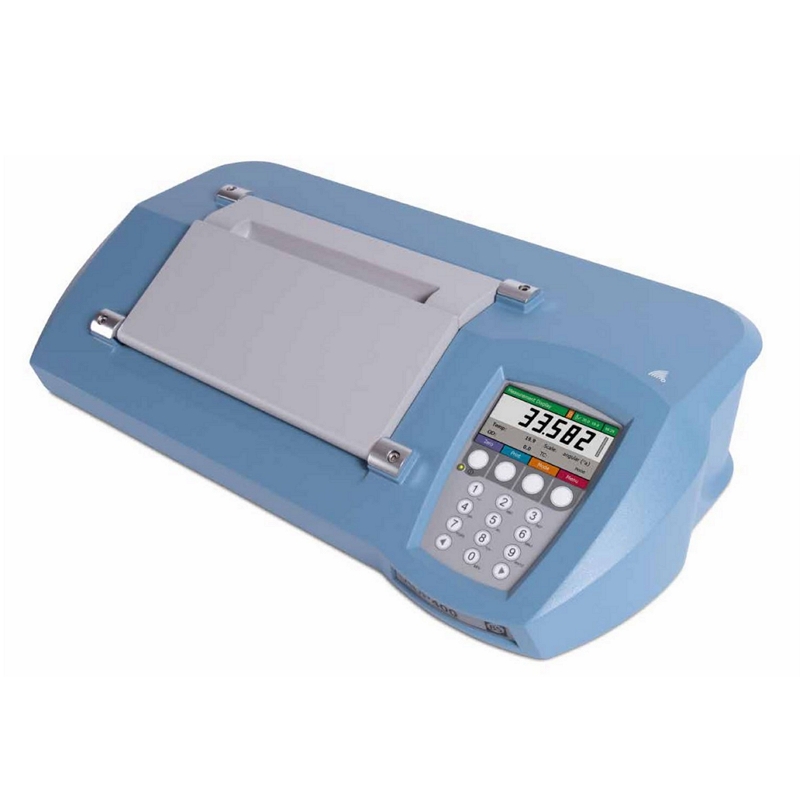

■ 전자동 편광계로 설탕, 식품, 화학, 제약 및 기타 많은 분야에 사용되어지고 있음
■ Ideal for use within laboratories where compliance with Pharmacopoeia is required.
■ Continuous Mode 와 Sigle Shot Mode 선택 가능
■ Continuous 모드에서는 설정된 시간 동안 판독값이 측정되고 해당 기간이 끝나면 안정된 결과가 표시됨
■ Sigle Shot 모드는 작업자의 해석 없이 이산 값이 제공되는 제약 응용 분야에 이상적임
■ With low maintenance LED light source
■ 4인치 고화질 디스플레이가 장착, 8000개 이상의 측정값과 기록된 기기 구성 로그를 저장, LIMS 또는 보안 PDF로 출력가능
■ 워터베스와 함께 사용하여 온도를 제어 함
■ Standard ICUMSA tubes (200mm 까지 사용 가능)
■ FDA 규정 21 CFR Part 11 또는 GLP를 준수함
■ Conforms to USP/EP/BP/JP (@589nm)
■ Bellingham+Stanley
| Cat. No. |
Model |
Angular Degrees (°A) |
International Sugar Scale (°Z) |
| P07-105-211 |
ADP-430 |
-355 to +355 |
-225 to +225 |
| P07-105-214 |
ADP-450(Peltier) |
|
|
| Cat. No. | | P07-105-211 | P07-105-214 |
| --- | --- | --- |
| Model | | ADP-430 | ADP-450 (Peltier) |
| --- | --- | --- |
| Resolution | Angular Degrees (°A) | 0.01/0.001 (selectable) | |
| International Sugar Scale (°Z) |
| Accuracy | Angular Degrees (°A) | ± 0.010 | |
| International Sugar Scale (°Z) | ± 0.030 | |
| Precision (Reproducibility) | Angular Degrees (°A) | ± 0.002 | |
| International Sugar Scale (°Z) | ± 0.005 | |
| User Scales & Methods Library | | PHR-MEAN statistical, Specific Rotation,
Concentration, Inversion (A-B), Invert Sugar, User Defined. | |
| Reading Time | | Continuous measurement and display or single shot (selectable) | |
| Tube Length | | 10 to 200mm | |
| Sample Illumination | | Sodium (589nm) Light Emitting Diode (100,000+ hours) | |
| Beam Diameter | | 4mm | |
| Optical Density | | 0.0 to 3.0 OD | |
| Instrument Housing | | Polyurethane foam with aluminium base | |
| Interfaces | | 1 x USB (A), 1 x USB (B), 1 x Ethernet | |
| Power | | Instrument: 24 V DC, ±5%, <2A
External PSU: 100-240V, 50-60Hz (supplied) | |
| Humidity Range | | <90% RH (non condensing) | |
| Control | | None or external waterbath | Patented XPC Technology |
| Compensation | | None, ICUMSA, Quartz or User Defined | |
| Measuring Range | | 5-40 °C | 15-35 °C |
| Sensor Accuracy | | ± 0.1 °C | ± 0.1 °C |
| Stability | | Waterbath dependent | ± 0.2 °C |
| Stability Checks | | None/delay on single-shot | None/delay or SMART |
- *Polarimeter Tubes and Adaptors for ADP430 / ADP450
NEW
| Cat. No. |
Model |
Description |
| P07-105-151 |
35-90 |
Standard ICUMSA stainless steel polarimeter tube - 100mm |
| P07-105-154 |
35-91 |
Standard ICUMSA stainless steel polarimeter tube - 200mm |
| P07-105-157 |
35-95 |
XPC-100 tube adaptor for use with 100mm standard polarimeter tube |
| P07-105-160 |
35-96 |
XPC-200 tube adaptor for use with 200mm standard polarimeter tube |
| P07-105-163 |
35-97 |
XPC-LV adaptor ADP450 - used with low volume tubes 10-50mm |
| P07-105-166 |
35-98 |
XPC-QCP adaptor ADP450 - used with QCPs |
- * Dot Printer & Printer Cables, Serial Connector - Please Note: Cables supplied separately
| Cat. No. |
Model |
Description |
| P07-105-862 |
55-14 |
Dot Printer, ADP430/450은 54-02 & 55-85와 같이 사용 |
| P07-105-202 |
54-02 |
Serial Printer Cable for all ADP and RFM Models |
| P07-105-205 |
55-85 |
RS232 to USB converter with USB Cable |
- * Thermal Printer, USB & Serial Connector with USB Cable
| Cat. No. |
Model |
Description |
| P07-105-208 |
55-18 |
Thermal Printer, USB+Serial Connector |
