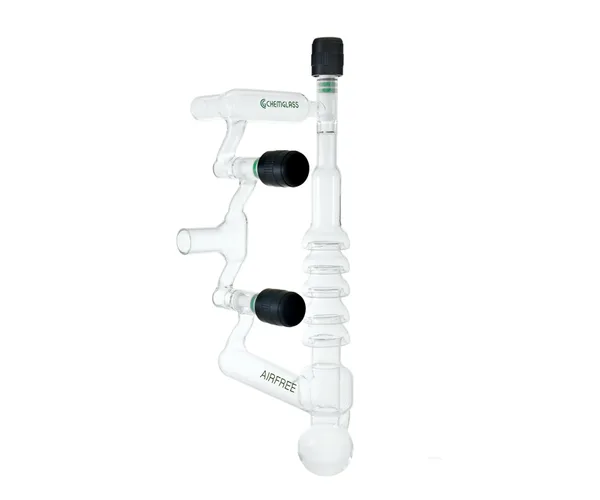

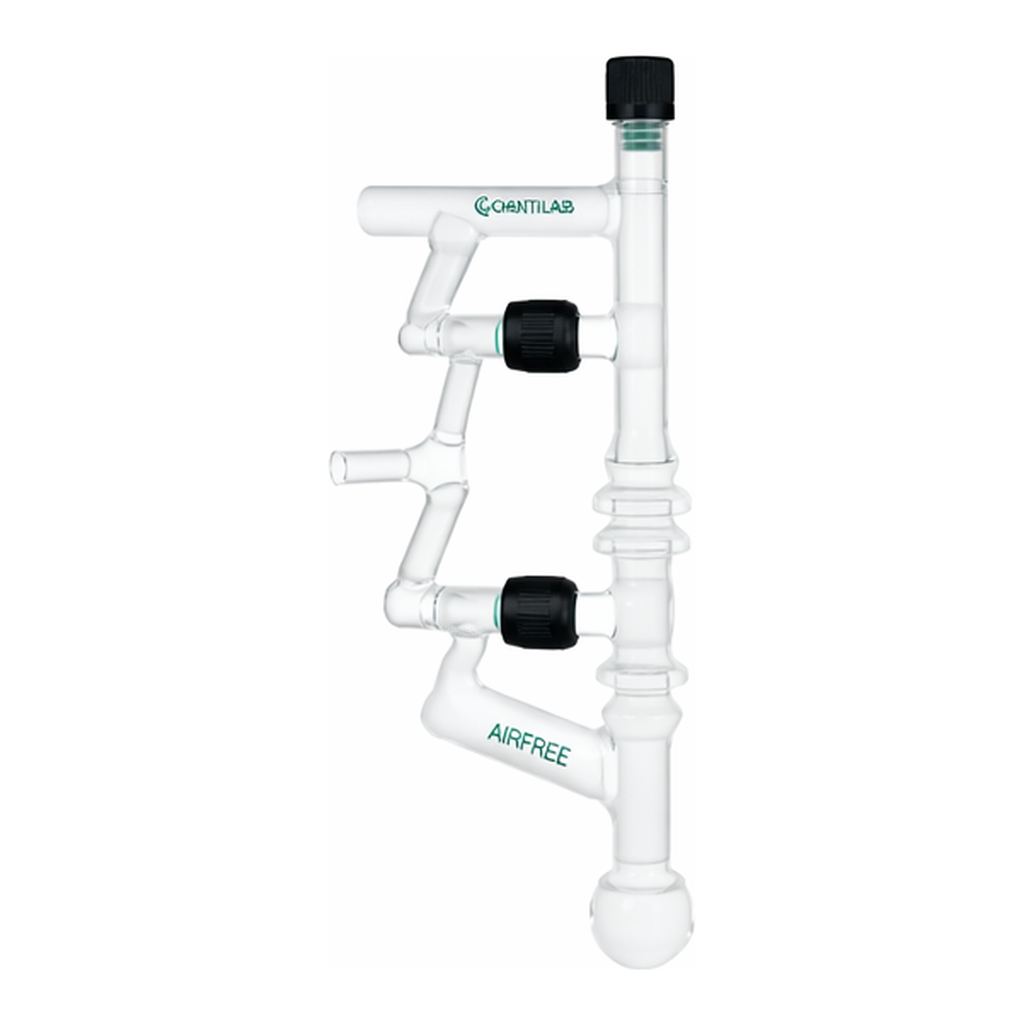

■ Chemglass Vacuum Manifold AF-0450에서 AF-0451과 같이 사용
- 단, Right Handed Oil Diffusion Pump는 Left Handed Manifold와 같이
사용되어야 함
■ 1차 펌프는 1×10-3Torr 와 8L/sec의 펌프유량을 가져야 함
■ 오일 가열을 위해 Mantle은 별도 구매 (100 ml R-B Flask용)
■ Supplied complete with a bypass which isolates the oil diffusion pump from the mechanical pump
while it rough pumps the system
■ Operation : In the Bypass Mode
- Valves A and B are closed isolating the diffusion pump from the system while valve C is open.
- Once the system has reached 1×10-5Torr, valve C is closed and A and B are opened,
restoring the diffusion pump to the pumping circuit.
Pump oil listed is Dow Corning #704.
■ 0 ~ 12 mm Chem-Vac® Valve & Chem-Cap®
■ Tubular Connection : od1`
■ Chemglass
|
|
|
| Cat. No. |
Model |
Description |
| --- |
--- |
--- |
| V08-132-920 |
AF-0460-01 |

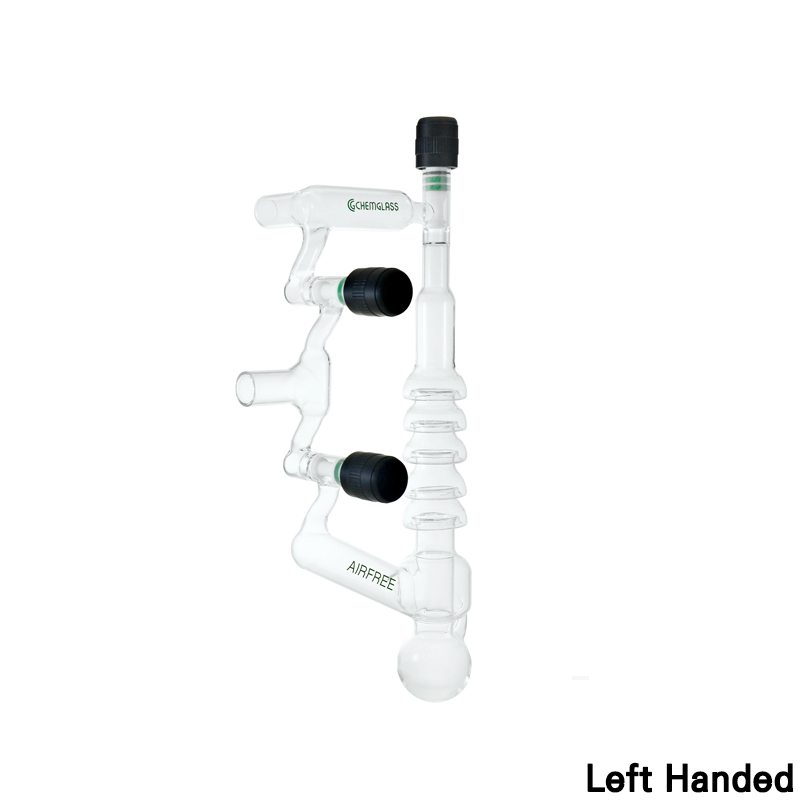

Left Handed |
| V08-132-924 |
AF-0460-02 |
Right Handed |
Optional & Spare Accessory
| Cat. No. |
Model |
Description |
| V08-132-938 |
AF-0066-16 |
Cajon® Connector od1” Tubing용, L152.4 mm |
| V08-132-942 |
AF-0066-17 |
Cajon® Connector od1” Tubing용, L304.8 mm |
| V08-132-946 |
AF-0460-10 |
Diffusion Pump Oil, 500 ml |
| V08-132-968 |
CG-961-03 |
0 ~ 12 mm Stem & Control Knob |
● Cajon® Connector : Critical Vacuum Application 용
