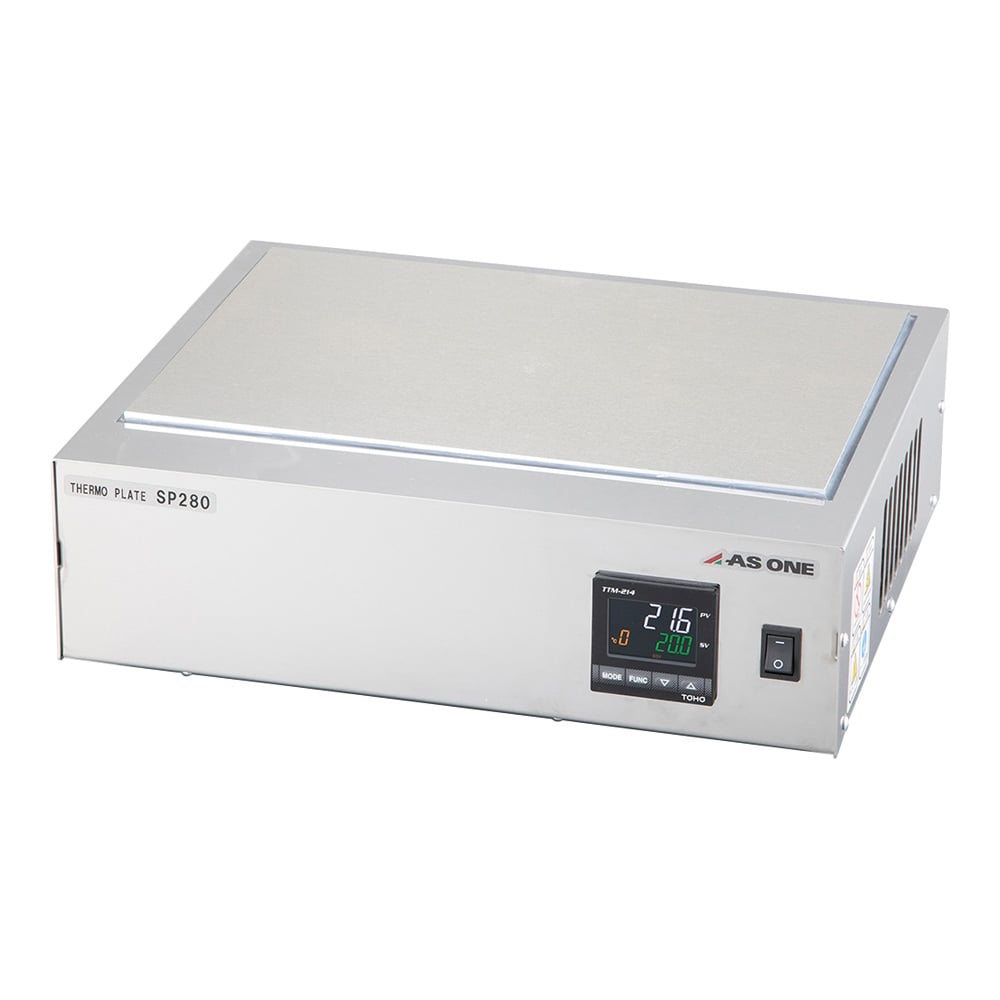

AS ONE 4-3765-01 Thermoplate　SP280

Features

• It is a two-stage digital display that shows the set value and the measured value at a glance.
• PID control of the Peltier element enables high-precision temperature control.
• It comes with a timer.
• The large tabletop makes it suitable for experiments with large samples and samples.
• Can handle both cooling and heating.
• Large plate cooling and heating type!

Spec

• Plate size (mm): 280 x 190
• Set temperature range (deg. C): 0 ~ 60 (room temperature/- 20 ~ 60 deg. C)
• Number of pieces: 1
• Temperature control method: Peltier unit
• Temperature control method: PID control
• Plate Material: Aluminum
• Timers: ON timer, OFF timer, SV start
• Load capacity: 5 kg
• External dimensions: 310 x 262 (including protrusions) x 110 mm
• Power supply: 100 VAC 50/60 Hz (P grounded cord/2.5 m)
• Maximum power consumption: 200 W
• Safety devices: overcurrent protection (glass tube fuse 5A), overrise protection (manual bimetallic return (operating temperature/70 deg C))
• Weight: 5 kg
• Accessory: acrylic cover
• *The set temperature should not be below 0 degrees Celsius.

Package size：370×370×270 mm　 [About Package size]
