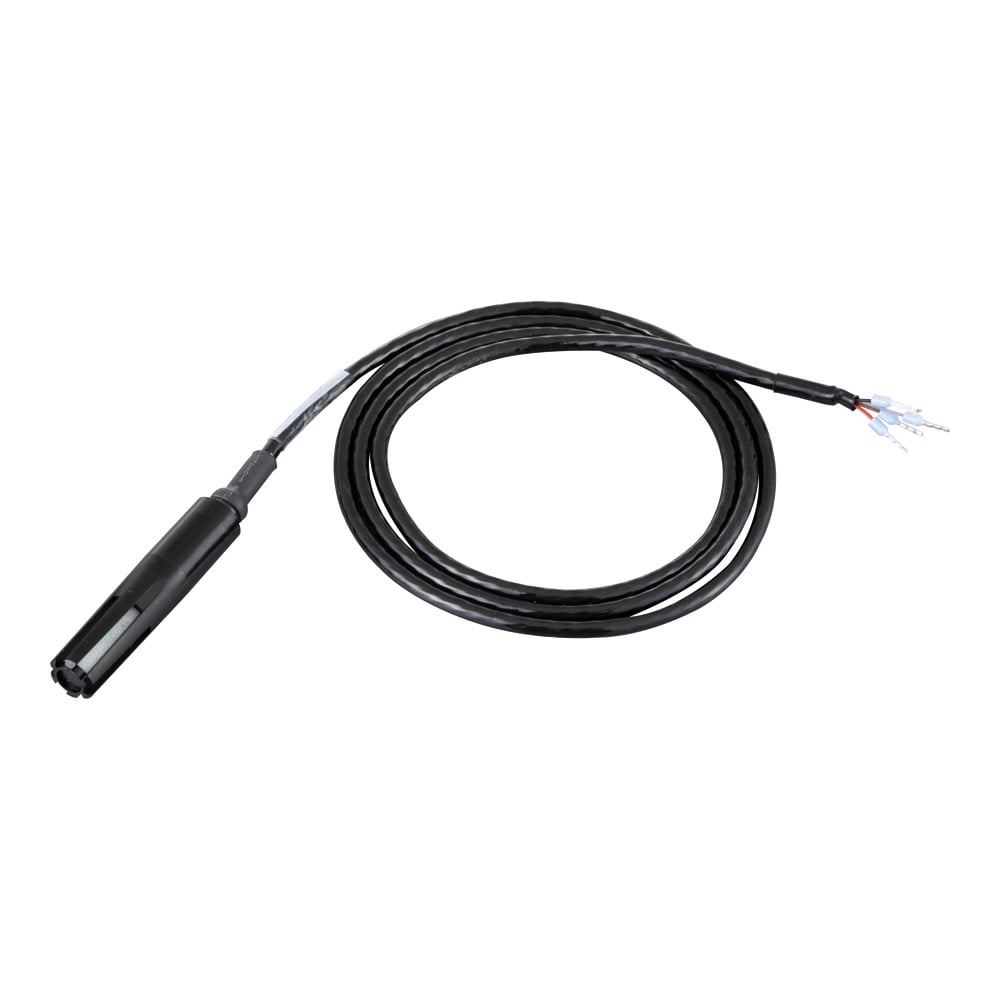

1 / 2AS ONE 4-3762-11-20 Temperature And Humidity Sensor Calibration Certaificate For Particle Monitors
상품 한눈에 보기
온도 및 습도 센서 교정 증명서 포함 제품으로, 입자 모니터용으로 사용됩니다. 청정 환경에서 오염 방지와 품질 향상에 효과적이며, 전용 소프트웨어로 데이터 기록이 가능합니다. 소형 설계로 설치가 용이합니다.
- 카탈로그번호
- 4-3762-11-20
- 브랜드
- AS ONE
- 카테고리
- Other Organics
- 판매단위
- pk
카탈로그
1개 옵션 · 카탈로그 번호를 클릭하면 복사됩니다회원가입 없이 바로 구매하세요
가입하지 않아도 비회원가로 구매하실 수 있습니다.
카탈로그 번호 · 상품 설명출고판매가담기
AS ONE 4-3762-11-20 4-3762-11-20 Temperature And Humidity Sensor Calibration Certaificate For Particle Monitors 【AXEL GLOBAL】ASONE made-to-order pk판매 단위 pk ·
재고 확인 필요
921,500원VAT 포함 1,013,650원
AS ONE · AS ONE 4-3762-11-20 Temperature And Humidity Sensor Calibration Certaificate For Particle Monitors
Temperature and Humidity Sensor Calibration Certificate for Particle Monitors
Features
- Plug-and-play connection to the PA03H or PA-5C terminals.
- Displays coarse particle concentration via four-level LED.
- Number density can be recorded using dedicated software.
- Optional temperature and humidity sensor (4-3762-11) can be connected for recording.
- Effective in preventing contamination, improving quality, and reducing defect rates in manufacturing processes.
- Compact design for space-saving installation.
Specifications
| 항목 | 내용 |
|---|---|
| Operating temperature & humidity range | 0 to +60°C, 0–100% RH (non-condensing) |
| Humidity sensing element | Capacitive humidity sensor |
| Humidity detection accuracy | ±3.0% RH (at 25°C, 20–80% RH) Accuracy based on company calibration chamber standard |
| Temperature sensing element | Temperature sensing LSI |
| Temperature detection accuracy | ±0.5°C (at 0–50°C) |
| Cable length | 1 m |
| Number of pieces | 1 |
| Measurement system | Light scattering system |
| Light source | Laser diode |
| Sampling method | Suction by fan |
| Detected particle size | 5 μm or more, 30 μm or more, 5/10/20/30/50 μm (reference values for 10/20/30/50 μm) |
| Recommended usage | Class 10,000–100,000 |
| Output units | pcs/5min (default), pcs/m³, pcs/cf, pcs/L (may change) |
| Sensor output value | Average value/5 min, total value/300 s |
| Data update time | 1 s |
| Power supply | 24 VDC (AC adapter included) |
| Output communication | Alarm output, RS485, analog (voltage) output, Ethernet, Wi-Fi |
| Calibration | Done only for temperature and humidity sensor |
| Proof of Calibration | Company original service |
| Usage note | Use in a clean atmosphere |
