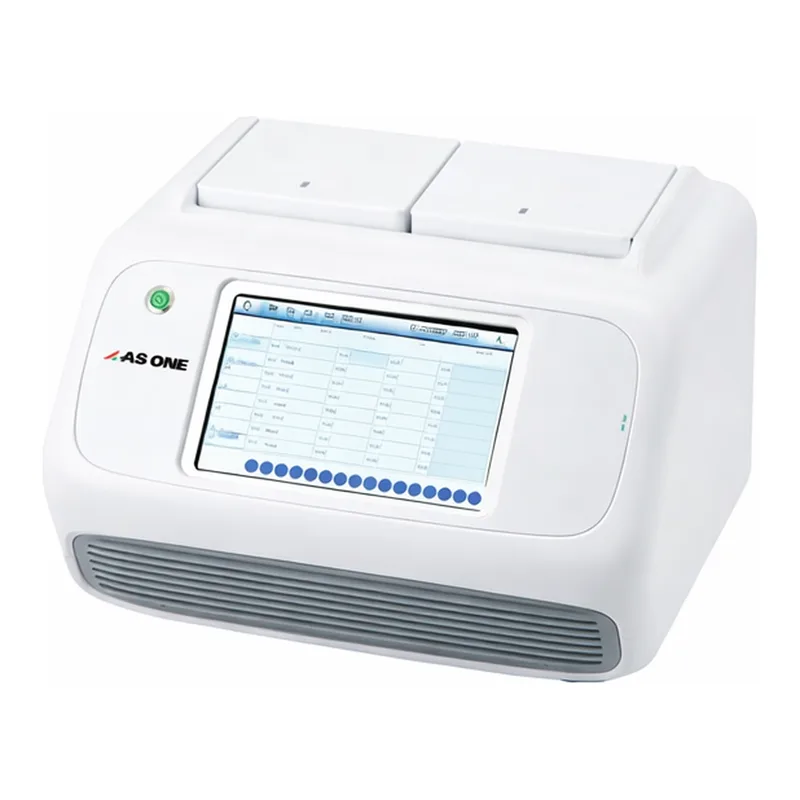

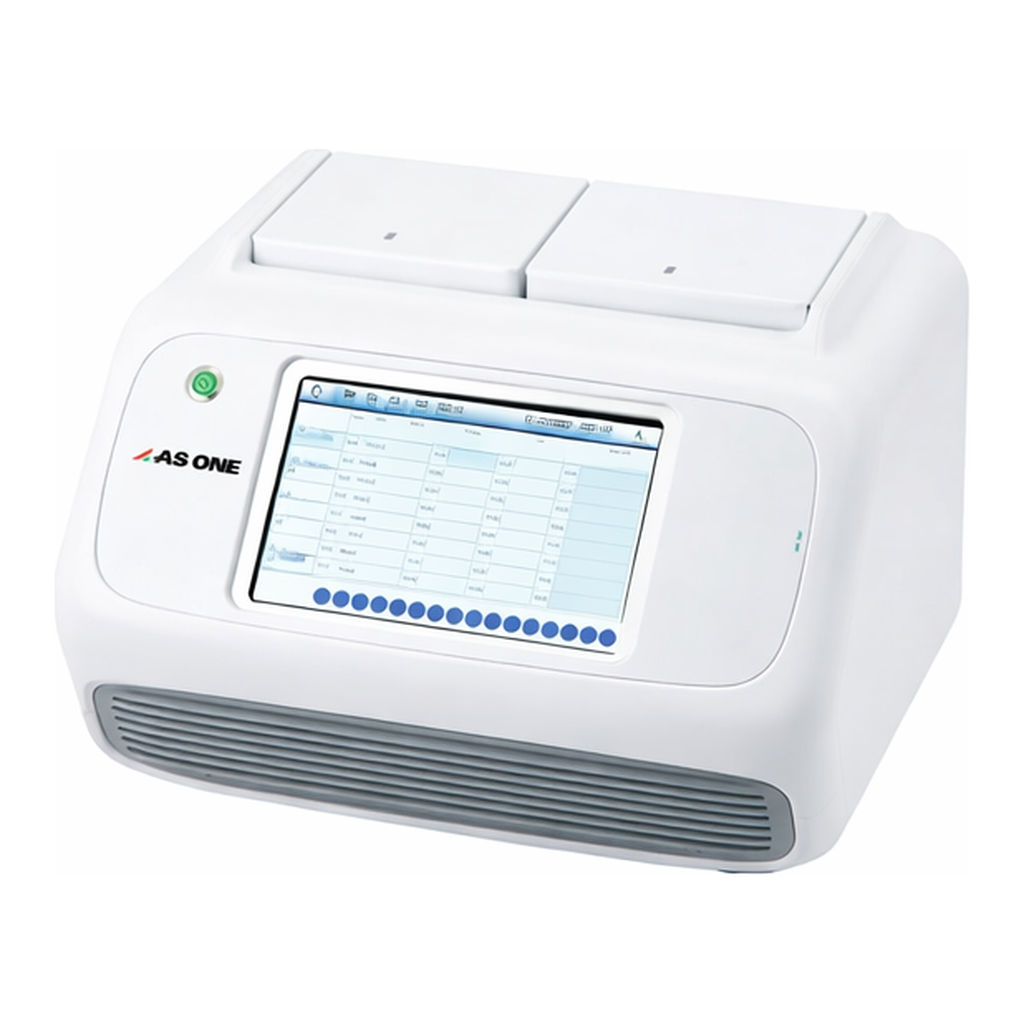

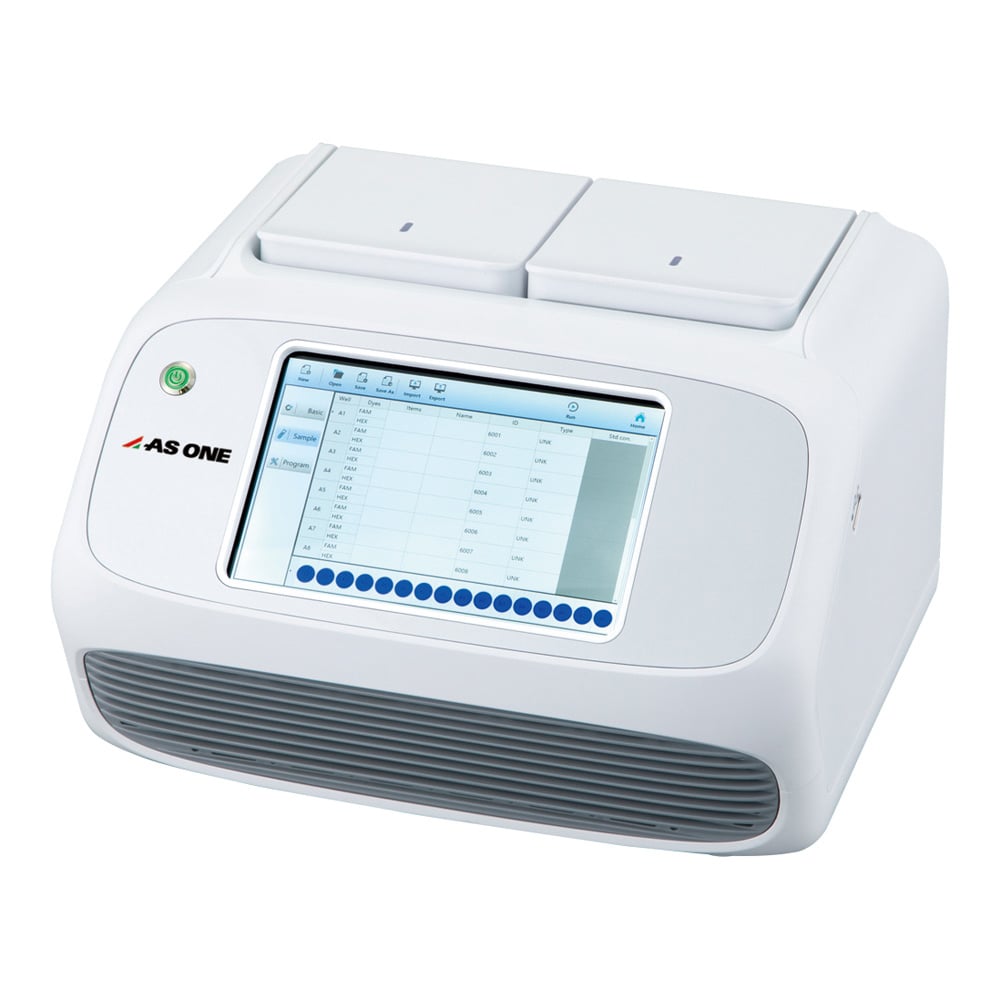

AS ONE 4-3838-01 Real-time PCR Thermal Cycler　RealtimeAS16

Features

• Equipped with a double channel double block, it can run two types of programs simultaneously.
• The side-scan technology enables stable fluorescence signal detection.
• Compact and lightweight design makes it easy to carry.
• It is equipped with high-performance analysis software.
• It has a 7-inch high-resolution touchscreen with high visibility and easy operation.

Spec

• Size (mm): 267 x 300 x 198
• Weight (kg): 5.5
• Number of pieces: 1
• Sample volume: 16 0.2 mLPCR tubes or 2 8-strand 0.2 mLPCR tubes
• Reaction volume: 10 ~ 100 uL
• Temperature setting range: 0 ~ 100 degrees C
• Maximum heating and cooling rate: 6 degrees C/sec, 5 degrees C/sec
• Temperature variation: +/- 0.1 degrees C
• Temperature homogeneity: +/- 0.25 degrees C
• Temperature control accuracy: +/- 0.25 degrees C
• Lid temperature range: 30 ~ 115 deg.
• Excitation wavelength: 460 ~ 550 nm
• Fluorescence wavelengths: F 1/520 to 540 nm, F 2/540 to 580 nm
• Calibrated Dyes: F1/FAM/SYBR Green, F2/HEX/VIC/JOE/TET
• Light source: long-life LED
• Detector: Highly sensitive photoelectric sensor
• Detection sensitivity: 1 copy
• Display: 7 `touchscreen, 1280 x 800 pixels
• Power supply: 100 ~ 240 VAC 50/60 Hz

Package size：460×390×330 mm　 [About Package size]
