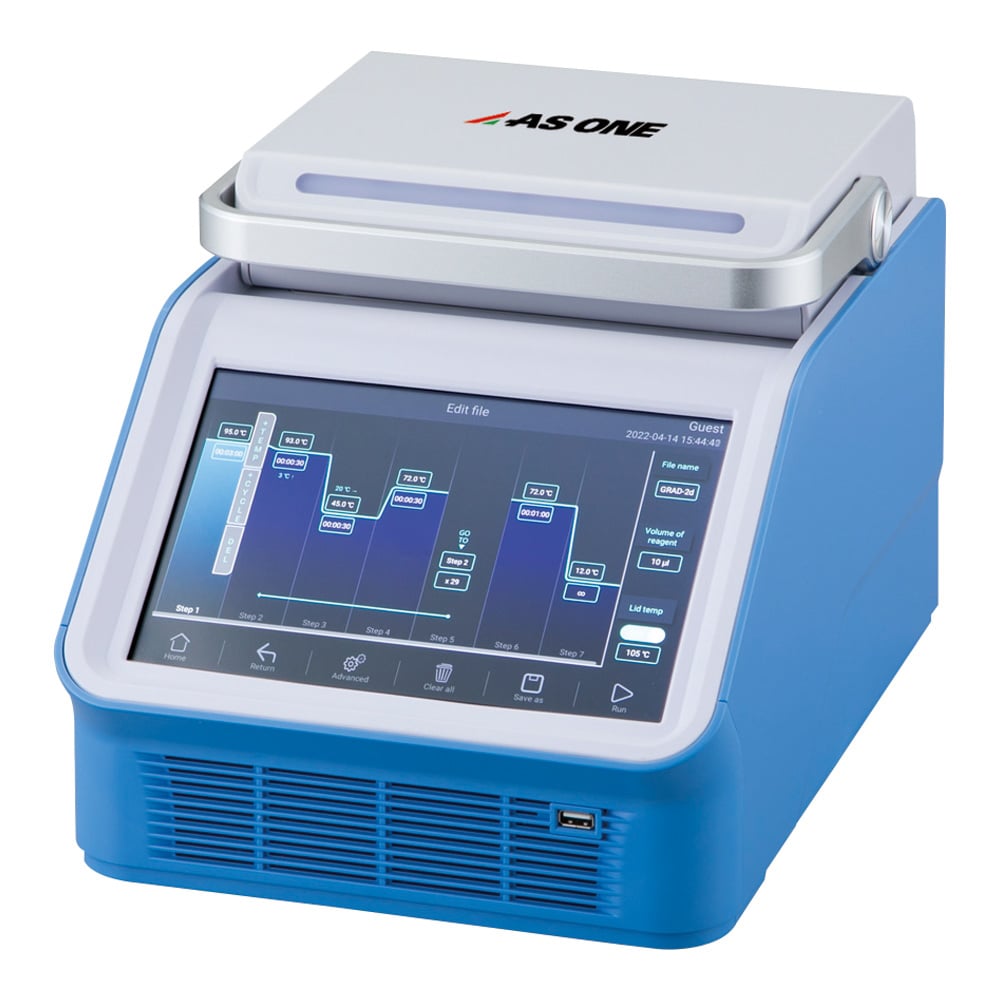

AS ONE 4-3839-01 Thermal Cycler (2D Gradient Function)　STC-2D

Features

• It has a large 10.1 inch touchscreen for high visibility and easy operation.
• The interface is simple and easy to use, making it stress-free and intuitive.
• Equipped with a 2D gradient function, it can contribute to improving experimental efficiency.
• Speedy experiments are possible at heating rates up to 8 C/sec and cooling rates up to 6 C/sec.

Spec

• Size (mm): 270 x 385 x 255
• Weight (kg): 17
• Number of pieces: 1
• Block Material: Aluminum
• Compatible container: 0.2 mL tube x 96
• Temperature setting range: 0 ~ 105 degrees C
• Maximum temperature rise/fall speed: 8 degrees C/sec, 6 degrees C/sec
• Speed control: 0.1 ~ 8 degrees C
• Temperature homogeneity: < +/- 0.2 degrees C
• Temperature control accuracy: +/- 0.1 degrees C
• Gradient setting range: 30 ~ 105 degrees C
• Gradient accuracy: +/- 0.2 degrees C
• Gradient width: horizontal/1 ~ 30 degrees C, vertical/1 ~ 24 degrees C
• Hot-lid temperature range: 30 ~ 115 degrees C
• Program capacity: 20,000 + (USB FLASH memory)
• Maximum steps: 40
• Maximum number of cycles: 100
• Duration: 1 second to 18 hours
• With Incubation Function
• Display: 10.1 inches, 1024 x 600 pixels
• Power supply: 100 AC -240 V 50/60 Hz

Package size：435×555×445 mm　 [About Package size]
