APFOS: Stainless Steel Overbraided PTFE Hose

견적요청
제품상담 버튼을 클릭하시면 해당 제품에 대해 문의하실 수 있습니다.
판매자: 비티알
브랜드: Advantapure

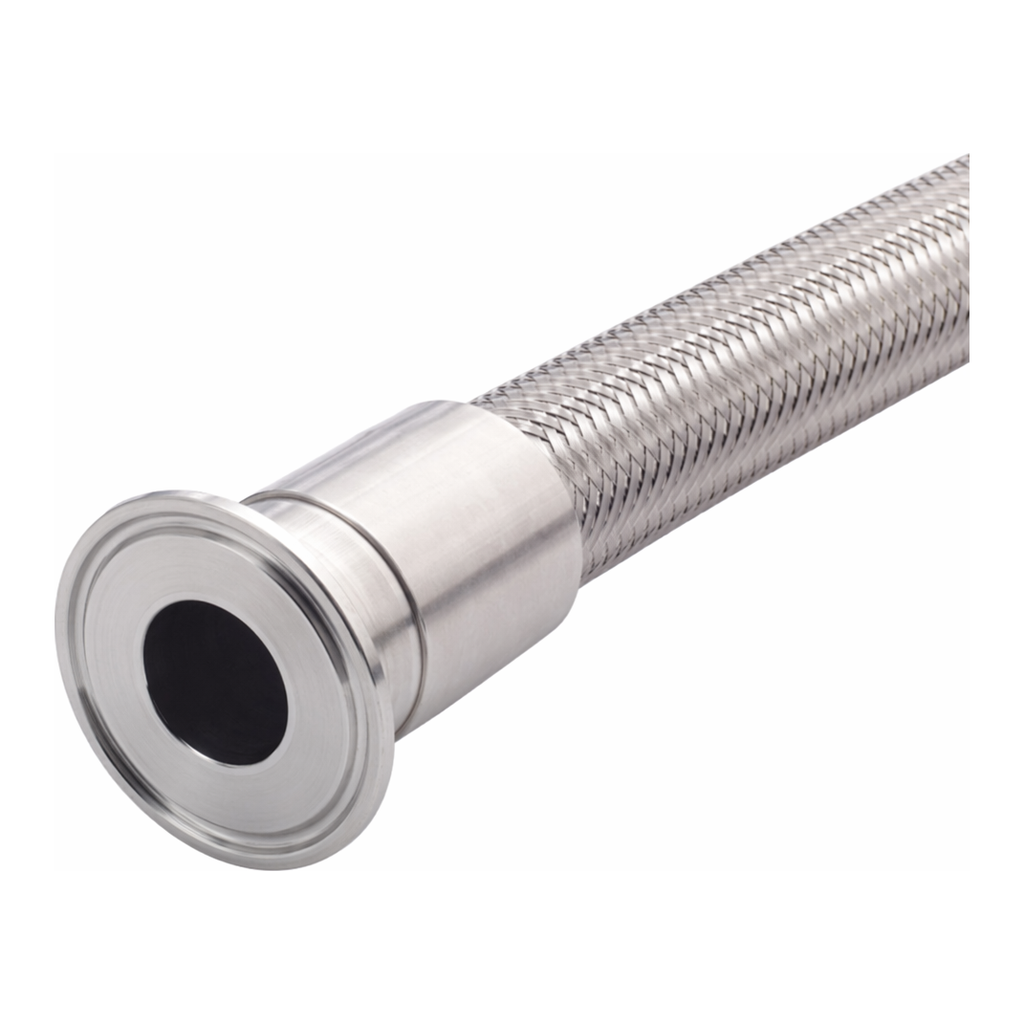

Stainless steel braided PTFE hose is constructed of virgin material with a 300 series stainless steel wire braid reinforcement jacket. The fluoropolymer core is inert and offers long flexural life, low permeability, non-flammability, and the lowest coefficient of friction of any solid material. The stainless steel braid permits higher pressure uses, reduces the possibility of kinking, and generally protects the core. Optional silicone jacketing offers protection from high temperatures during handling and keeps the outer surface clean and smooth.

KEY FEATURES

  • True Bore PTFE Smooth Core offers maximum flow` Convoluted Core offers excellent flow with enhanced flexibility
  • Stock sizes for True Bore Smooth Core: 1/4 in. through 1-1/2 in.` Convoluted Core: 1/2 in. through 3 in.
  • Hose liner meets FDA 21 CFR 177.1550, ISO 10993 Sections 5, 6, 10 and 11 and is made from USP Class VI compliant material
  • General temperature range: -100°F (-73.3°C) to 450°F (232.2°C)
  • Excellent chemical compatibility
  • Resists moisture
  • Easily cleaned or sterilized by autoclave, steam, or detergent
  • Optional silicone jacketing makes stainless steel reinforced hose easier to handle by offering heat protection
  • Silicone jacketing also provides a smooth outer surface to eliminate particle entrapment for sanitary conditions
  • Full line of crimp fittings and custom assemblies offered
  • Custom lengths, sizes, other overbraiding materials, special cleaning, and/or packaging is available
  • Add stainless steel armor casing or cuffs for an extra layer of protection from crushing, kinking, harsh environments, and abrasion while still allowing flexibility
  • Laser-etched stainless steel collars for hose identification available

항목
SPECIFICATIONS----------------------
APFOS-W - WHITE PTFE CORE, SMOOTH I.D. 304 STAINLESS STEEL REINFORCEMENT----------------------------------------------------------------------------------

APFOS-W - WHITE PTFE CORE, SMOOTH I.D..JPG

^Double braided

NOTE: When products are used as part of an assembly, the pressure ratings of fittings may be less than hose pressure ratings above. Please consult your sales representative.

The data listed throughout this web site is meant only as a guide to aid in design, and is believed to be reliable` however, nothing stated shall constitute a guarantee or warranty for any application. Product field-testing should be performed to find the actual values for a specific application.

BACK TO TOP


항목
SPECIFICATIONS----------------------
APFOS-WC - WHITE PTFE CORE, CONVOLUTED I.D. 316 STAINLESS STEEL REINFORCEMENT---------------------------------------------------------------------------------------

APFOS-WC - WHITE PTFE CORE, CONVOLUTED I.D..JPG

^^Heavy wall

NOTE: When products are used as part of an assembly, the pressure ratings of fittings may be less than hose pressure ratings above. Please consult your sales representative.

The data listed throughout this web site is meant only as a guide to aid in design, and is believed to be reliable` however, nothing stated shall constitute a guarantee or warranty for any application. Product field-testing should be performed to find the actual values for a specific application.

BACK TO TOP


항목
SPECIFICATIONS----------------------
APFOSJ-W - SILICONE JACKETED, WHITE PTFE CORE, SMOOTH I.D. 304 STAINLESS STEEL REINFORCEMENT--------------------------------------------------------------------------------------------------------

APFOSJ-W - SILICONE JACKETED, WHITE PTFE CORE,.JPG

Tolerances: ± 1% on bulk hose lengths
Black Conductive core available by special request.

NOTE: When products are used as part of an assembly, the pressure ratings of fittings may be less than hose pressure ratings above. Please consult your sales representative.

The data listed throughout this web site is meant only as a guide to aid in design, and is believed to be reliable` however, nothing stated shall constitute a guarantee or warranty for any application. Product field-testing should be performed to find the actual values for a specific application.

BACK TO TOP


항목
SPECIFICATIONS----------------------
APFOSJ-WC - SILICONE JACKETED, WHITE PTFE CORE, CONVOLUTED I.D. 316 STAINLESS STEEL REINFORCEMENT-------------------------------------------------------------------------------------------------------------

APFOSJ-WC - SILICONE JACKETED, WHITE PTFE CORE,.JPG

Tolerances: ± 1% on bulk hose lengths
Black Conductive core available by special request.

NOTE: When products are used as part of an assembly, the pressure ratings of fittings may be less than hose pressure ratings above. Please consult your sales representative.

The data listed throughout this web site is meant only as a guide to aid in design, and is believed to be reliable` however, nothing stated shall constitute a guarantee or warranty for any application. Product field-testing should be performed to find the actual values for a specific application.


PDF Download a printable version of our APFOS Hose brochure. APFOS-APFOSJ_Hose.pdf(764KB)

BACK TO TOP
