TF30D_D Diaphragm Pump-소형 다이아프램 액체펌프

TF30D_D Diaphragm Pump

소형 다이아프램 액체펌프 (TF30D-D Diaphragm Liquid Pump)

---

제품 설명 (Key Features)

• Max Flowrate: water 0.8 L/min, gas 5.0 L/min
• Water lift: ≥10 m
• Max vacuum: -55 kPa
• Self-priming and excellent for pressure
• Little vibration

---

TOPSFLO 모터 라벨 정보

항목	내용
Model	TS-500
Voltage	DC 12V
Flow	2.0 L/min
Pressure	100 kPa
Origin	Made in China

---

엔진 구조 설명 (이미지 내 텍스트)

• Cylinder head
• Spark plug
• Intake valve
• Exhaust valve
• Piston
• Connecting rod
• Crankshaft

---

Specifications

#	항목	내용
1	Motor Type	Brush DC motor
2	Max flow rate	water: 0.8 L/min, gas: 5 L/min
3	Water lift	≥10 m, Max vacuum: 55 kPa
4	Voltage	6V / 12V / 24V
5	Ideal Life Time	3000 hours
6	Functions	Can dry-running, Self-priming
7	Pump Theory	Diaphragm pump
8	Ambient Temperature	41–158°F (5–70°C)
9	Use Place	Indoor
10	Media	Most liquids and gases
11	Noise Class form 1M	50 dB / Max
12	Working Mode	Continuous or interrupt
13	Inlet	OD 4.2 mm / ID 3.6 mm
14	Outlet	OD 4.2 mm / ID 3.6 mm
15	Hose suggestion	ID 4.0 mm
16	Dimension	80 mm × 31 mm × 58 mm
17	Weight	220 g
18	Materials	Pump head: Nylon membrane EPDM / PTFE valve EPDM / FPM

---

Parameter

Model	Liquid Pump	Vacuum Pump (only vacuum reference TM30B-C/D)	Rated Voltage (Vdc)	No-load Current (A)	Max Head (M)	Max Vacuum (KPa)	Max Flow (L/min)
TF30D-D	TF30D-D12-W101 (outside controller)	TF30D-D12-V5505 (outside controller)	6 / 12 / 24	0.4 / 0.24 / 0.15	≥10	-55	water: 0.8 gas: 5

---

Model Code for Easy Ordering

The model code is identical to the order number and is made up as follows:

TF30D - A12 - W101
        |       |
        |       └── W: Water heaf ≥10M 1L
        |           V: Vacuum 55kpa 5L
        |
        └── Motor Type
Model Series

Motor Options

• A Motor: Premium duty brush DC motor, lifetime 3,000 hours
• B Motor: 1,500 hours normal brushed
• C or D Motor: 15,000 hours coreless brushless
• H Motor: 10,000 hours brushless

---

Applications

• Industrial vacuum applications
• Portable analytical instruments
• Medical diagnostic equipment
• Environmental/water treatment
• Food/toxicology
• Laboratory
• Cleaning industry
• Printing
• Fireplace

---

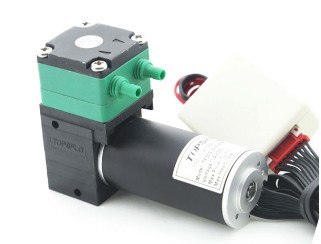

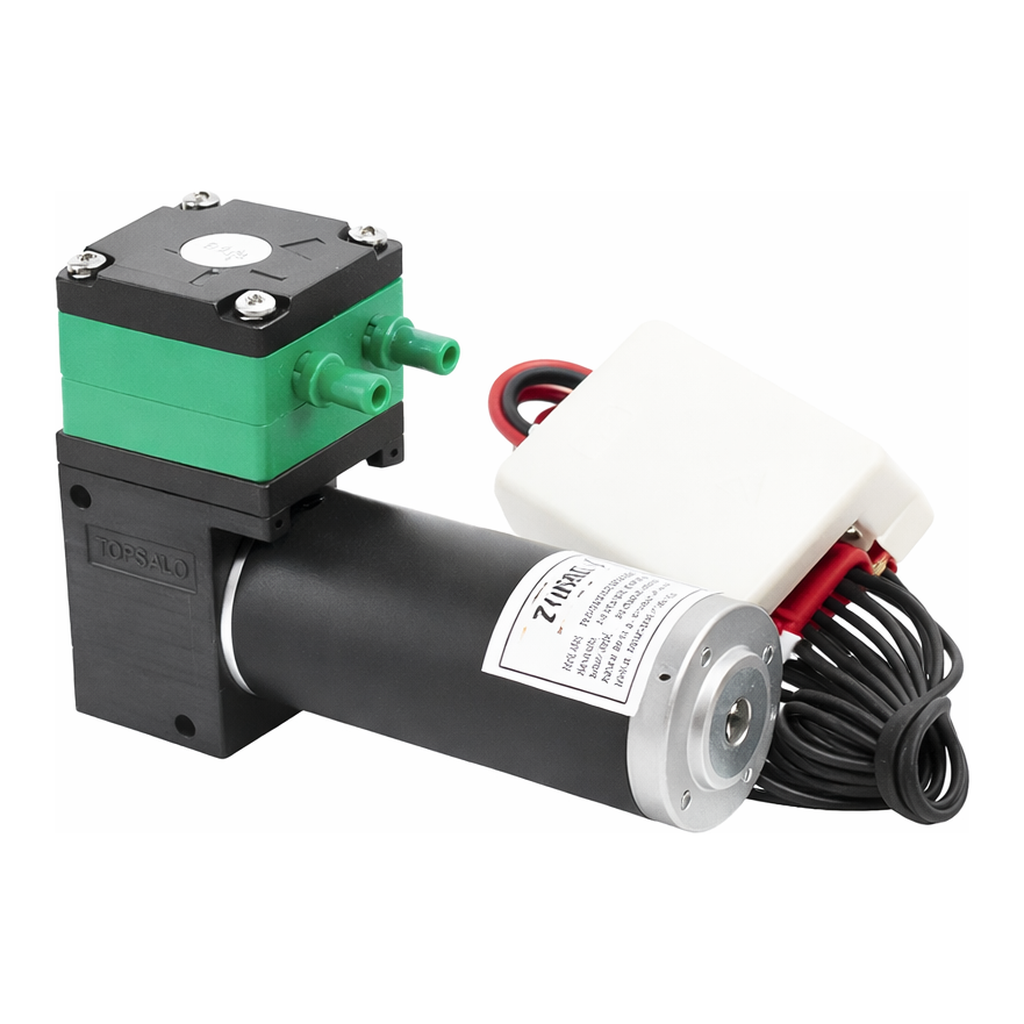

제품 이미지
