200 series_Tubing Pump-소형 튜브연동 액체펌프(장비장착용)

상품 한눈에 보기

소형 장비 내장용 튜브연동 액체펌프로 다양한 전압과 유량 옵션 제공 액체와 기체 모두 이송 가능하며 건식 운전에도 우수한 내구성 튜브 내부만 유체 접촉으로 오염 최소화 및 화학약품 호환성 우수 콤팩트한 디자인으로 OEM 장비 통합에 적합 Easily replaceable pumphead 구조로 유지보수 용이

브랜드
Leadfluid
카테고리
OEM Pumps
#Leadfluid#OEM Pumps#Pumps

Leadfluid · 200 series_Tubing Pump-소형 튜브연동 액체펌프(장비장착용)

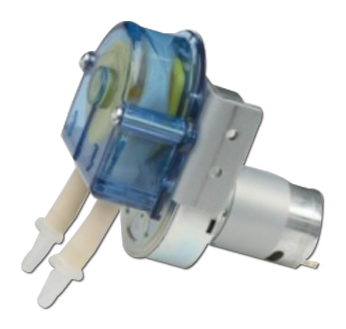

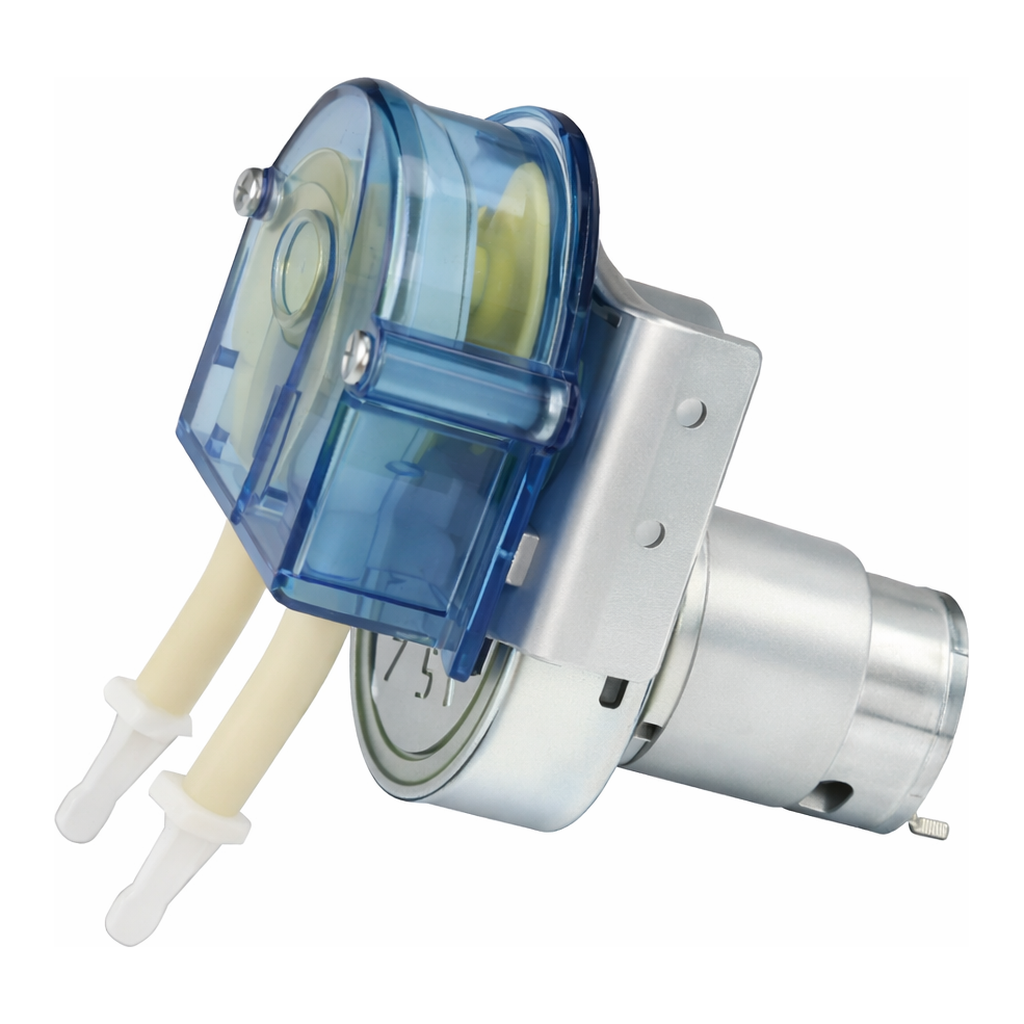

200 series_Tubing Pump

소형 튜브연동 액체펌프 (장비장착용)

제품 설명 (KEY FEATURES)

  • Excellent dry running characteristics
  • Can pump fluid and gas/air
  • Fluid only contacts the inside of the tubing
  • Can pump slurries and fluids with high particulate content
  • Self priming
  • Compact design

FEATURES

  • Excellent dry running characteristics
  • Can pump fluid and gas/air
  • Fluid only contacts the inside of the tubing
  • Can pump slurries and fluids with high particulate content
  • Self priming
  • Compact design
  • Easily replaceable pumphead
  • Compatible with chemicals and aggressive fluids (tube material options)

SPECIFICATIONS

Silicone Pump Models (6VDC / 12VDC / 18VDC)

Model No. Series ml/min Rollers RPM Voltage Tube ID / Material mA
200.035.006.008 200 series pump 2.3 3 35rpm 6vDC 0.8mm 300
200.035.006.016 200 series pump 7 3 35rpm 6vDC 1.6mm 300
200.035.006.030 200 series pump 20 3 35rpm 6vDC 3mm 300
200.035.006.050 200 series pump 40 3 35rpm 6vDC 5mm 300
200.070.006.008 200 series pump 4.6 3 70rpm 6vDC 0.8mm 300
200.070.006.016 200 series pump 13 3 70rpm 6vDC 1.6mm 300
200.070.006.030 200 series pump 40 3 70rpm 6vDC 3mm 300
200.070.006.050 200 series pump 80 3 70rpm 6vDC 5mm 300
200.005.012.008 200 series pump 0.3 3 5rpm 12vDC 0.8mm 60
200.005.012.016 200 series pump 1 3 5rpm 12vDC 1.6mm 60
200.005.012.030 200 series pump 3 3 5rpm 12vDC 3mm 60
200.005.012.050 200 series pump 6 3 5rpm 12vDC 5mm 60
200.035.012.008 200 series pump 2.3 3 35rpm 12vDC 0.8mm 140
200.035.012.016 200 series pump 7 3 35rpm 12vDC 1.6mm 140
200.035.012.030 200 series pump 20 3 35rpm 12vDC 3mm 140
200.035.012.050 200 series pump 40 3 35rpm 12vDC 5mm 140
200.070.012.008 200 series pump 4.6 3 70rpm 12vDC 0.8mm 170
200.070.012.016 200 series pump 13 3 70rpm 12vDC 1.6mm 170
200.070.012.030 200 series pump 40 3 70rpm 12vDC 3mm 170
200.070.012.050 200 series pump 80 3 70rpm 12vDC 5mm 170
200.150.012.008 200 series pump 10 3 150rpm 12vDC 0.8mm 400
200.150.012.016 200 series pump 30 3 150rpm 12vDC 1.6mm 400
200.150.012.030 200 series pump 90 3 150rpm 12vDC 3mm 400
200.150.012.050 200 series pump 180 3 150rpm 12vDC 5mm 400
200.330.012.016 200 series pump 66 3 330rpm 12vDC 1.6mm 800
200.330.012.030 200 series pump 198 3 330rpm 12vDC 3mm 800
200.330.012.050 200 series pump 396 3 330rpm 12vDC 5mm 800
200.035.018.008 200 series pump 2.3 3 35rpm 18vDC 0.8mm 300
200.035.018.016 200 series pump 7 3 35rpm 18vDC 1.6mm 300
200.035.018.030 200 series pump 20 3 35rpm 18vDC 3mm 300
200.035.018.050 200 series pump 40 3 35rpm 18vDC 5mm 300

Additional Silicone Pump Models (18VDC / 24VDC)

Model No. Series ml/min Rollers RPM Voltage Tube ID / Material mA
200.070.018.008 200 series pump 4.6 3 70rpm 18vDC 0.8mm silicone 115
200.070.018.016 200 series pump 14 3 70rpm 18vDC 1.6mm silicone 115
200.070.018.030 200 series pump 40 3 70rpm 18vDC 3mm silicone 115
200.070.018.050 200 series pump 80 3 70rpm 18vDC 5mm silicone 115
200.035.024.008 200 series pump 2.3 3 35rpm 24vDC 0.8mm silicone 80
200.035.024.016 200 series pump 7 3 35rpm 24vDC 1.6mm silicone 80
200.035.024.030 200 series pump 20 3 35rpm 24vDC 3mm silicone 80
200.035.024.050 200 series pump 40 3 35rpm 24vDC 5mm silicone 80
200.070.024.008 200 series pump 4.6 3 70rpm 24vDC 0.8mm silicone 90
200.070.024.016 200 series pump 14 3 70rpm 24vDC 1.6mm silicone 90
200.070.024.030 200 series pump 40 3 70rpm 24vDC 3mm silicone 90
200.070.024.050 200 series pump 80 3 70rpm 24vDC 5mm silicone 90
200-220-024-008 200 series pump 44 3 220rpm 24vDC 0.8mm silicone 200
200-220-024-016 200 series pump 132 3 220rpm 24vDC 1.6mm silicone 200
200-220-024-030 200 series pump 264 3 220rpm 24vDC 3.0mm silicone 300
200-220-024-050 200 series pump — 3 220rpm 24vDC 5mm silicone —

SILICONE PUMPS (AC Models)

Model No. Series ml/min Rollers RPM Voltage Tube ID / Material Watts
200.003.115.008 200 series pump 0.2 3 3rpm 115vAC 0.8mm silicone 5
200.003.230.008 200 series pump 0.2 3 3rpm 230vAC 0.8mm silicone 5
200.008.230.008 200 series pump 0.53 3 8rpm 230vAC 0.8mm silicone 5
200.015.115.008 200 series pump 1 3 15rpm 115vAC 0.8mm silicone 5
200.015.230.008 200 series pump 1 3 15rpm 230vAC 0.8mm silicone 5
200.030.115.008 200 series pump 2 3 30rpm 115vAC 0.8mm silicone 5
200.030.230.008 200 series pump 2 3 30rpm 230vAC 0.8mm silicone 5
200.003.115.016 200 series pump 0.6 3 3rpm 115vAC 1.6mm silicone 5
200.003.230.016 200 series pump 0.6 3 3rpm 230vAC 1.6mm silicone 5
200.008.230.016 200 series pump 1.6 3 8rpm 230vAC 1.6mm silicone 5
200.015.115.016 200 series pump 2 3 15rpm 115vAC 1.6mm silicone 5
200.015.230.016 200 series pump 2 3 15rpm 230vAC 1.6mm silicone 5
200.030.115.016 200 series pump 5 3 30rpm 115vAC 1.6mm silicone 5
200.030.230.016 200 series pump 5 3 30rpm 230vAC 1.6mm silicone 5
200.003.115.030 200 series pump 2 3 3rpm 115vAC 3mm silicone 5
200.003.230.030 200 series pump 2 3 3rpm 230vAC 3mm silicone 5
200.008.230.030 200 series pump 5 3 8rpm 230vAC 3mm silicone 5
200.015.115.030 200 series pump 9 3 15rpm 115vAC 3mm silicone 5
200.015.230.030 200 series pump 9 3 15rpm 230vAC 3mm silicone 5
200.030.115.030 200 series pump 17 3 30rpm 115vAC 3mm silicone 5
200.030.230.030 200 series pump 17 3 30rpm 230vAC 3mm silicone 5
200.003.115.050 200 series pump 4 3 3rpm 115vAC 5mm silicone 5
200.003.230.050 200 series pump 4 3 3rpm 230vAC 5mm silicone 5
200.008.230.050 200 series pump 10 3 8rpm 230vAC 5mm silicone 5
200.015.115.050 200 series pump 18 3 15rpm 115vAC 5mm silicone 5
200.015.230.050 200 series pump 18 3 15rpm 230vAC 5mm silicone 5
200.030.115.050 200 series pump 35 3 30rpm 115vAC 5mm silicone 5
200.030.230.050 200 series pump 35 3 30rpm 230vAC 5mm silicone 5

APPLICATIONS

  • Continuous Inkjet (CIJ)
  • Drop-on-Demand Inkjet (DOD)
  • In-Vitro Diagnostics (IVD)

제품 이미지




Leadfluid 상품 둘러보기

전체보기

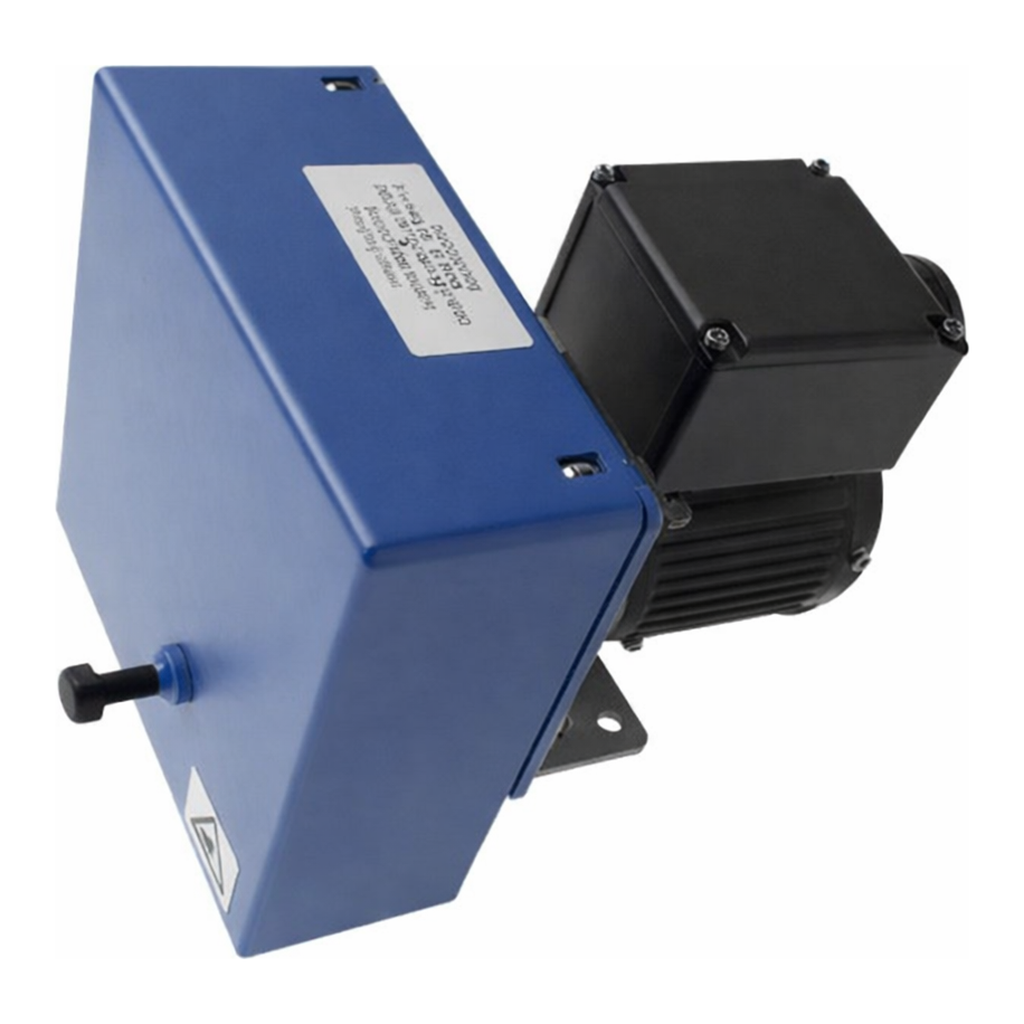

Leadfluid400i series_Industrial Tubing Pump-산업용 튜브연동 액체펌프(장비장착용)가격 문의VAT별도
