6410DC_Diaphragm Pump-소형 다이아프램 액체펌프(장비장착용)

6410DC Diaphragm Pump

소형 다이아프램 액체펌프 (장비장착용)

---

제품 설명 (Key Features)

• High efficiency
• Smooth, continuous liquid flow with minimized pulses
• Bubble-free transfer of media
• Excellent reliability and durability
• Compact design
• Flexible design for customized solutions

---

FEATURES

• High efficiency
• Smooth, continuous liquid flow with minimized pulses
• Bubble-free transfer of media
• Excellent reliability and durability
• Compact design
• Flexible design for customized solutions

---

SPECIFICATIONS

HYDRAULIC DATA

Description	6410 DC PP/PTFE/FFKM
Part number	12 V DC
	24 V DC
Free flow	700 ml/min
Max. continuous pressure height	10 m H₂O
Max. suction height	3 m H₂O

ELECTRICAL DATA

항목	내용
Motor type	Permanent magnet
Nominal speed @ 10 m H₂O	3100 rpm
Nominal voltage	12/24 V DC
Max. nominal power consumption @ 10 m H₂O	6 W
Motor insulation class	E
Protection class	IP00
EMC protection	Yes

GENERAL DATA

Parameter	Value
Ambient temperature	5 to 40 °C
Media temperature	5 to 80 °C
Weight	190 g

WETTED PARTS

Component	Material / Description
Pump head	PP with hose barbs
Diaphragm	PTFE
Valve plate	FFKM
Resonating diaphragm	PTFE

---

APPLICATIONS

• Continuous Inkjet (CIJ)
• Drop-on-Demand Inkjet (DOD)
• In-Vitro Diagnostics (IVD)

---

추가 정보 (이미지 OCR 텍스트)

• THOMAS
• Fuel injector, Spark plug, Fuel-air mixture, Piston, Cylinder wall, Crankshaft

---

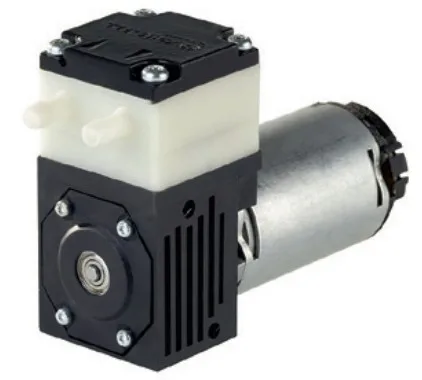

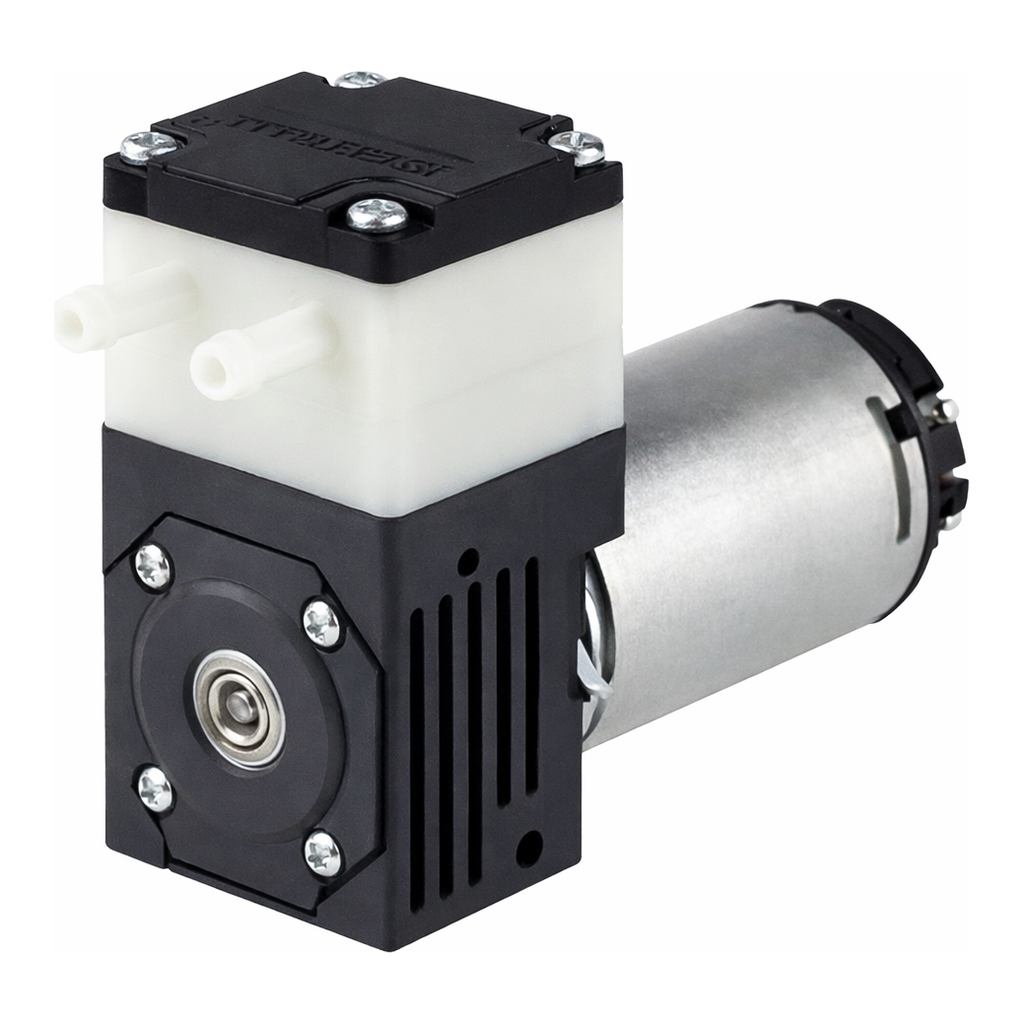

제품 이미지
