RH/QP series-로타리 피스톤 정밀 정량 펌프

RH/QP Series

Rotary Valveless Piston Pump

로타리 피스톤 정밀 정량 펌프로, 밸브리스 구조를 통해 유지보수가 용이하며 내화학성과 내구성이 우수합니다.

---

제품 특징 (KEY FEATURES)

• Max : 1 채널
• 강한 내화학성 및 내구성
• 밸브리스 방식으로 유지보수 쉬움
• 0-100% 각도 조절, 스트로크 조절 가능

---

FEATURES

• Max : 1 채널
• 강한 내화학성 및 내구성
• 지속적인 주입 가능 (Continuous Infusion)
• 헤드 내부 재질 변경 가능
• 0-100% 각도 조절 및 스트로크 조절 가능
• RH series : 0–3,000 rpm, Max. 300 mL/min
• QP series : 0–1,800 rpm, Max. 2,300 mL/min

눈금 표시: -100% → 0% → +100%

---

SPECIFICATIONS / ORDERING INFORMATION

RH Series

Type Order No.	RH00.CKC	RH0.CKC	RH1.CKC
Piston	Ceramic	Ceramic	Ceramic
Cylinder case	Kynar (Fluorocarbon (PVDF))	Kynar (Fluorocarbon (PVDF))
Cylinder liner	Ceramic	Ceramic	Ceramic
Lip seals	Rulon AR	Rulon AR	Rulon AR
Gland washers	PTFE	PTFE	PTFE
Max. temperature	100℃	100℃	100℃
Max. differential pressure	6.9 bar	6.9 bar	6.9 bar
Flowports	Kynar UNF 1/4" - 28 (female)	2 fixed tube fittings for PTFE tubing 6mm OD
Stroke volume (µL)	2.5 - 25	5.0 - 50	10.0 - 100
Speed range (choose)	0 - 600 rpm / 0 - 1,800 rpm / 100 - 3,000 rpm
Max. Flowrate (mL/min)	75	150	300

---

QP Series

Type Order No.	QPQ0.SSY	QPQ1.CSC / QPQ1.CKC	QPQ2.CSC / QPQ2.CKC	QPQ3.CKC
Piston	316 Stainless Steel	Ceramic	Ceramic	Ceramic
Cylinder case	316 Stainless Steel	316 Stainless Steel / Kynar	316 Stainless Steel / Kynar	Kynar (Fluorocarbon (PVDF))
Cylinder liner	Carbon	Ceramic	Ceramic	Ceramic
Lip seals	Rulon J	Rulon AR	Rulon AR	Rulon AR
Gland washers	PTFE	PTFE	PTFE	PTFE
Cylinder head seal	PTFE	PTFE / None	PTFE / None	None
Max. temperature	60℃	177 / 100℃	177 / 100℃	100℃
Max. differential pressure	6.9 bar	6.9 bar / 4.1 bar	6.9 bar / 4.1 bar	1.7 bar
Flowports	1/4" NPT (female), 2 stainless steel adaptors with thread 1/4 NPT(male) and fitting for tubing with 6.4mm OD	1/4" NPT (female), 2 stainless steel adaptors with thread 1/4 NPT(male) and fitting for tubing with 6.4mm OD / For tubing with 9.5mm OD	1/4" NPT (female), 2 stainless steel adaptors with thread 1/4 NPT(male) and fitting for tubing with 6.4mm OD / For tubing with 9.5mm OD	For tubing up to 12.7mm ID or PTFE tubing 6mm OD
Stroke volume (µL)	3.2 - 80	12.8 - 320	28.8 - 720	51.2 - 1,280
Speed range (choose)	0 - 1,800 rpm	0 - 1,800 rpm	0 - 1,800 rpm
Max. Flowrate (mL/min)	144	576	1,296	2,304

---

Pump Head Materials Configurator

RH LAB PUMP, RP

PISTON SIZE
00 = 1/8" DIA.
03 = 3/16" DIA.
05 = 1/4" DIA.
11 = 3/8" DIA.

Q PUMP

PISTON SIZE
01 = 1/8" DIA.
02 = 3/16" DIA.
03 = 1/4" DIA.
04 = 3/8" DIA.
05 = 1/2" DIA.

예시 코드: 1 C K C - W

---

PISTON MATERIAL

코드	재질	비고
C	CERAMIC (alumina)	Std. for all piston sizes
SAN	Sapphire (specify)

CYLINDER CASE MATERIAL

코드	재질	비고
K	FLUOROCARBON (PVDF)	Std. for all piston sizes
SAN	Stainless Steel
T	Tefzel

CYLINDER LINER MATERIAL

코드	재질	비고
C	CERAMIC (alumina)	Std. for all piston sizes
SAN	Sapphire (specify)

OPTIONS

• W = Isolation Gland (Q1, Q2, & Q3)
• WT = Isolation & Temp Stand (Q1 & Q2)
• TF = Sanitary Flange
• LF = Low Dead Volume Heads - 60 mL/min Max
• R479 = Laser Flow Adapter Kit
• S = All Stainless Steel Pump Head Carrier (Q only)

---

APPLICATIONS

• Perfusion of animal tissue slice
• Flow Injection
• In-vitro system
• Re-circulating pump
• Filling of bottles

---

추가 참고 정보

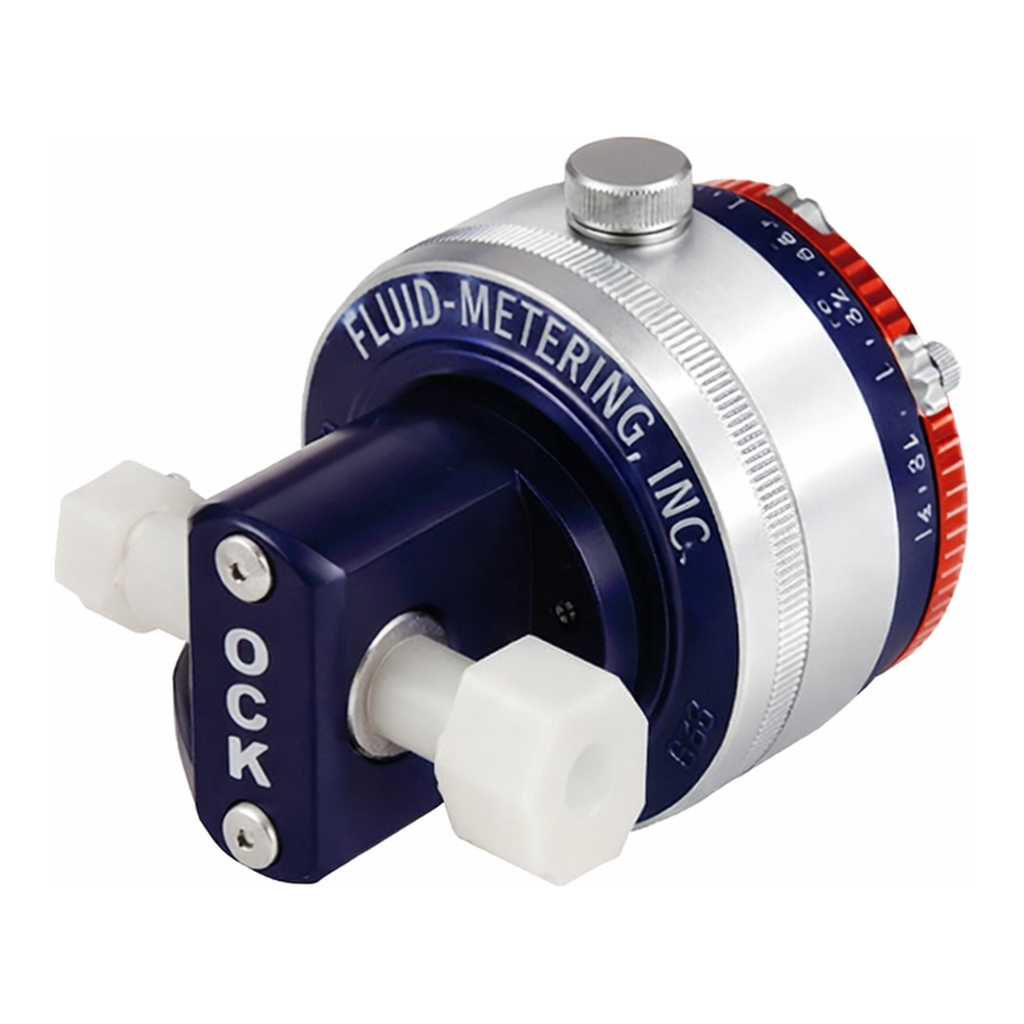

• 이미지 내 텍스트: “FLUID-METERING INC.”, “CKC”

---
