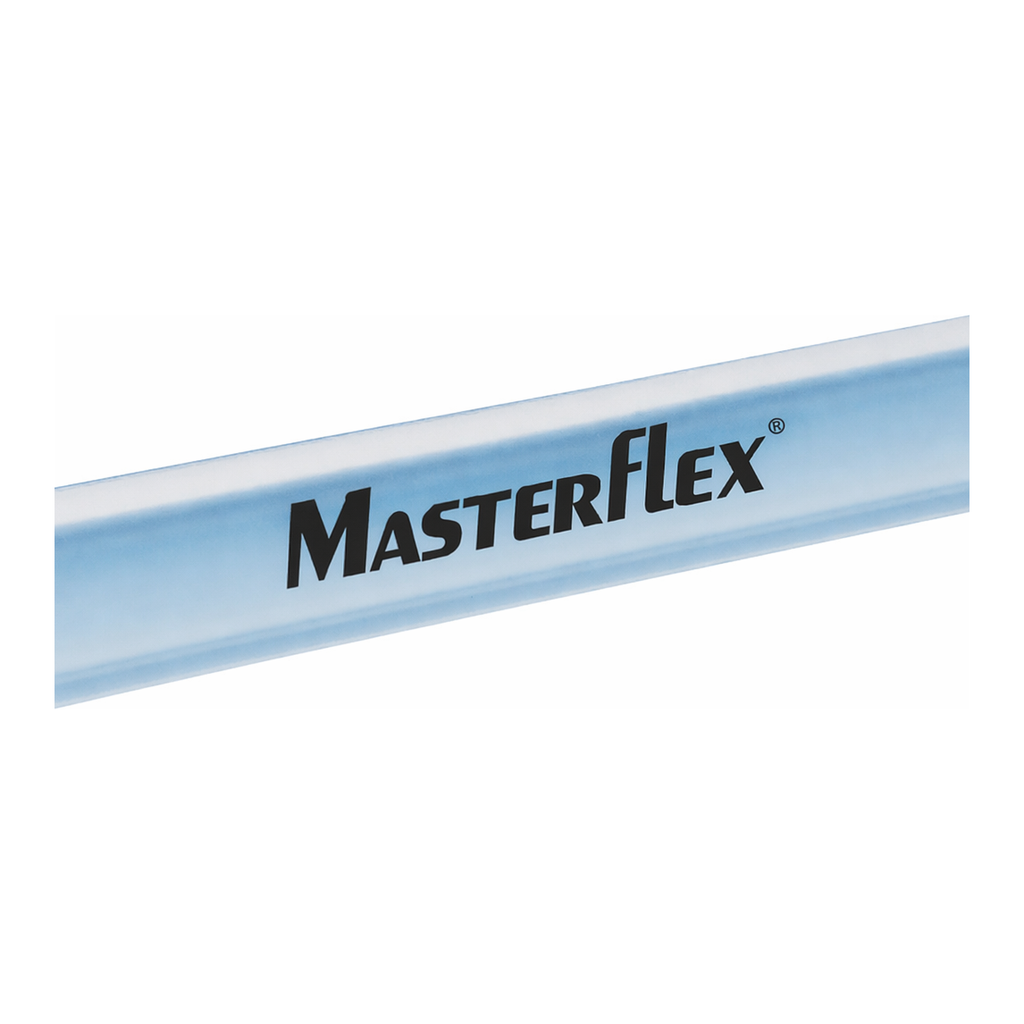

L/S® Precision Pump Tubing

주요특징

• Ensure optimal performance from your Masterflex pump
• Custom extruded to fit Masterflex pumps
• Engineered for long life in peristaltic pump applications
• 96410-13, 96400-13, 96420-13, 96440-13, 96419-13, 06424-13, 06508-13, 06435-13, 06442-13, 06440-13, 06418-13, 06509-13, 06401-13, 06475-13, 06404-13, 06402-13, 96412-13

L/S® Precision Pump Tubing
Ensure optimal performance from your Masterflex pump

Features

· Custom extruded to fit Masterflex pumps
· Engineered for long life in peristaltic pump applications

		Tubing size	L/S 13	L/S 14	L/S 16	L/S 25	L/S 17	L/S 18
Inner diameter	0.8 mm (0.03")	1.6 mm (0.06")	3.1 mm (0.12")	4.8 mm (0.19")	6.4 mm (0.25")	7.9 mm (0.31")
Hose barb size	1.6 mm (1⁄16")	1.6 mm (1⁄16")	3.2 mm (1⁄8")	4.8 mm (3 ⁄16")	6.4 mm (1⁄4")	9.5 mm (3⁄8")
Flow range (approximate)	0.06 to 36 mL/min	0.21 to 130 mL/min	0.8 to 480 mL/min	1.7 to 1000 mL/min	2.8 to 1700 mL/min	3.8 to 2300 mL/min
Pump tubing formulation	Description	Compatible pump head
Silicone (platinum-cured)	–– Complies with USP Class V, EP, FDA, REACH,RoHS, ADCF –– Low protein binding, fungus resistant, phthalate and latex-free –– Accommodates a wide temperature range	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-96410-13	GY-96410-14	GY-96410-16	GY-96410-25	GY-96410-17	GY-96410-18
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
Silicone (peroxide-cured)	–– Complies with USP Class VI, EP, FDA, 3A, REACH, RoHS, ADCF ––Greater physical compression capability –– Economical, longer tubing life	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-96400-13	GY-96400-14	GY-96400-16	GY-96400-25	GY-96400-17	GY-96400-18
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
BioPharm Silicone (platinum-cured)	–– Complies with USP Class VI, EP, FDA, 3A, REACH, RoHS, ADCF ––Low absorptionexcellent biocompatibility <br>–– Very low extractable weather, ozone, corona, radiation resistant	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-96420-13	GY-96420-14	GY-96420-16	GY-96420-25	GY-96420-17	GY-96420-18
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
BioPharm Plus Silicone (platinum-cured)	–– Complies with USP Class VI, EP, FDA, REACH, RoHS, ADCF –– Ultra-smooth—minimizes particle entrapment –– Very low extractable—ideal for lab, biotech, and pharmaceutical applications	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-96440-13	GY-96440-14	GY-96440-16	GY-96440-25	GY-96440-17	GY-96440-18
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
Puri-Flex™	–– Complies with USP Class VI, FDA, 3A, REACH, RoHS, ADCF –– Heat sealable, weldable, and economical –– Long pump life when compared to silicone or many other TPE tubings	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-96419-13	GY-96419-14	GY-96419-16	GY-96419-25	GY-96419-17	GY-96419-18
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
C-Flex®	–– Complies with USP Class VI, EP, REACH,RoHS, ADCF –– Heat sealable, weldable, economical ––Better resistance to pH fluctuations	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-06424-13	GY-06424-14	GY-06424-16	GY-06424-25	GY-06424-17	GY-06424-18
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
C-Flex® ULTRA	–– Complies with USP Class VI, EP, REACH,RoHS, ADCF –– Longest life of any C-Flex formulation ––Lowest spallation and reduced residue	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	—	GY-06434-14	GY-06434-16	GY-06434-25	GY-06434-17	GY-06434-18
	—	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
PharMed® BPT	–– Complies with USP Class VI, EP, FDA, NSF, REACH, RoHS ––>10,000 hours of tubing life` sealable, weldable ––I deal for tissue and cell culture work	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-06508-13	GY-06508-14	GY-06508-16	GY-06508-25	GY-06508-17	GY-06508-18
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
PharmaPure®	–– Complies with USP Class VI, EP, FDA, REACH, RoHS ––Nontoxic and nonhemolytic biocompatible –– Long life even under pressure with VERY low spallation	✓ Easy-Load ✓ Easy-Load II​	GY-06435-13	GY-06435-14	GY-06435-16	GY-06435-25	GY-06435-17	GY-06435-18
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
Chem-Durance® Bio	–– Complies: USP Class VI, FDA, REACH, RoHS –– Excellent chemical compatibility and biocompatibility –– Excellent pump life and durability under pressure	✓ Easy-Load ✓ Easy-Load II​	GY-06442-13	GY-06442-14	GY-06442-16	GY-06442-25	GY-06442-17	GY-06442-18
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Solve-Flex®	–– Complies with USP Class VI –– Excellent chemical resistance, especially with solvents ––Low spallation ––Fluoropolymer lined tubing	✓ Easy-Load ✓ Easy-Load II​	—	—	—	—	GY-96446-17	—
	3.6 m (12 ft)/pk
Tygon® E-LFL	–– Complies with USP Class VI, EP, FDA, EU Food, REACH, RoHS, ADCF ––Longest life of all Tygon formulations –– Broad chemical resistance	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-06440-13	GY-06440-14	GY-06440-16	GY-06440-25	GY-06440-17	GY-06440-18
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
Tygon E-Food (B-44-4X)	–– Complies with FDA, EU Food, NSF, 3A,REACH, RoHS, ADCF –– Smooth inner surface unaffected by commercial sanitizers –– Nontoxic` will not affect taste or odor	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-06418-13	GY-06418-14	GY-06418-16	GY-06418-25	GY-06418-17	GY-06418-18
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Tygon E-Lab (E-3603)	–– Complies with USP Class Vl, FDA, EU Food, NSF, REACH, RoHS, ADCF ––Ideal for general transfer applications –– Nonaging, nonoxidizing, low gas permeability	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-06509-13	GY-06509-14	GY-06509-16	GY-06509-25	GY-06509-17	GY-06509-18
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Tygon Fuel & Lubricant (F-4040-A)	–– Complies with REACH, RoHS, ADCF –– Specially formulated to transport hydrocarbons, petroleum products, and distillates –– Low gas permeability	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-06401-13	GY-06401-14	GY-06401-16	GY-06401-25	GY-06401-17	GY-06401-18
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Tygon Chemical (2001)	–– Complies with FDA 21 CFR 175.300, REACH, RoHS, ADCF –– Best chemical resistance of Tygon formulations –– Plasticizer-free with low gas permeability	✓ Easy-Load ✓ Easy-Load II	GY-06475-13	GY-06475-14	GY-06475-16	GY-06475-25	GY-06475-17	GY-06475-18
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Norprene® (A-60 G)	–– Complies with NSF, REACH, RoHS ––Up to 10,000 hours of tubing life –– Excellent choice for pressure/vacuum applications	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-06404-13	GY-06404-14	GY-06404-16	GY-06404-25	GY-06404-17	GY-06404-18
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Norprene Food (A 60 F)	–– Complies with FDA, 3A, NSF, REACH, RoHS ––I deal for high-temperature food applications –– Resists heat, ozone, acids, and alkalis	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-06402-13	GY-06402-14	GY-06402-16	GY-06402-25	GY-06402-17	GY-06402-18
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Viton®	–– Complies with FDA, ADCF –– Perfect for applications where FDA and chemical compatibility is needed –– Resists corrosives, solvents, and oils at elevated temperatures	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-96412-13	GY-96412-14	GY-96412-16	GY-96412-25	GY-96412-17	GY-96412-18
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
