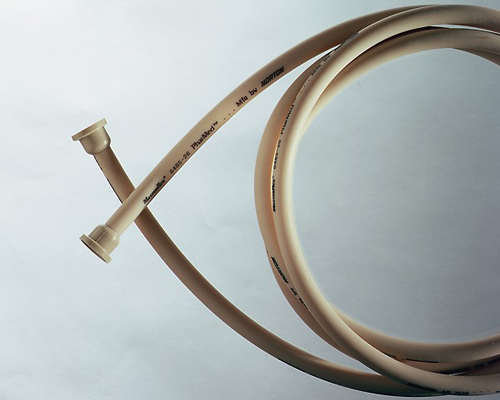

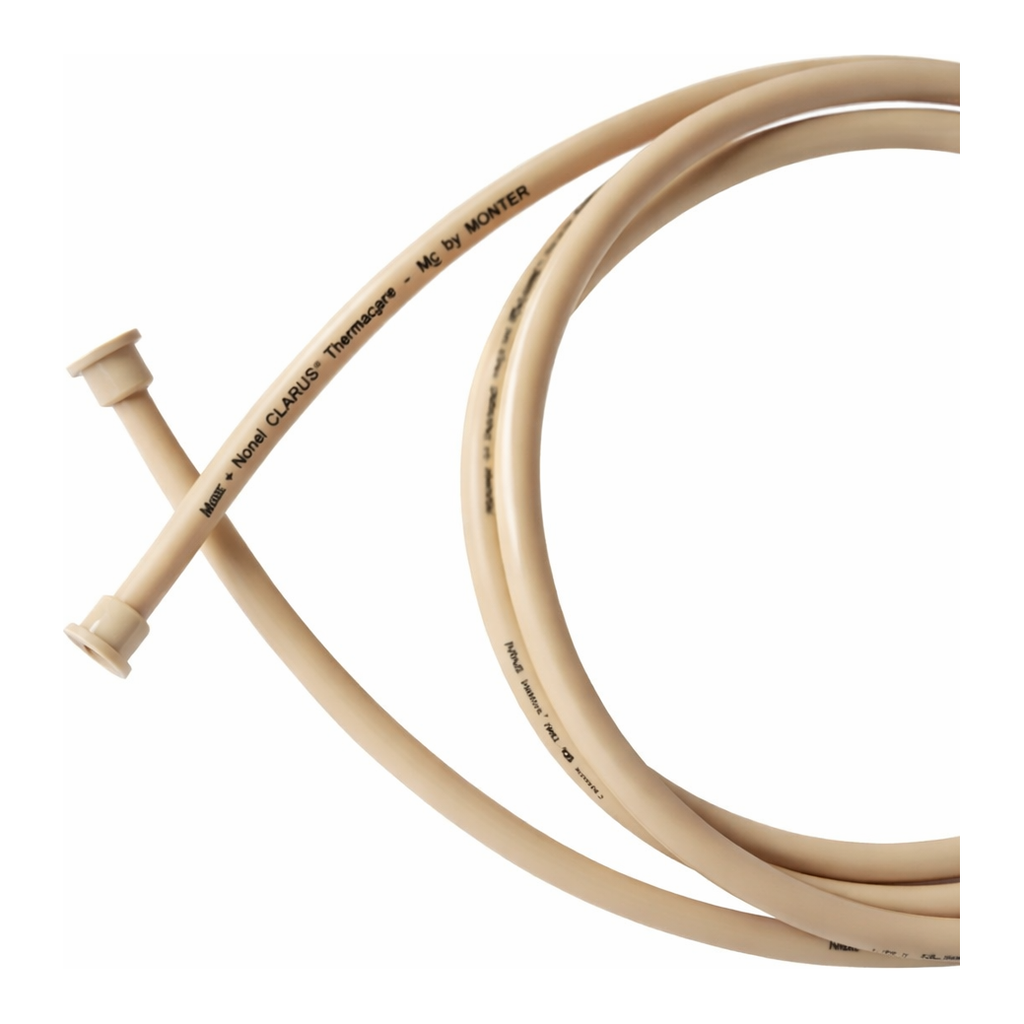

L/S® Sanitary Pump Tubing Assemblies

thumbnail
견적요청
채팅 문의 하기 버튼을 눌러 판매업체와 실시간 채팅해보세요.

주요특징

  • Get quicker connection of tubing
  • Meets stringent demands of biotechnology, pharmaceutical, and the food, beverage, and dairy processing industries
  • Smooth, pre-molded tubing ends allow quick connection to an adapter or to another length of sanitary tubing
  • Connectors help maintain cleanliness and purity of your fluids
  • Sanitary tubing is less thermally conductive than metallic tubing systems and not subject to galvanic action, RFI, or EMI
  • All L/S platinum-cured silicone and PharMed® BPT sanitary tubing conforms to USP Class VI and FDA standards
  • FREE Certificate of resin or elastomer Compliance is available upon request
  • 96100-13, 96100-14, 96100-16, 96100-25, 96100-17, 96100-18, 96100-15, 96100-24

L/S® Sanitary Pump Tubing Assemblies
Get quicker connection of tubing

**
Features/Benefits**

  • Meets stringent demands of biotechnology, pharmaceutical, and the food, beverage, and dairy processing industries
  • Smooth, pre-molded tubing ends allow quick connection to an adapter or to another length of sanitary tubing
  • Connectors help maintain cleanliness and purity of your fluids
  • Sanitary tubing is less thermally conductive than metallic tubing systems and not subject to galvanic action, RFI, or EMI
  • All L/S platinum-cured silicone and PharMed® BPT sanitary tubing conforms to USP Class VI and FDA standards
  • FREE Certificate of resin or elastomer Compliance is available upon request

How to Connect Tubing

  • Each length of tubing features pre-molded ends. Tubing with 1⁄2" mini-connections uses molded-in gasket at one end to ensure quality seal
  • Pre-molded ends allow quick connection to an adapter or additional length of sanitary tubing. Order adapters below, right.
  • Join 1⁄2" mini-connection to another 1⁄2" mini-connection, adapter, or to your system with a push/pull clamp

*How to Order
*
1. Order your desired tubing formulation and length. Choose tubing size based on flow range
2. Order PVDF push/pull clamp (separately below).
3. Order silicone or Viton® gaskets as needed to connect to your system or to adapters
4. Select sanitary adapters as needed

Tubing size Platinum-cured silicone
(96410-series)
5-ft (1.5-m) length
Platinum-cured silicone
(96410-series)
10-ft (3-m) length
PharMed BPT
(06508-series)
5-ft (1.5-m) length
PharMed BPT
(06508-series)
10-ft (3-m) length
L/S Precision sanitary pump tubing
L/S 13 GY-96100-13 GY-96101-13 GY-96112-13 GY-96113-13
L/S 14 GY-96100-14 GY-96101-14 GY-96112-14 GY-96113-14
L/S 16 GY-96100-16 GY-96101-16 GY-96112-16 GY-96113-16
L/S 25 GY-96100-25 GY-96101-25 GY-96112-25 GY-96113-25
L/S 17 GY-96100-17 GY-96101-17 GY-96112-17 GY-96113-17
L/S 18 GY-96100-18 GY-96101-18 GY-96112-18 GY-96113-18
L/S High-Performance Precision sanitary pump tubing
L/S 15 GY-96100-15 GY-96101-15 GY-96112-15 GY-96113-15
L/S 24 GY-96100-24 GY-96101-24 GY-96112-24 GY-96113-24
L/S 35 GY-96112-35 GY-96113-35
L/S 36 GY-96112-36 GY-96113-36

Accessories for L/S Sanitary Pump Tubing

**
GY-31201-88 Push/pull clamp, PVDF. For quick joining of two 1⁄2" mini connections
Gaskets. Order gaskets to join 1⁄2" mini connection without

molded-in gasket to another 1⁄2" mini connection without
molded-in gasket or to an adapter (sold separately at right).
GY-30548-00 Silicone gasket** for use with sanitary silicone (platinum-cured) tubing. Pack of 10
GY-30548-20 Viton® gasket for use with sanitary PharMed® BPT tubing. Pack of 10
Tubing size Platinum-cured silicone
(96410-series)
5-ft (1.5-m) length
Platinum-cured silicone


(96410-series)
10-ft (3-m) length
PharMed BPT
(06508-series)
5-ft (1.5-m) length
PharMed BPT
(06508-series)
10-ft (3-m) length
L/S Precision sanitary pump tubing
L/S 13 GY-96100-13 GY-96101-13 GY-96112-13 GY-96113-13
L/S 14 GY-96100-14 GY-96101-14 GY-96112-14 GY-96113-14
L/S 16 GY-96100-16 GY-96101-16 GY-96112-16 GY-96113-16
L/S 25 GY-96100-25 GY-96101-25 GY-96112-25 GY-96113-25
L/S 17 GY-96100-17 GY-96101-17 GY-96112-17 GY-96113-17
L/S 18 GY-96100-18 GY-96101-18 GY-96112-18 GY-96113-18
L/S High-Performance Precision sanitary pump tubing
L/S 15 GY-96100-15 GY-96101-15 GY-96112-15 GY-96113-15
L/S 24 GY-96100-24 GY-96101-24 GY-96112-24 GY-96113-24
L/S 35 GY-96112-35 GY-96113-35
L/S 36 GY-96112-36 GY-96113-36
