SPYDAQ-ACC-08-02 Dual Temperature Sensor (-80°C to +200°C)
Dual Temperature Sensor For SPYDAQ-1010 Transmitters

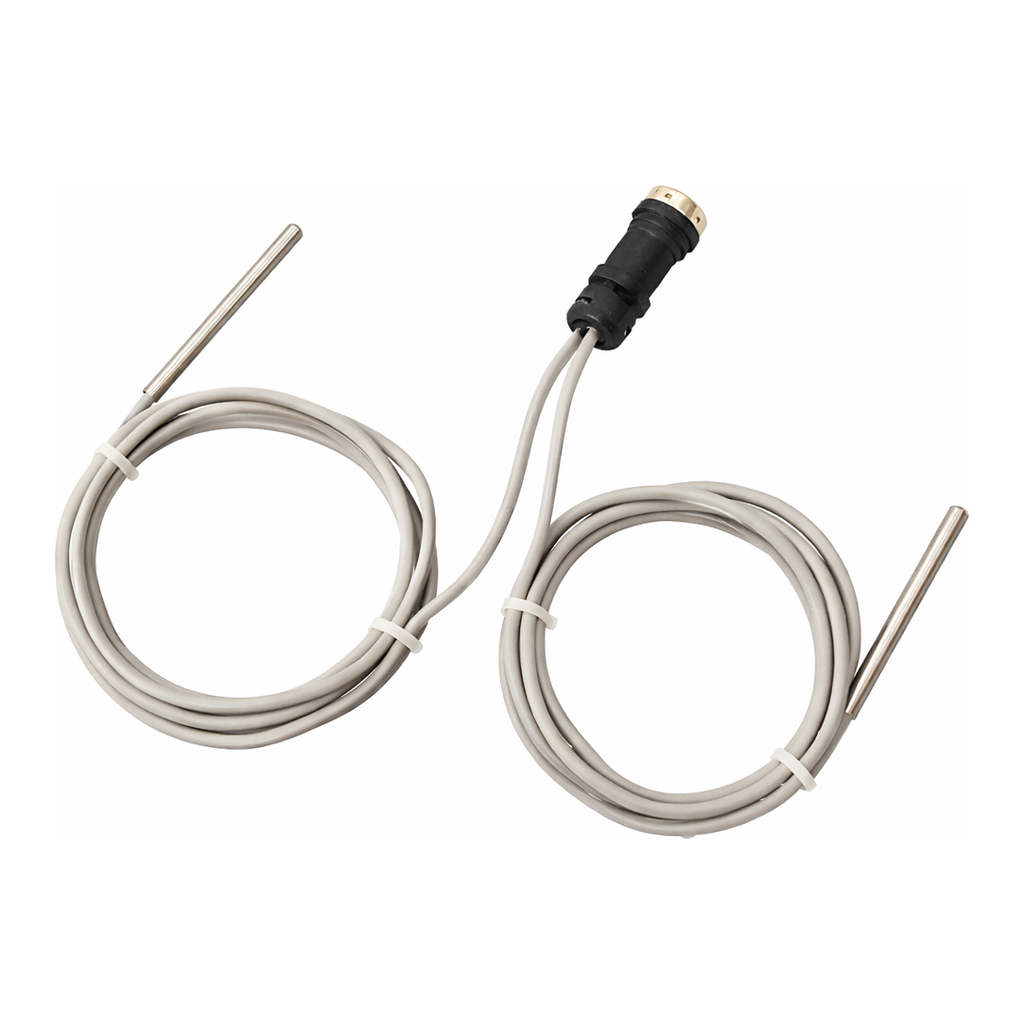

Dual temperature sensor for use with the SPYDAQ-1010 dual transmitter. Two sensors, 75mm long x 6mm diameter on 1.5m flat PTFE flying leads. There are two sensors labelled "Sensor A" and "Sensor C".
Sensor A Measuring Range: -40°C to +105°C (-40°F to +221°F)
Sensor C Measuring Range: -80°C to +200°C (-112°F to +392°F)
SPYDAQ-ACC-08-01 is identical but operates from -40°C to +105°C on sensor A and -50°C to +200°C on sensor C.
If you'd like further information, please contact us on +44 1684 299399 or click here.
Specification
| Measuriing Range | Sensor A: -40°C to +105°C (-40°F to +221°F) Sensor C: -80°C to +200°C (-112°F to +392°F) |
| Accuracy | ±0.5°C from 0°C to +50°C. ±1°C outside of this range for the internal sensor - Sensor A ±0.3°C ±0.35°% of reading for the external sensor - Sensor C |
| Material | Sheath: 308 Stainless Steel. Leads: PTFE |
| Dimensions | 75mm Long x 6mm Diameter supplied with 1.5m flying lead. Flying lead only 1mm thick. |
| Warranty | 1 Year |
