Features
Cost-saving and environmentally friendly fresh frozen plasma storage
This MDF-U5412 Biomedical Plasma Freezer provides an ideal freezing environment for the preservation of vaccines, blood plasma, test samples and specimens. The MDF-U5412 Biomedical Plasma Freezer has a storage environment with excellent safety features, easy operability, and a lot of other features. The MDF-U5412 Biomedical Plasma Freezer offers unsurpassed reliability and functionality for short or intermediate term storage at temperatures as low as -40°C.
- Double outer doors.
- Full-height storage containers on each shelf.
- Cooling tubes under every shelf.
- Direct cooling system for stable temperature control.
- Fine-controllable refrigeration circuit with valve.
Large storage capacity
- 300ml Fresh frozen plasma bag x 280 pieces.
The MDF-U5412 is certified as a Class IIa Medical Device.
Benefits
- Built-in door latch for each of the double outer doors
- Simple calibration via the control panel
- Visual and audible alarm system
- A safe, secure and easy to access unit to store your samples
- High freezing power
- Environment friendly
Features
- Stable & Uniform Temperature Design
- Double outer doors
- Full-height storage containers on each shelf
- Cooling tubes under every shelf
- Direct cooling system for stable temperature control
- Fine-controllable refrigeration circuit with valve
- Large Storage Capacity
- User Friendly Design
- Built-in door latch for each door
- Easy calibration through the control panel
- Visual and Audible Alarm System
- High & Low temperature alarm
- Power failure alarm with non-volatile memory back up
- Self-diagnostic system
- Remote alarm contact
- Re-activating buzzer, lamp and remote alarm contact (30min. after buzzer stops)
- Standard door lock and independent padlock hasp door latches for extra security
- Remote monitoring by Data Acquisition System (Option)
- 1/7/30 days circular recorder (Option)

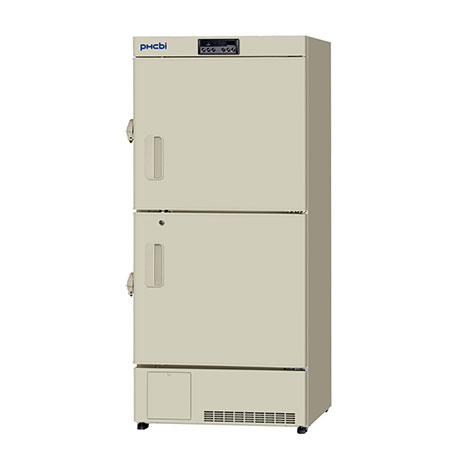

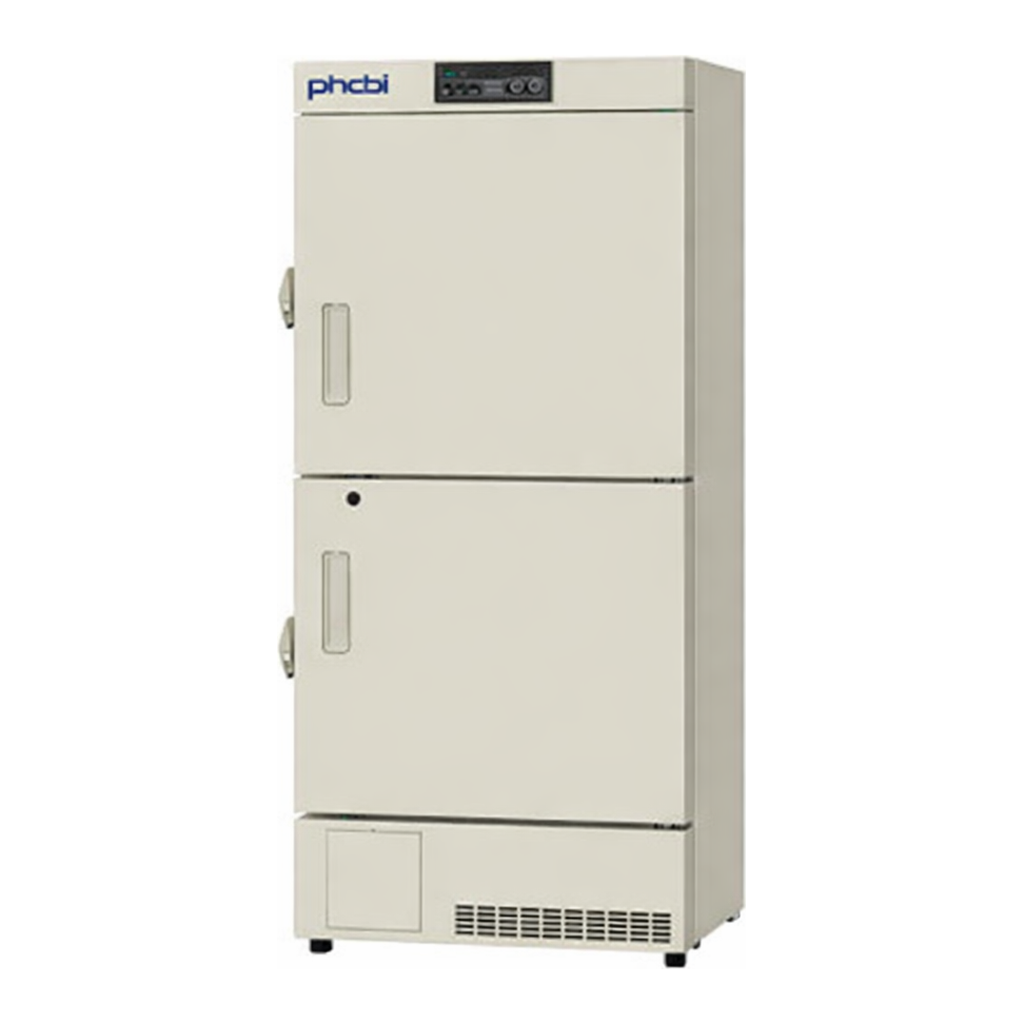

Product Photos

Specifications
|
|
External Dimensions (W x D x H) |
804 x 772 x 1802 mm |
Internal Dimensions (W x D x H) |
658 x 607 x 1272 mm |
Volume |
482 litres |
Net Weight |
134 kg |
Capacity (Aluminium Racks 2” Boxes) |
- |
Capacity (Stainless Steel Racks 2” Boxe) |
- |
Cooling Performance |
-40 °C |
Temperature Setting Range |
-18 to -45 °C |
Temperature Control Range |
-20 to -40 °C |
Controller |
Micrprocessor |
Display |
LED |
Temperature Sensor |
Thermistor |
Refrigeration System |
Direct |
Compressors |
400 W |
Refrigerant |
|
Insulation Material |
PUF |
Insulation Thickness |
70 mm |
Exterior Material |
Painted Steel |
Interior Material |
Styrol resin |
Outer Doors/Lid |
- |
Outer Door Lock |
Y |
Inner Doors/Lid |
- |
Shelves |
|
Max. Load - Per Shelf |
U:30/L:30 kg |
Max. load - Total |
100 kg |
Vacuum Release Port |
- |
Access Port |
- |
Access Port Position |
Back |
Access Port Diameter |
30 |
Casters |
4 (2 leveling feet) |
Power Failure |
V-B-R |
High Temperature |
V-B-R |
Low Temperature |
V-B-R |
Filter |
- |
Door Open |
- |
Power Supply |
Local |
Frequency |
Local |
Noise Level |
42 dB [A] |
Accessories
|
|
Temperature recorders |
|
- Circular type (recorder housing) |
MTR-G85 (MPR-S7) |
- Continuous strip type (recorder housing) |
MTR-4015LH (MPR-S30) |
RS485 Interface Module |
MTR-480 |
