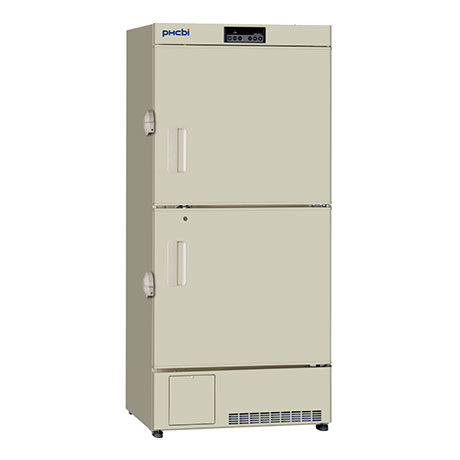

MDF-U5312 Biomedical -30°C Freezers
Features
Same level of reliability with even better performance and efficiency
The PHCbi MDF-U5312 Biomedical Freezer offers outstanding reliability and performance required in a wide variety of storage and research applications.
The freezer provides effective storage of life-saving vaccines and samples for diagnosis. They can also be used for storage of enzymes for genetic research, as well as culture media, reagents and samples for testing. BHCbi Biomedical freezers are also ideal for industrial aging and temperature tests. As a storage environment, with excellent safety and other easy-to-use features, these freezers offer unsurpassed reliability and functionality.
PHCbi also offers the MDF-MU539 Biomedical -30°C Freezer, which has a capacity of 504 litres.
Benefits
- Equipped with separate doors that suppress the leakage of cold air during opening and closing of the doors, and manual defrosting that helps avoid temperature impact on the samples. PHCbi MDF-U5312 maintains the quality of the samples during preservation.
- Large-capacity, economical and space-saving model
- Enhanced operation by various function and chassis structure
Features
- Large-capacity but economical and space-saving
- Door latch with provision for a padlock for extra protection of samples
- Direct cooling through freezer circuits under each shelf for greater uniformity
- Universal keyed lock for added security
- Equipped with convenient storage drawers as standard
- Temperature recorder (optional)
- Front-mounted display/control panel located at convenient height for easy access
- Insulated door with gasket for sample protection and uniformity
- Door frame ‘Hot-line’ and gasket design prevents ice build-up and reduces maintenance.
- Security functions that help protect valuable samples with a temperature control capability that inhibits the change in temperature inside the chamber, and an alarm/security function that prevents errors, the unit maintains the quality of the preserved samples.
- Four casters and two adjustable levelling feet for easy installation

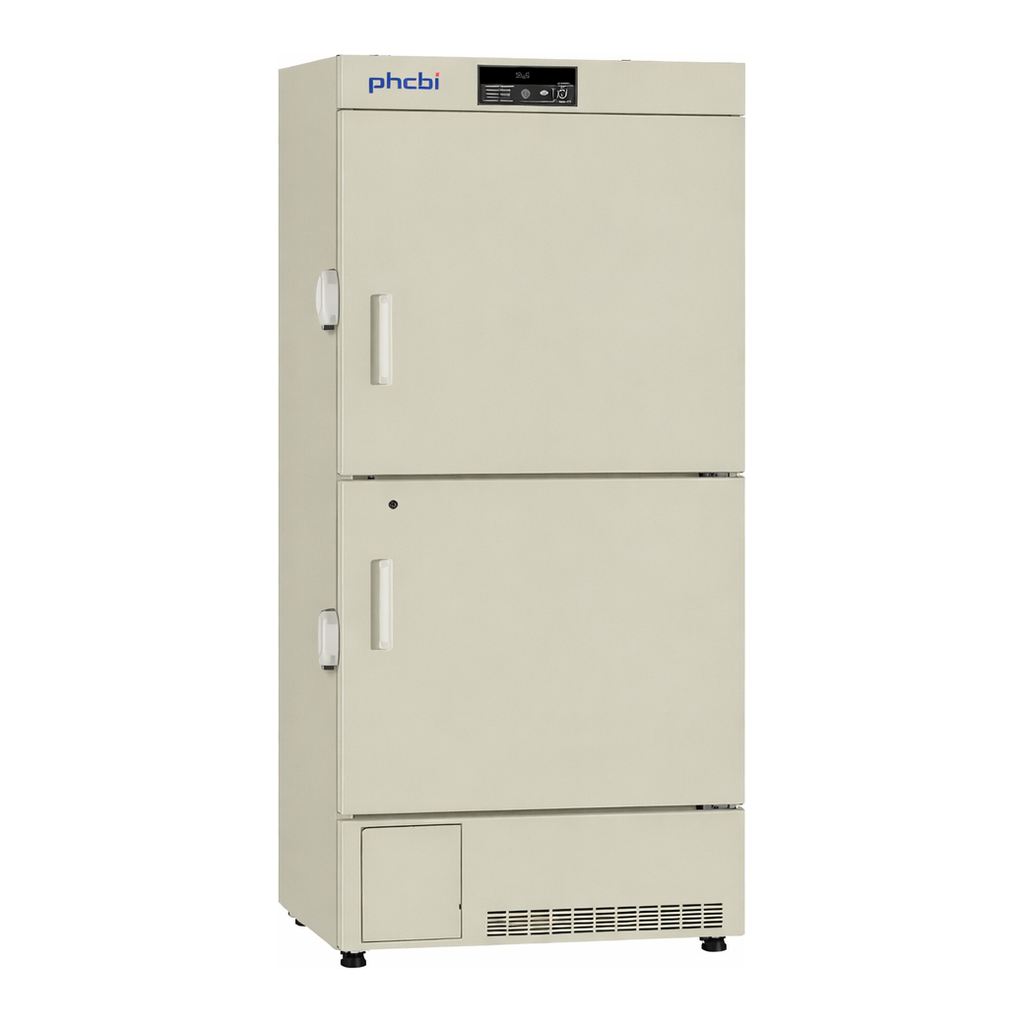

Product Photos
Specifications
| External Dimensions (W x D x H) | 804 x 772 x 1802 mm |
| Internal Dimensions (W x D x H) | 658 x 607 x 1272 mm |
| Volume | 482 litres |
| Net Weight | 132 kg |
| Capacity (Aluminium Racks 2” Boxes) | - |
| Capacity (Stainless Steel Racks 2” Boxe) | - |
| Cooling Performance | -30 °C |
| Temperature Setting Range | -18 to -35 °C |
| Temperature Control Range | -20 to -30 °C |
| Controller | Microcomputer control system |
| Display | LED |
| Temperature Sensor | Thermistor |
| Refrigeration System | Direct cooling system |
| Compressors | 450 W |
| Refrigerant | HFC |
| Insulation Material | PUF |
| Insulation Thickness | - |
| Exterior Material | Painted Steel |
| Interior Material | Styrol resin |
| Outer Doors/Lid | 2 |
| Outer Door Lock | Y |
| Inner Doors/Lid | - |
| Shelves | Storage containers (small x 6, large x 4) |
| Max. Load - Per Shelf | - |
| Max. load - Total | - |
| Vacuum Release Port | - |
| Access Port | 1 |
| Access Port Position | Back |
| Access Port Diameter | 30 |
| Casters | 4 (2 leveling feet) |
| Power Failure | V-B-R |
| High Temperature | V-B-R |
| Low Temperature | V-B-R |
| Filter | - |
| Door Open | - |
| Power Supply | Local |
| Frequency | Local |
| Noise Level | 40 dB [A] |
Accessories
| Temperature recorders | |
| - Circular type | MTR-G85C-PE, MTR-G85A-PA |
| - Recorder housing | MPR-S7-PW (for MTR-G85 series), MPR-S30-PW (for MTR-4015LH-PE) |
| - Chart paper | RP-G85-PW (for MTR-G85 series), RP-40-PW (for MTR-4015LH-PE) |
| -Ink pen | PG-R-PW(for MTR-G85 series) |
| - Continuous strip type | MTR-4015LH-PE |
| - Communications interface | MTR-480-PW, MTR-L03-PW (for Data acquisition system MTR-5000 user only) |

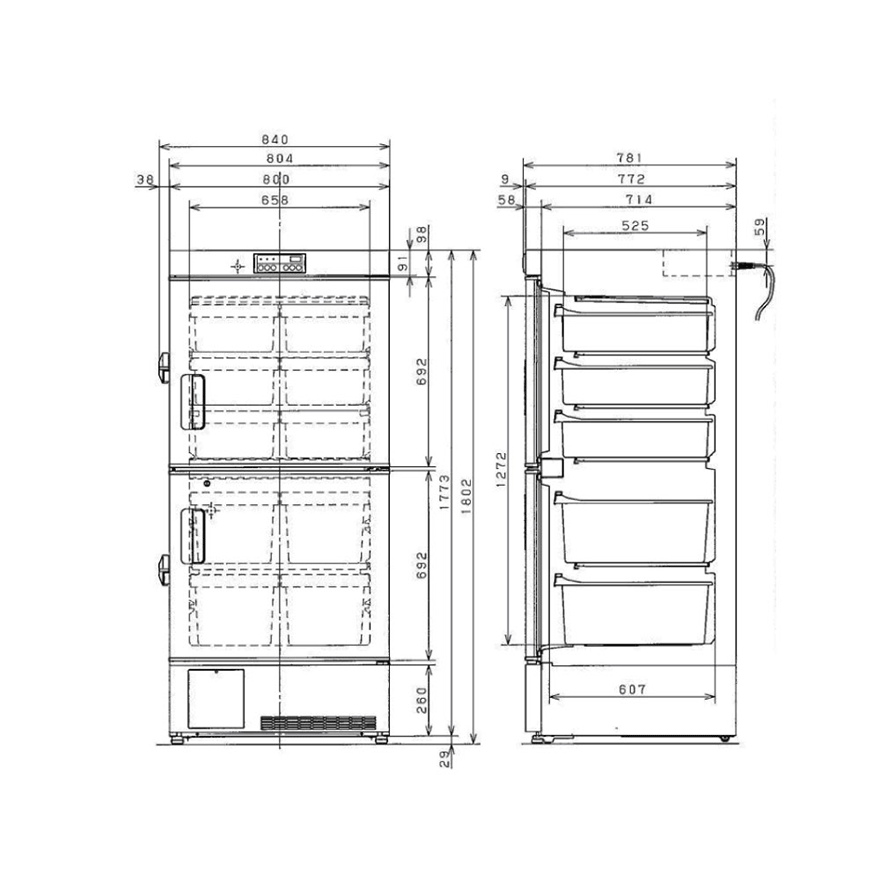

Dimensions
