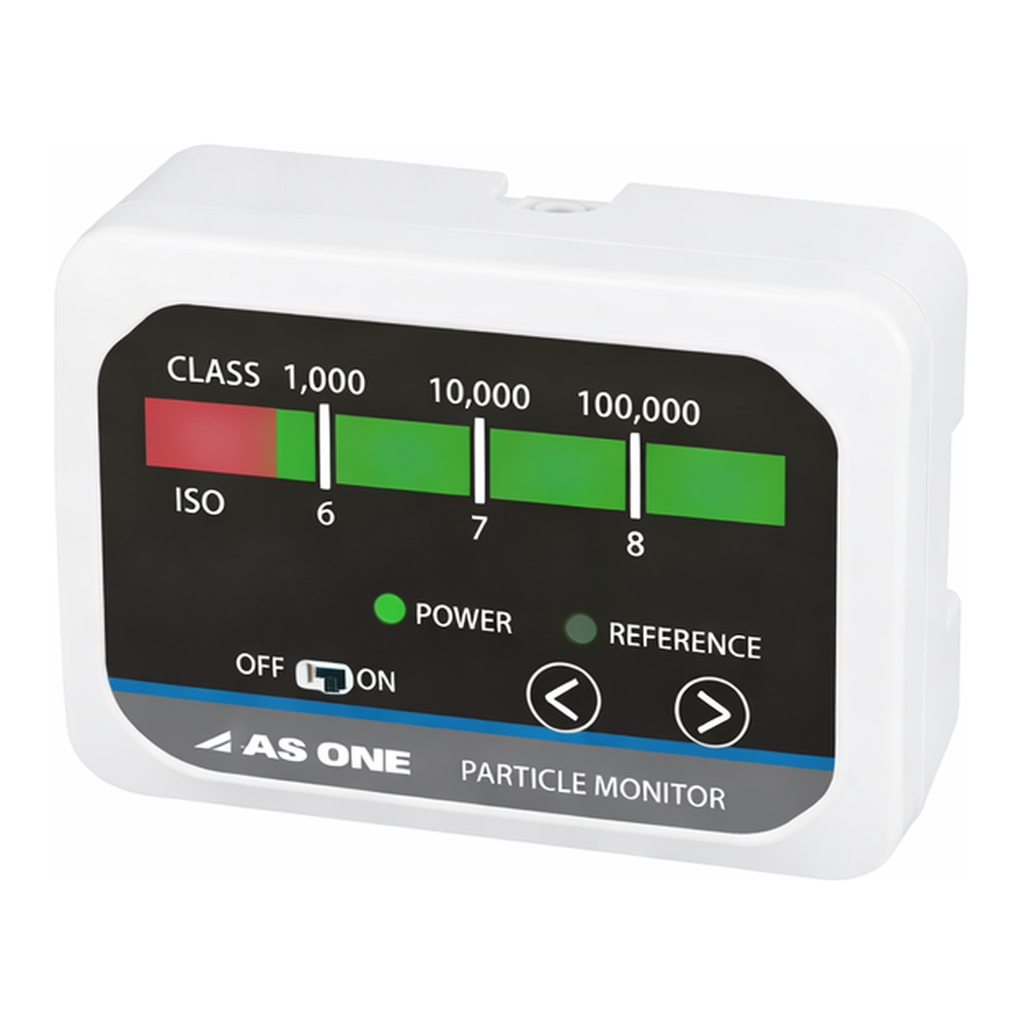

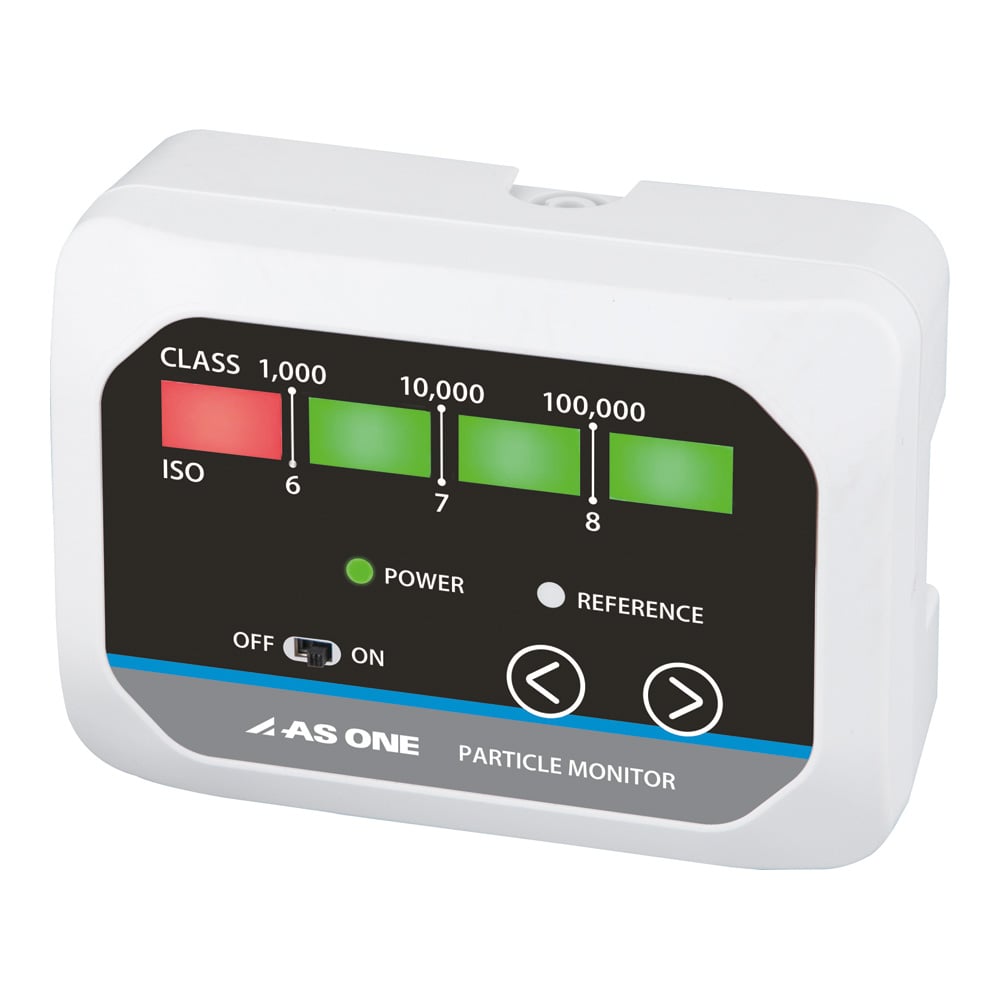

AS ONE 4-3762-02-20 Particle Monitor Calibration Certaificate　PA03H

* Demo Unit

Features

• * Economy type capable of multi-point measurement and constant monitoring * Visualization of air cleanliness control in factories, manufacturing processes for precision parts processes, and work environments that require cleanliness.
• 4 levels of LEDs indicate cleanliness class 1,000~100,000.
• Particles can be recorded using dedicated software (can be output externally).

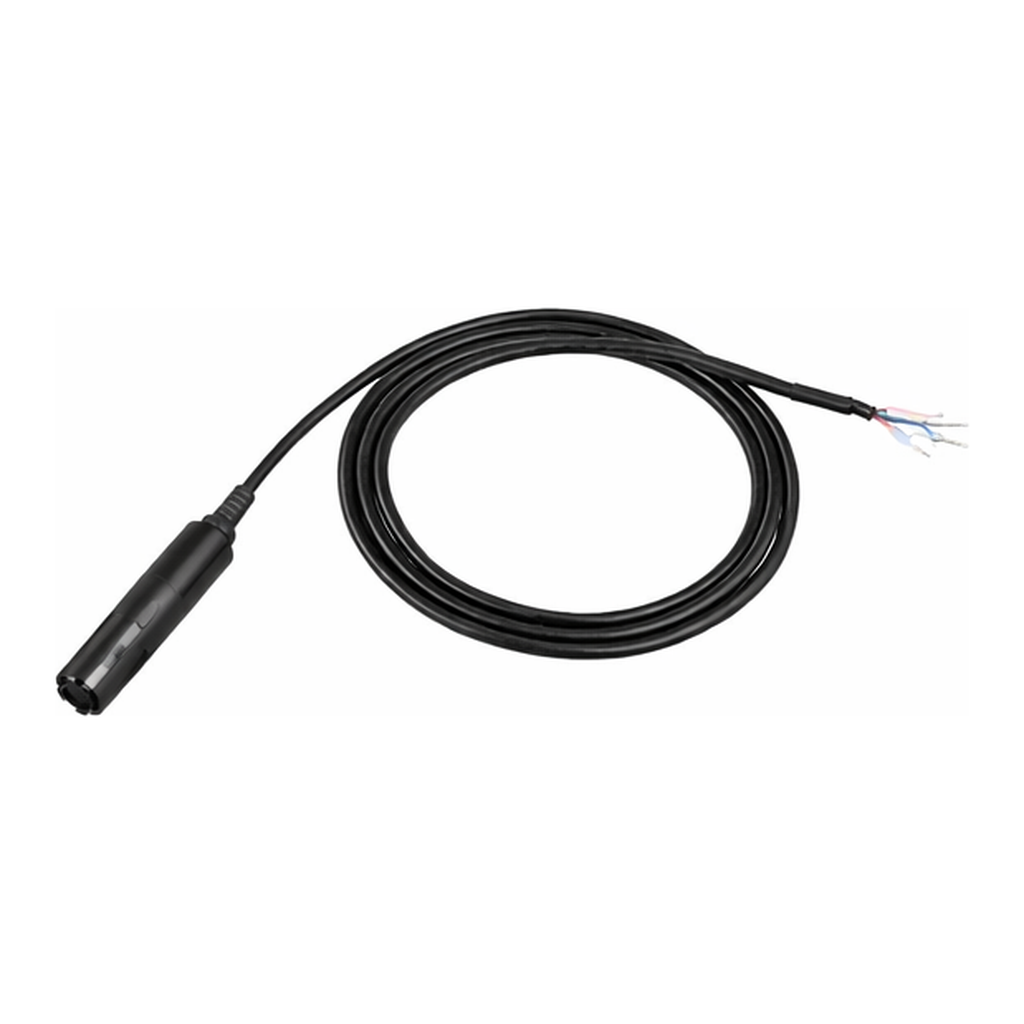

• An optional temperature and humidity sensor is connected for recording with dedicated software (external output available).
• Very compact and easy to install.

Spec

• Detected particle size: 0.3 micrometers or more

• Size (mm): 120 x 46.5 x 87

• Measurement system: Light scattering system

• Light source: laser diode

• Sampling Method: Suction by Fan

• Detection concentration: Class 1,000 ~ 100,000 * CLass 1,000 is a reference value

• Output units: pcs/m3 (default), pcs/cf, pcs/L

• Sensor output value: 60 s average value

• Data update time: 1s

• Power supply voltage: 12 V to 24 V

• Weight: approximately 0.21 kg

• Temperature and humidity sensor cable length: 1 meter

• Accessories: AC adapter

• Detected particle size: 0.3 micromum or more

• Temperature and humidity measuring function: 0 (* Numbers are displayed using evaluation software.)

• Reference Indication: 0 (more than a few um)

• Analog output: x

• Digital communication: 0 (Ethernet, Wi-Fi)

• Alarm output: 0

• *Proof of Calibration products are our company`s original service.

• Calibration is only for the sensor unit.

• < a href=https://axel.as-1.co.jp/images/pdf/pb/4-3762/Setup\_v80\_7\_2.zip rel=noopener nofoLLow target=\_bLank > Download the dedicated application (v 80 _ 7 _ 2) here < /a >

• < a href=https://axel.as-1.co.jp/images/pdf/pb/4-3762/mac\_ip\_display\_mode\_202211.xlsx rel=noopener nofollow target=\_blank > Read more about MAC and IP display modes here < /a >
