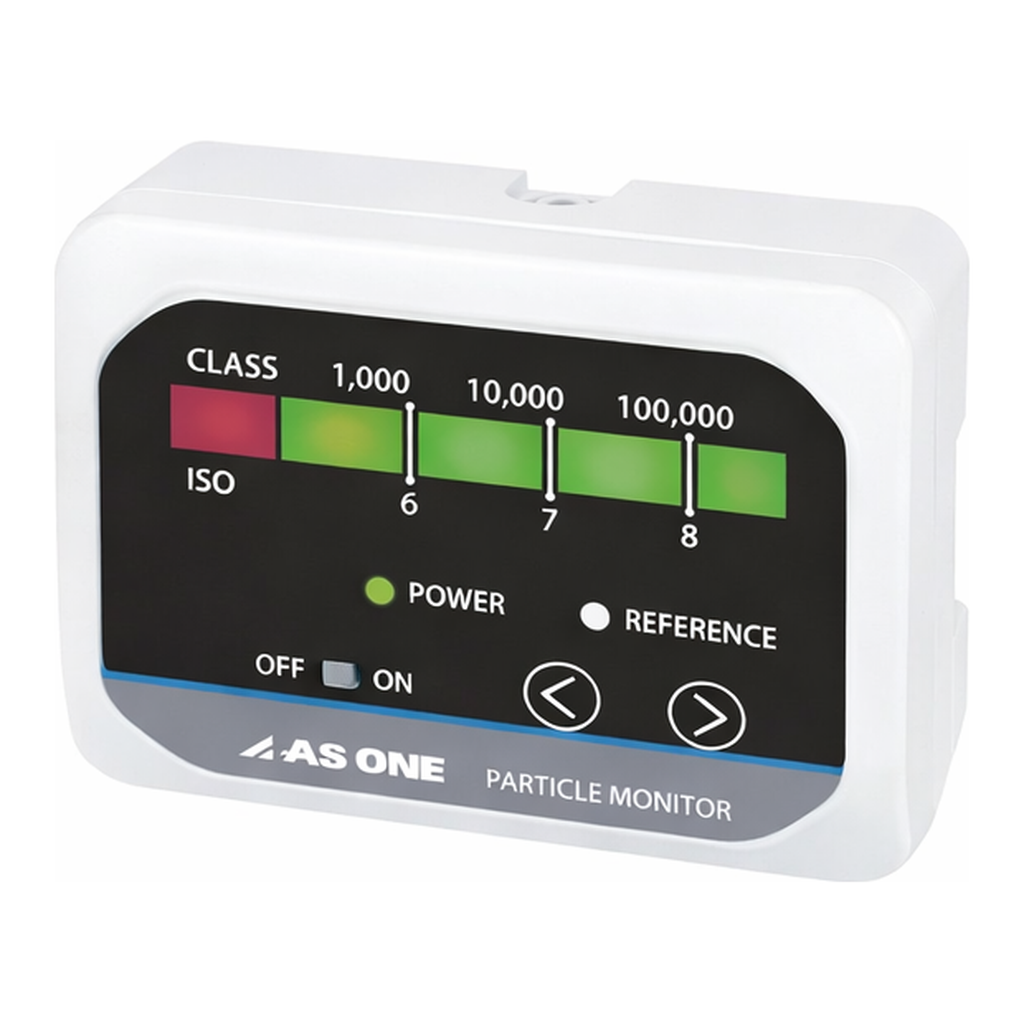

AS ONE 4-3762-01-20 Particle Monitor Calibration Certaificate　PA03L

* Demo Unit

Features

• * Economy type capable of multi-point measurement and constant monitoring * * Monitor capable of measuring airborne particles.
• It enables visualization of air cleanliness control in factories, in the manufacturing process of precision parts processes, and in work environments where cleanliness is required.
• 4 levels of LEDs indicate cleanliness class 1,000~100,000.
• * Contributes to the visualization of pollution levels in clean rooms, manufacturing processes and other environments that require contamination measures.
• Very compact and easy to install.

Spec

• Detected particle size: 0.3 micrometers or more
• Size (mm): 120 x 46.5 x 87
• Measurement system: Light scattering system
• Light source: laser diode
• Sampling Method: Suction by Fan
• Detection concentration: Class 1,000 ~ 100,000 * CLass 1,000 is a reference value
• Output units: pcs/m3 (default), pcs/cf, pcs/L
• Sensor output value: 60 s average value
• Data update time: 1s
• Power supply voltage: 12 V to 24 V
• Weight: approximately 0.21 kg

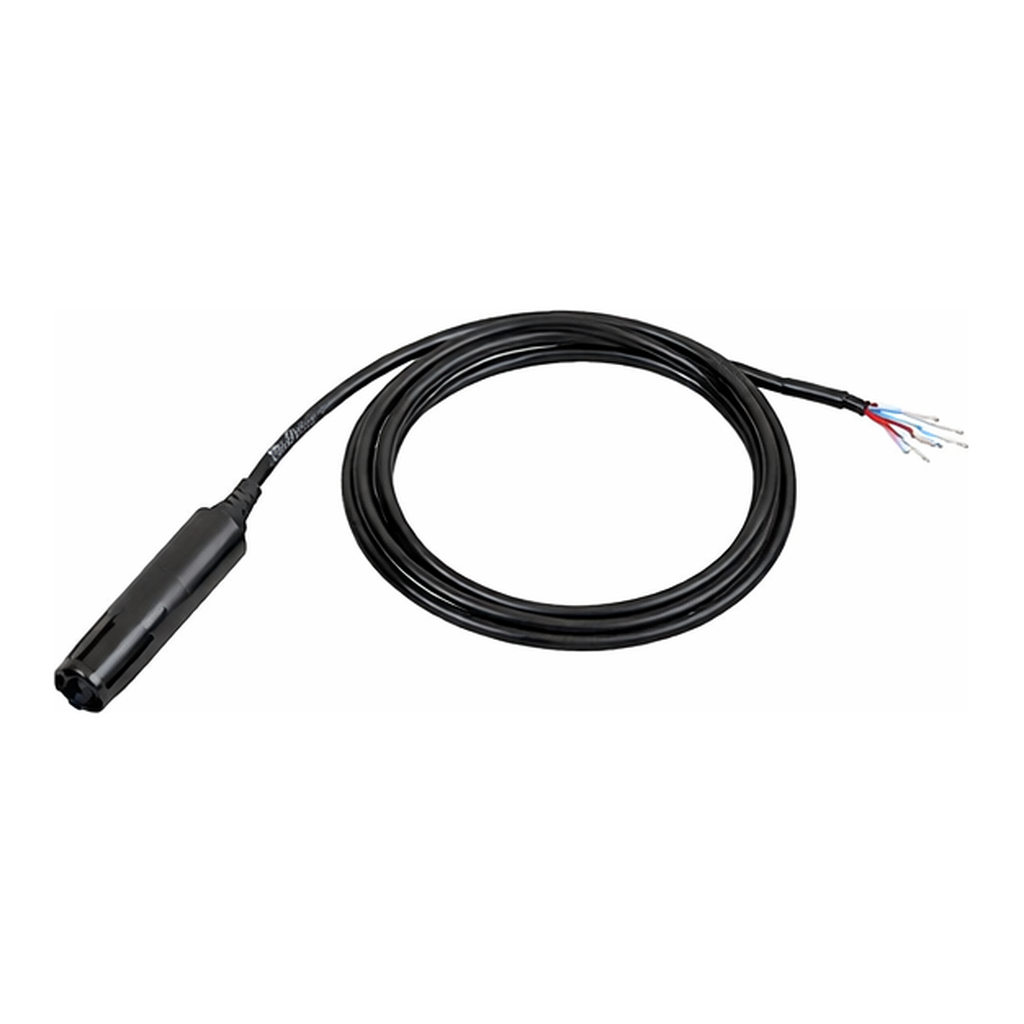

• Temperature and humidity sensor cable length: 1 meter
• Accessories: AC adapter
• Detected particle size: 0.3 micromum or more
• Temperature and humidity measurement function: x
• Reference Indication: 0 (more than a few um)
• Analog output: 0
• Digital communication: x
• Alarm output: 0
• *Proof of Calibration products are our company`s original service.
• Calibration is only for the sensor unit.
