■고급형 고진공
■ 과부하 보호장치, 역류방지장치 내장
■ Gas Ballast Valve 부착
■ 저소음 저진동형, 강제공냉, 급유방식
■ Double Geage Vacuum Pump
■ Thermal Protector Equiped
■ SUS 손잡이 장착
■ 슬러지 오염방지 필터 장착
■ Vacuumer®
|
|
|
|
Cat. No |
Model |
Pumping Speed |
Motor Power |
--- |
--- |
--- |
--- |
P06-62-702 |
VOP-50 |
50 L/min |
200 W |
P06-62-706 |
VOP-60 |
60 L/min |
|
P06-62-710 |
VOP-100 |
120 L/min |
400 W |
P06-62-715 |

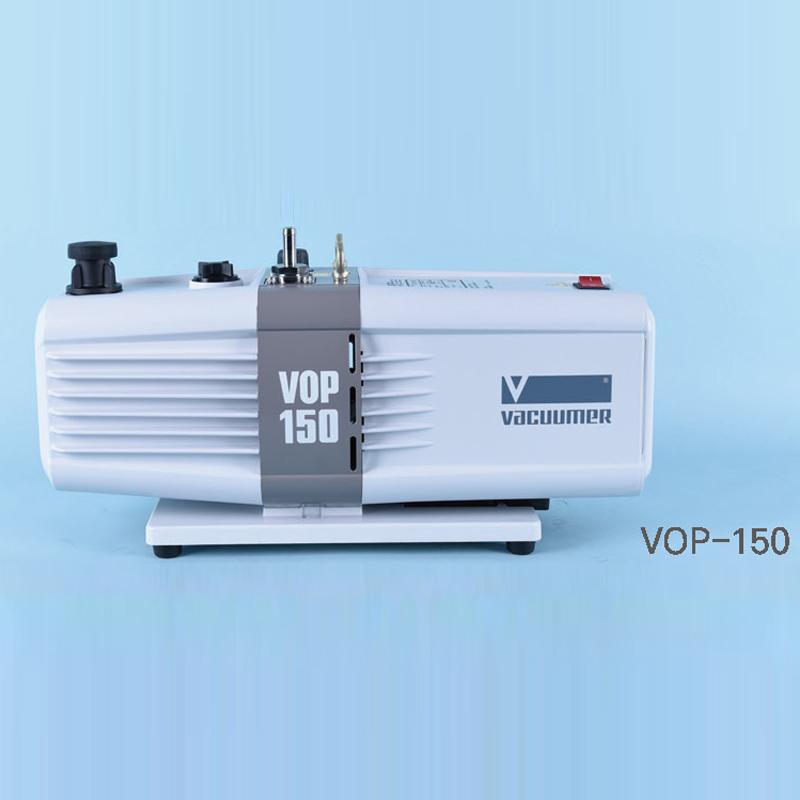

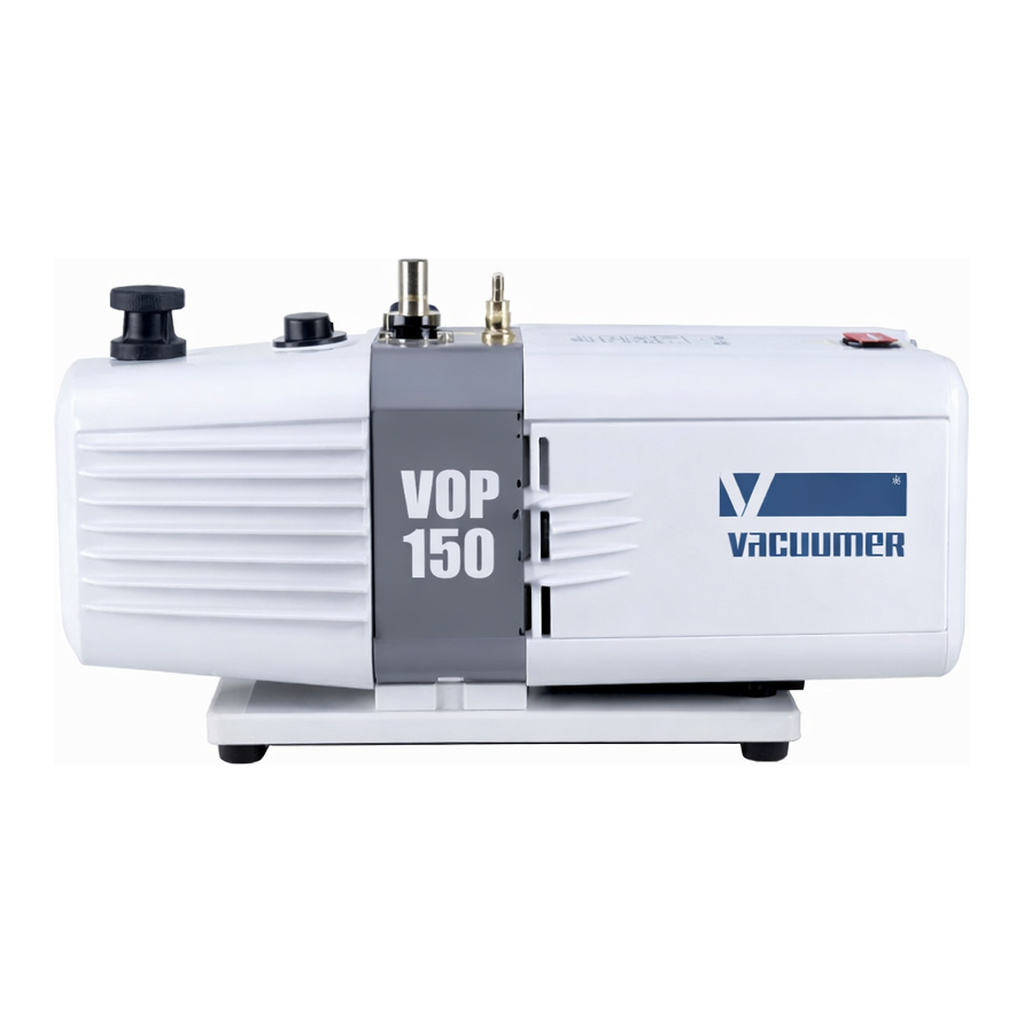

VOP-150 |
200 L/miin |
|
P06-62-720 |
VOP-200 |
260 L/min |
550 W |
Cat. No |
P06-62-702 |
P06-62-706 |
P06-62-710 |
P06-62-715 |
P06-62-720 |
Model |
VOP-50 |
VOP-60 |
VOP-100 |
VOP-150 |
VOP-200 |
--- |
--- |
--- |
--- |
--- |
--- |
Pumping Speed(50/60Hz) |
42/50 L/min |
50/60 L/min |
100/120 L/min |
170/200 L/min |
220/260 L/min |
--- |
--- |
--- |
--- |
--- |
--- |
Ultimate Pressure |
6.7×10-2 (6.7×10-1) Pa |
|
|
|
|
--- |
--- |
--- |
--- |
--- |
--- |
Motor Power |
200 W |
|
400 W |
550 W |
|
--- |
--- |
--- |
--- |
--- |
--- |
Motor Speed (50/60 Hz) |
1430 / 1730 rpm |
|
|
|
|
--- |
--- |
--- |
--- |
--- |
--- |
Oil Capacity |
800ml |
|
900 ml |
1 L |
1.1 L |
--- |
--- |
--- |
--- |
--- |
--- |
Inlet / Outlet |
NW25 / Hose Nipple OD12 mm 포함 |
|
|
NW25 / Hose Nipple OD15 mm 포함 |
|
--- |
--- |
--- |
--- |
--- |
--- |
Temp. Range |
7 ~ 40℃ |
|
|
|
|
--- |
--- |
--- |
--- |
--- |
--- |
Weight |
17kg |
|
25kg |
28.5kg |
30kg |
--- |
--- |
--- |
--- |
--- |
--- |
Size (w×d×h, mm) |
170×398×235 |
165 ×411×234 |
171×464×238 |
189×504×253 |
189×524×253 |
Voltage |
220V, 50/60Hz |
|
|
|
|
Oil Mist Trap for VOP, NW25
Cat. No |
Model |
적용기종 |
규격 |
P06-62-815 |
OMT-150P |
VOP-60, VOP-100 |
200 L/min 이하 |
P06-62-820 |
OMT-300P |
VOP-150, VOP-200 |
560 L/min 이하 |
● NW25 규격의 Oil Mist Trap 사용 가능
