Dosing Diaphragm Pump 다이아프램 도징 펌프, SIMDOS
상품 옵션 정보 | |||||||
---|---|---|---|---|---|---|---|
카탈로그 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
P06-200-659 | P06-200-659 Dosing Diaphragm Pump/Stainless Steel Head/0.03~20ml/min, 6 bar, 1/EA | 재고문의 | ea | 5,300,000원 | - | 5,830,000원 | |
P06-200-699 | P06-200-699 Dosing Diaphragm Pump/Stainless Steel Head/1~100ml/min, 6 bar, 1/EA | 재고문의 | ea | 5,300,000원 | - | 5,830,000원 | |
P06-200-656 | P06-200-656 Dosing Diaphragm Pump/PTFE Head/0.03~20ml/min, 6 bar, 1/EA | 재고문의 | ea | 4,050,000원 | - | 4,455,000원 | |
P06-200-696 | P06-200-696 Dosing Diaphragm Pump/PTFE Head/1~100ml/min, 6 bar, 1/EA | 재고문의 | ea | 4,050,000원 | - | 4,455,000원 | |
P06-200-653 | P06-200-653 Dosing Diaphragm Pump/PVDF Head/0.03~20ml/min, 6 bar, 1/EA | 재고문의 | ea | 2,360,000원 | - | 2,596,000원 | |
P06-200-693 | P06-200-693 Dosing Diaphragm Pump/PVDF Head/1~100ml/min, 6 bar, 1/EA | 재고문의 | ea | 2,360,000원 | - | 2,596,000원 | |
P06-200-650 | P06-200-650 Dosing Diaphragm Pump/PP Head/0.03~20ml/min, 6 bar, 1/EA | 재고문의 | ea | 2,190,000원 | - | 2,409,000원 | |
P06-200-690 | P06-200-690 Dosing Diaphragm Pump/PP Head/1~100ml/min, 6 bar, 1/EA | 재고문의 | ea | 2,190,000원 | - | 2,409,000원 |
■ Compact 사이즈로 사용 공간이 작으며 간단하고 직관적인 조작이 가능하여 편리함
■ PTFE 코팅으로 내화학성이 있어 부식성이 강한 유체사용에 이상적임
■ 액체 없이도 자체적으로 흡입이 가능한 Self-Priming 기능
■ 쉬운 Calibration
■ Protection class IP65

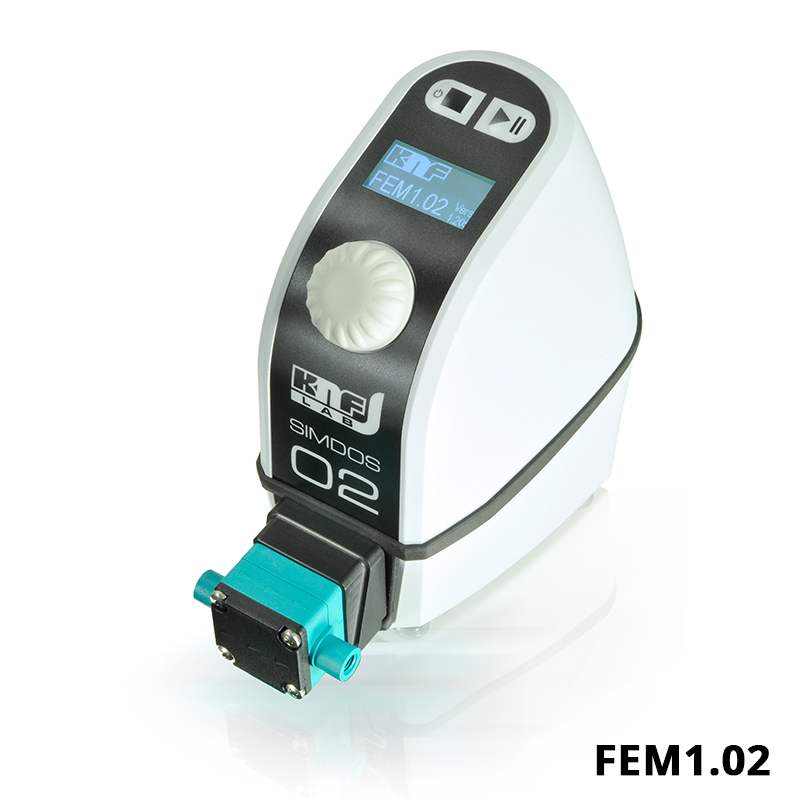

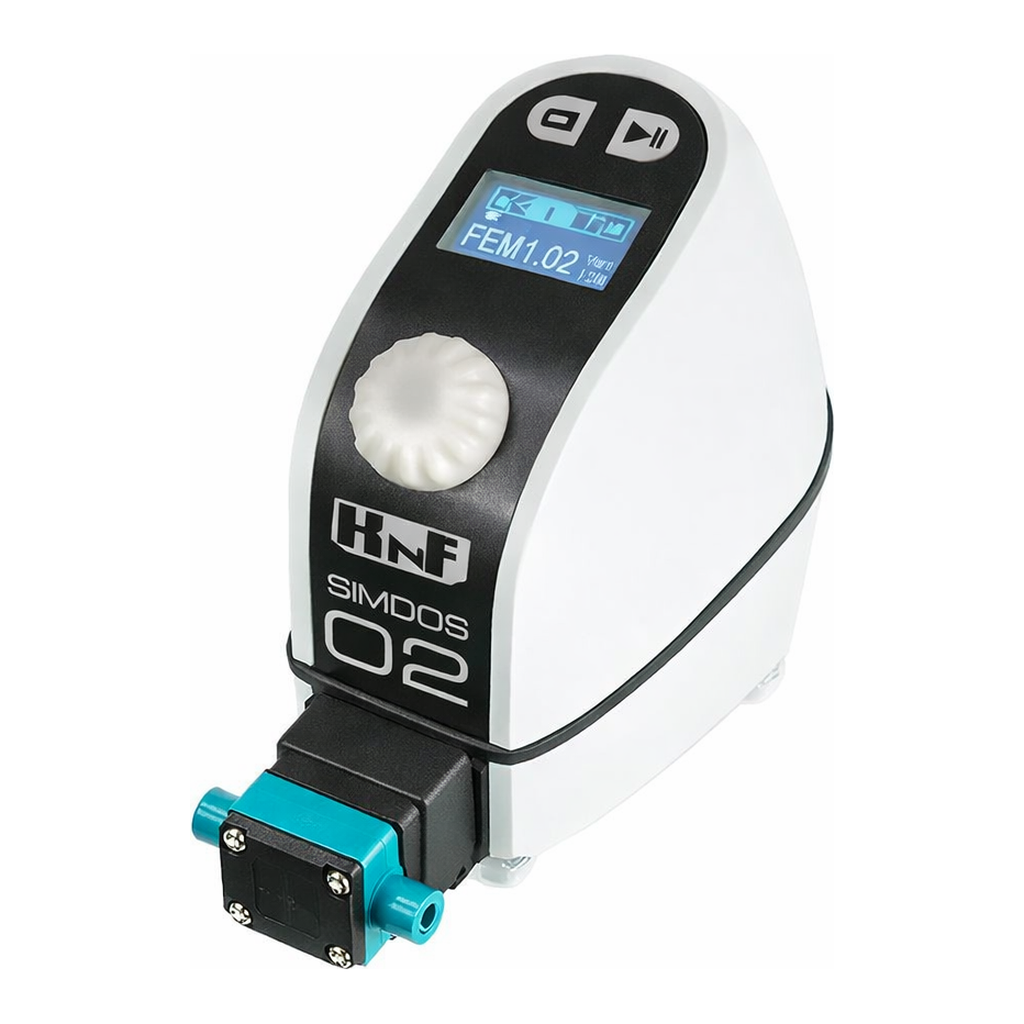

■ KNF SIMDOS 02 Dosing Diaphragm Pump
Cat. No. | Model | Pump Head | Flow Rate |
---|---|---|---|
P06-200-650 | FEM1.02KT.18S | PP | 0.03 ~ 20 ml/min |
--- | --- | --- | --- |
P06-200-653 | FEM1.02TT.18S | PVDF | |
--- | --- | --- | --- |
P06-200-656 | FEM1.02FT.18S | PTFE | |
--- | --- | --- | --- |
P06-200-659 | FEM1.02ST.18S | Stainless Steel | |
--- | --- | --- | --- |
SIMDOS 10 Dosing Diaphragm Pump
Cat. No. | Model | Pump Head | Flow Rate |
---|---|---|---|
P06-200-690 | FEM1.10KT.18S | PP | 1 ~ 100 ml/min |
--- | --- | --- | --- |
P06-200-693 | FEM1.10TT.18S | PVDF | |
--- | --- | --- | --- |
P06-200-696 | FEM1.10FT.18S | PTFE | |
--- | --- | --- | --- |
P06-200-699 | FEM1.10ST.18S | Stainless Steel | |
--- | --- | --- | --- |
Model | KT.18S | TT.18S | FT.18S | ST.18S | KT.18S | TT.18S | FT.18S | ST.18S |
---|---|---|---|---|---|---|---|---|
Type | FEM1.02 | FEM1.10 | ||||||
--- | --- | --- | --- | --- | --- | --- | --- | --- |
Pump Head | PP | PVDF | PTFE | SS | PP | PVDF | PTFE | SS |
--- | --- | --- | --- | --- | --- | --- | --- | --- |
Flow Rate | 0.03 ~ 20 ml/min | 1 ~ 100 ml/min | ||||||
--- | --- | --- | --- | --- | --- | --- | --- | --- |
Dosing Volume | 0.03 ~ 999 ml | 1 ~ 999 ml | ||||||
--- | --- | --- | --- | --- | --- | --- | --- | --- |
Accuracy | ± 2 % | |||||||
--- | --- | --- | --- | --- | --- | --- | --- | --- |
Repeatability | ± 1 % | |||||||
--- | --- | --- | --- | --- | --- | --- | --- | --- |
Suction Height | 2 mWG | 3 mWG | ||||||
--- | --- | --- | --- | --- | --- | --- | --- | --- |
Max. Pressure | 6 bar | |||||||
--- | --- | --- | --- | --- | --- | --- | --- | --- |
Port Size | UNF 1/4`-28 | I.D 4 × O.D 6 mm | ||||||
--- | --- | --- | --- | --- | --- | --- | --- | --- |
Size | w87×d140×h130 mm | w93×d150×h144 mm | ||||||
--- | --- | --- | --- | --- | --- | --- | --- | --- |
Weight | 0.9 kg | |||||||
--- | --- | --- | --- | --- | --- | --- | --- | --- |
Voltage, Frequency | 110~240V, 50/60 Hz | |||||||
--- | --- | --- | --- | --- | --- | --- | --- | --- |
Power | 10 W | 24 W |
