■ 용도 : 유기용매의 회수, Filtration, 농축장치, 건조장치, Gel Drying등
■ 100% Oil-Free로 친 환경적이며 소음이 적고, 유지 보수가 간편함
■ Suction Side Separator에서는 Particle을 분리해 주며, Pressure Side에서는
고성능 콘덴서로 솔벤트를 회수함

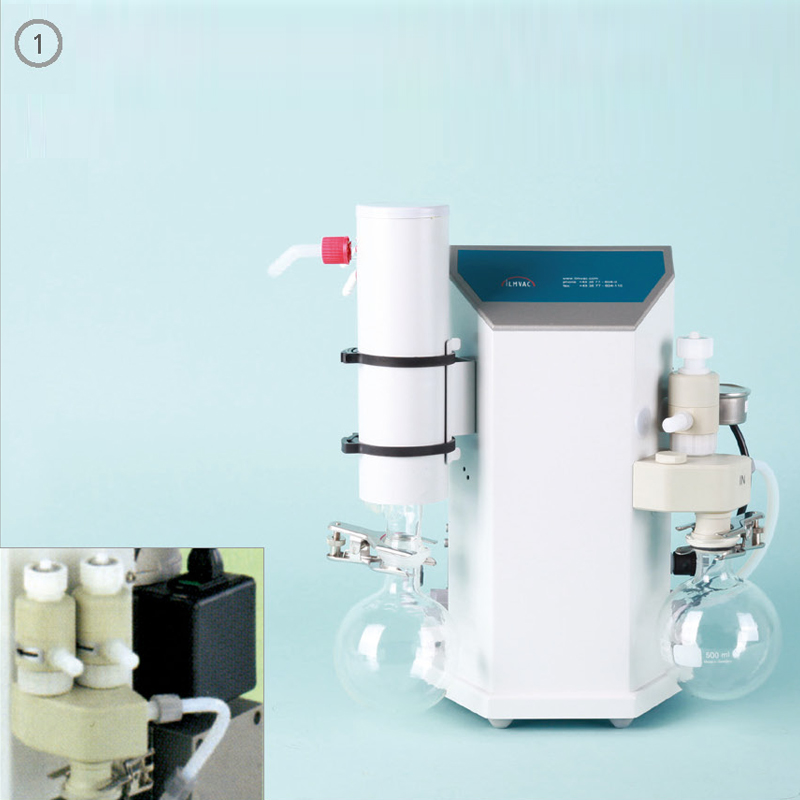

■ Welch-Ilmvac Manual Control with Gauge & Valve ①
| Cat. No |
Model |
유량 |
최대 진공도 |
| P06-750-712 |
LVS101Z-WG |
16.7 L/min |
8 mbar |
| P06-750-716 |
LVS201T-WG |
33.0 L/min |
2 mbar |
| P06-750-720 |
LVS301Z-WG |
38.0 L/min |
8 mbar |
| P06-750-724 |
LVS601T-WG |
75.0 L/min |
2 mbar |
● 구성 : Vacuum Pump, Base Plate, Separator, Condenser 1개, Manual Regulated Connctions, Dial Vacuum Gauge
● Vacuum is adjusted by user using valve
Standard Two Point Control with on/off Solenoid Valve ②
| Cat. No |
Model |
유량 |
최대 진공도 |
| P06-750-748 |
LVS110Z |
16.7 L/min |
8 mbar |
| P06-750-752 |
LVS210T |
33.0 L/min |
2 mbar |
| P06-750-756 |
LVS301Z |
38.0 L/min |
8 mbar |
| P06-750-760 |
LVS610T |
75.0 L/min |
2 mbar |
● 구성 : Vacuum Pump, Base Plate, Separator, Condenser 1개, Controller Regulated Connctions, Digital VCZ 521 Controller
● Vacuum is automatically controlled at set two point usig on/off solenoid valve
Ecoflex One Point Control, Pump Speed 자동조절식 ③
| Cat. No |
Model |
유량 |
최대 진공도 |
| P06-750-788 |
LVS105T10ef |
20.0 L/min |
2 mbar |
| P06-750-792 |
LVS210Tef |
36.0 L/min |
2 mbar |
| P06-750-796 |
LVS310Zef |
43.0 L/min |
8 mbar |
| P06-750-798 |
LVS610Tef |
81.0 L/min |
2 mbar |
● 구성 : Vacuum Pump, Base Plate, Separator, Condenser 1개, Controller Regulated Connctions, Digital VCZ 521 Controller
● Single Point Control - Automatically Varied to control vacuum
● Up to 40% increase in evaporation rates
Spare Accessory for LVS105T10ef
| Cat. No |
Model |
Description |
| P06-750-917 |
700460 |
Separator, Liquid Trap(Inlet)④ |
| P06-750-921 |
700462 |
Solvent Recovery Unit(Outlet)⑤ |
