■ 150,000 mPas까지의 High Viscosity를 가진 Stirrer
■ 점도 변화에 따른 Torque Trend Display 및 Speed와 Torque 기록 가능
■ Wireless Control : 조절 탈부착형, 무선리모컨
■ 내/외부 온도 센서, 타이머 기능, 잠금 기능
■ 순간 과부하 정지 기능
■ Stand 및 Clamp는 Accessory 943 ~ 944 page 참조 (별도 구매해야 함)
■ Protection class acc. to DIN EN 60529 (IP40)
■ IKA
| Cat. No. |
Model |
Type |
| S09-05-233 |
25004384 |

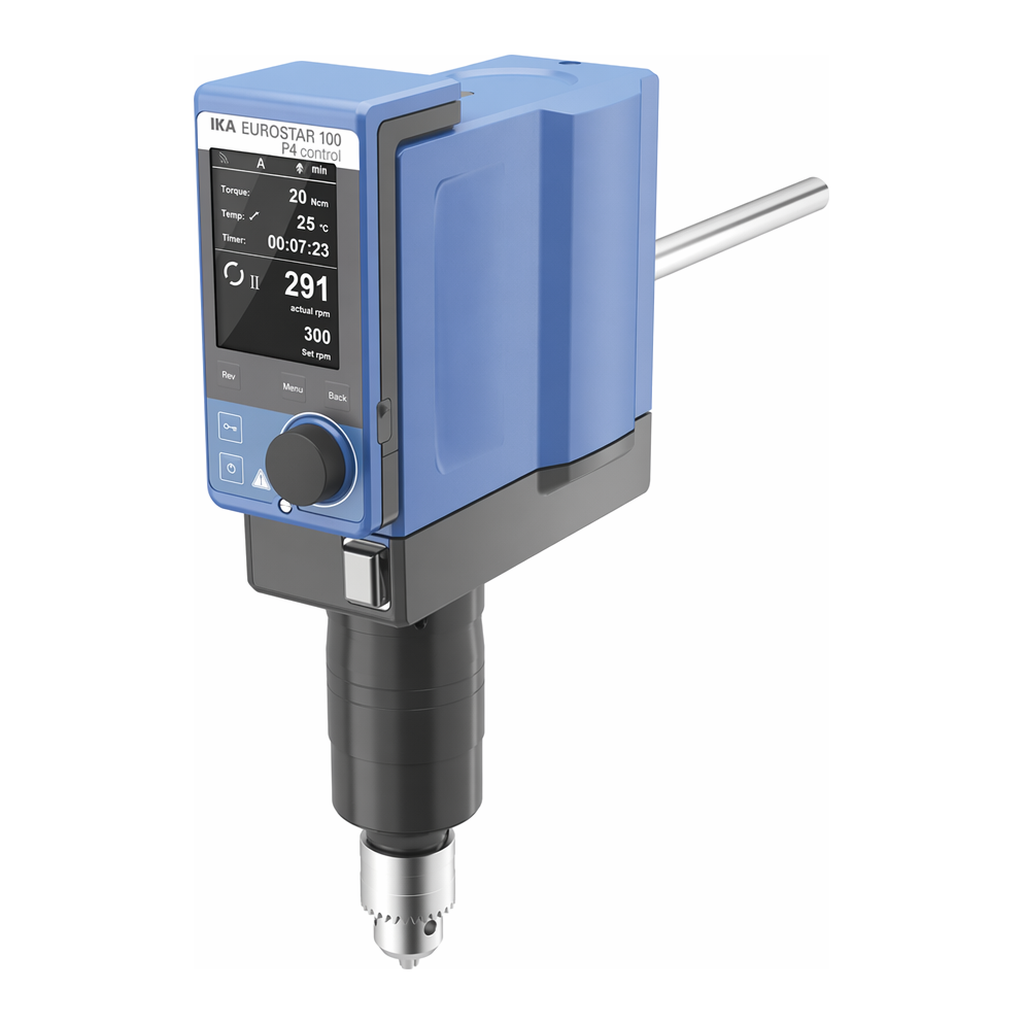

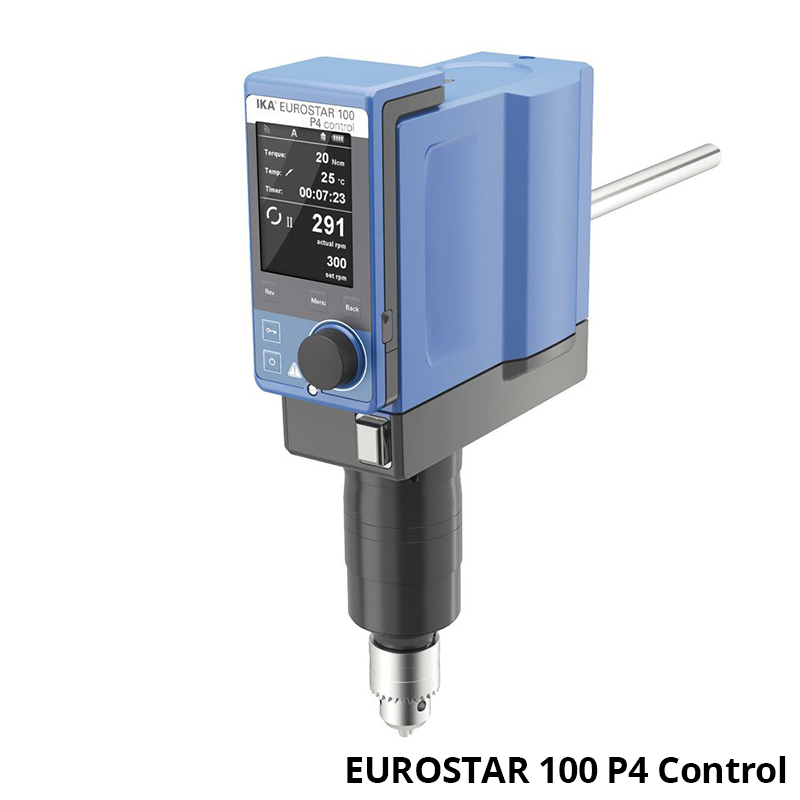

EUROSTAR 100 Control P4 |
| --- |
--- |
--- |
| S09-05-245 |
4090000 |
EUROSTAR 200 Control P4 |
| --- |
--- |
--- |
| Cat. No. |
S09-05-233 |
S09-05-245 |
| Type |
EUROSTAR 100 Control P4 |
EUROSTAR 200 Control P4 |
| --- |
--- |
--- |
| Stirring Capacity (H₂O) |
100 L |
|
| --- |
--- |
--- |
| Speed Range |
10 ~ 300 rpm |
0/4 ~ 530 rpm |
| --- |
--- |
--- |
| Display |
TFT |
|
| --- |
--- |
--- |
| Max. Viscosity |
100,000 mPas |
150,000 mPas |
| --- |
--- |
--- |
| Max. Torque at Chuck |
200 Ncm |
660 Ncm |
| --- |
--- |
--- |
| Motor Rating Input |
174 W |
134 W |
| --- |
--- |
--- |
| Motor Rating Output |
142 W |
76 W |
| --- |
--- |
--- |
| Chuck Range |
0.5 ~ 10 mm |
|
| --- |
--- |
--- |
| Temp. Range |
-10 ~ 350℃ |
|
| --- |
--- |
--- |
| Hollow Shaft |
YES |
|
| --- |
--- |
--- |
| Interface |
RS232 / USB Interface |
|
| --- |
--- |
--- |
| Size |
w86×d230×h352 mm |
w91×d231×h379 mm |
| --- |
--- |
--- |
| Weight |
5.2 kg |
5.8 kg |
| --- |
--- |
--- |
| Power |
230V, 50/60 Hz |
|
| Cat. No. |
S09-05-233 |
S09-05-245 |
| Type |
EUROSTAR 100 Control P4 |
EUROSTAR 200 Control P4 |
| Stirring Capacity (H₂O) |
100 L |
| Speed Range |
10 ~ 300 rpm |
0/4 ~ 530 rpm |
| Display |
TFT |
| Max. Viscosity |
100,000 mPas |
150,000 mPas |
| Max. Torque at Chuck |
200 Ncm |
660 Ncm |
| Motor Rating Input |
174 W |
134 W |
| Motor Rating Output |
142 W |
76 W |
| Chuck Range |
0.5 ~ 10 mm |
| Temp. Range |
-10 ~ 350℃ |
| Hollow Shaft |
YES |
| Interface |
RS232 / USB Interface |
| Size |
w86×d230×h352 mm |
w91×d231×h379 mm |
| Weight |
5.2 kg |
5.8 kg |
| Power |
230V, 50/60 Hz |
| Cat. No. |
S09-05-233 |
S09-05-245 |
| Type |
EUROSTAR 100 Control P4 |
EUROSTAR 200 Control P4 |
| Stirring Capacity (H₂O) |
100 L |
| Speed Range |
10 ~ 300 rpm |
0/4 ~ 530 rpm |
| Display |
TFT |
| Max. Viscosity |
100,000 mPas |
150,000 mPas |
| Max. Torque at Chuck |
200 Ncm |
660 Ncm |
| Motor Rating Input |
174 W |
134 W |
| Motor Rating Output |
142 W |
76 W |
| Chuck Range |
0.5 ~ 10 mm |
| Temp. Range |
-10 ~ 350℃ |
| Hollow Shaft |
YES |
| Interface |
RS232 / USB Interface |
| Size |
w86×d230×h352 mm |
w91×d231×h379 mm |
| Weight |
5.2 kg |
5.8 kg |
| Power |
230V, 50/60 Hz |
