■ 70,000 mPas까지의 High Viscosity를 가진 Stirrer
■ Digital 모델은 Control 모델과 동등한 성능 (일부 편리 기능의 차이)

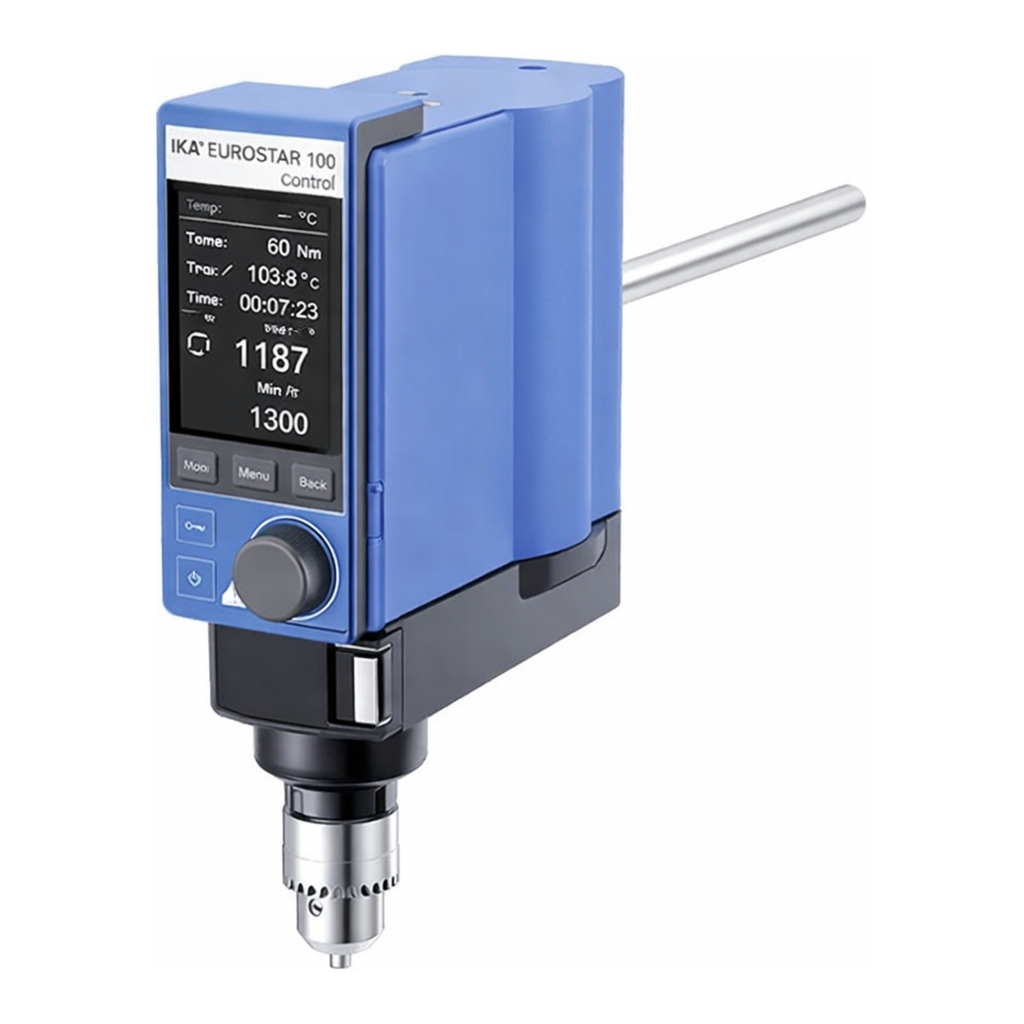

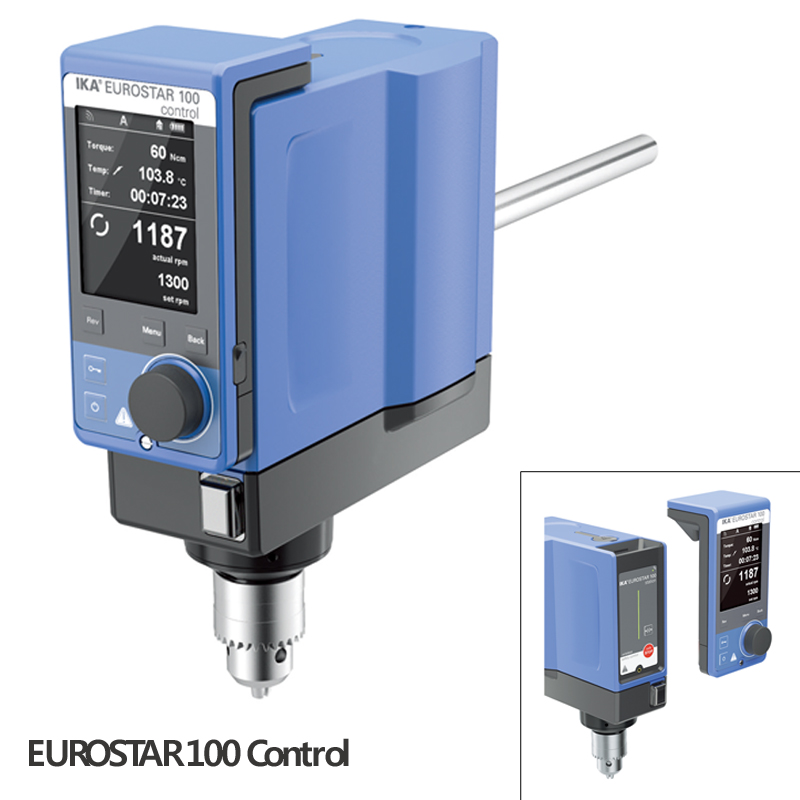

■ EUROSTAR 100 Control의 특징
- 점도 변화에 따른 Torque Trend Display 및 Speed와 Torque 기록 가능
- Wireless Control : 조절 탈부착형, 무선리모컨
■ 내/외부 온도 센서, 타이머 기능, 잠금기능
■ 갑작스런 작동 중지 또는 과부하 상태 시 자동 정지 기능 (내부 보호 회로)
■ Stand 및 Clamp는 Accessory 943 ~ 944 page 참조 (별도 구매해야 함)
■ Protection class acc. to DIN EN 60529 (IP40)
■ IKA
|
|
|
|
| Cat. No. |
Model |
Type |
용량 |
| --- |
--- |
--- |
--- |
| S09-05-225 |
4238100 |
EUROSTAR 100 digital |
100 L |
| --- |
--- |
--- |
--- |
| S09-05-230 |
4028500 |
EUROSTAR 100 control |
|
| --- |
--- |
--- |
--- |
|
|
|
| Cat. No. |
S09-05-225 |
S09-05-230 |
| --- |
--- |
--- |
| Type |
EUROSTAR 100 digital |
EUROSTAR 100 control |
| --- |
--- |
--- |
| Stirring Capacity (H₂O) |
100 L |
|
| --- |
--- |
--- |
| Speed Range |
0/30 ~ 1,300 rpm |
|
| --- |
--- |
--- |
| Speed Display |
LED |
TFT |
| --- |
--- |
--- |
| Max. Viscosity |
70,000 mPas |
|
| --- |
--- |
--- |
| Motor Rating Input |
186 W |
174 W |
| --- |
--- |
--- |
| Motor Rating Output |
136 W |
142 W |
| --- |
--- |
--- |
| Max. Torque at Chuck |
100 Ncm |
|
| --- |
--- |
--- |
| Chuck Range |
0.5 ~ 10 mm |
|
| --- |
--- |
--- |
| Hollow Shaft |
YES |
|
| --- |
--- |
--- |
| Interface |
- |
RS232 / USB Interface |
| --- |
--- |
--- |
| Size |
w86×d208×h248 mm |
w86×d230×h267 mm |
| --- |
--- |
--- |
| Weight |
4.4 kg |
4.7 kg |
| --- |
--- |
--- |
| Power |
230V, 50/60 Hz |
|
| --- |
--- |
--- |
