■ 최고 6000 rpm까지 회전이 가능한 고성능 Stirrer
■ 10,000 mPas까지의 중점도를 가진 샘플 믹싱용
■ EUROSTAR 20 High Speed Control의 특징
- Wireless TFT 디스플레이 컨트롤러 장착
- RS232 및 USB로 PC 연결 가능 : 제어, 문서화, 펌웨어 업데이트
■ 전용 Impeller만 사용 가능, 하부 Propeller 참조
■ 토크 트렌드 표시 기능으로 점도 변화 확인 가능
■ 과부화 보호 및 순간 정지 기능
■ 정교한 축을 위한 cone seat
■ Stand 및 Clamp는 Accessory 943 ~ 944 page 참조 (별도 구매해야 함)
■ Protection class acc. to DIN EN 60529 (IP42 / 40)
■ IKA
| Cat. No. |
Model |
Type |
용량 |
| S09-05-250 |
4028600 |

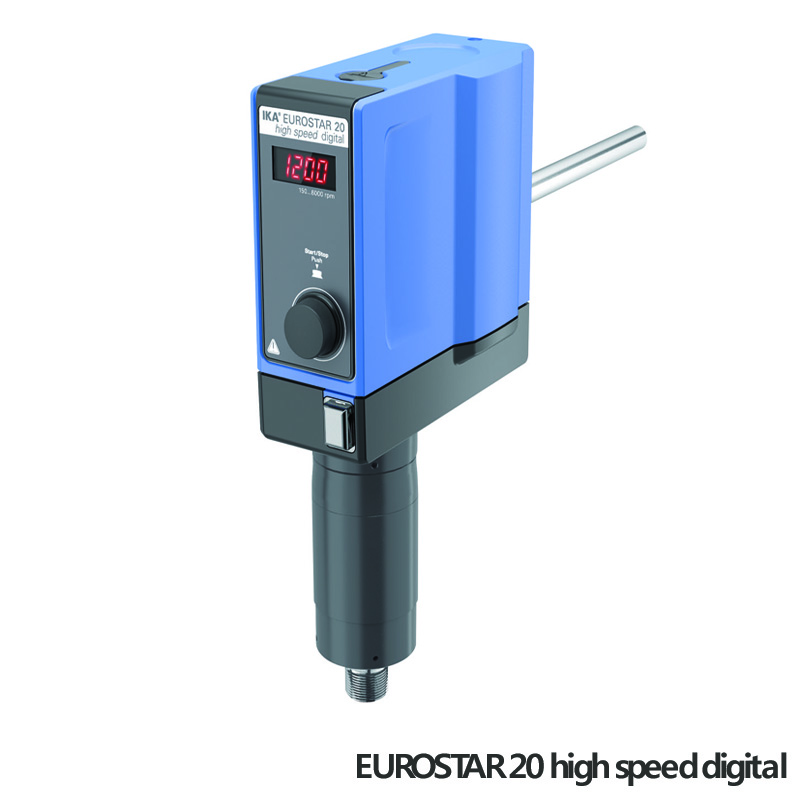

Eurostar 20 High Speed Digital |
20 L |
| --- |
--- |
--- |
--- |
| S09-05-255 |
25001314 |

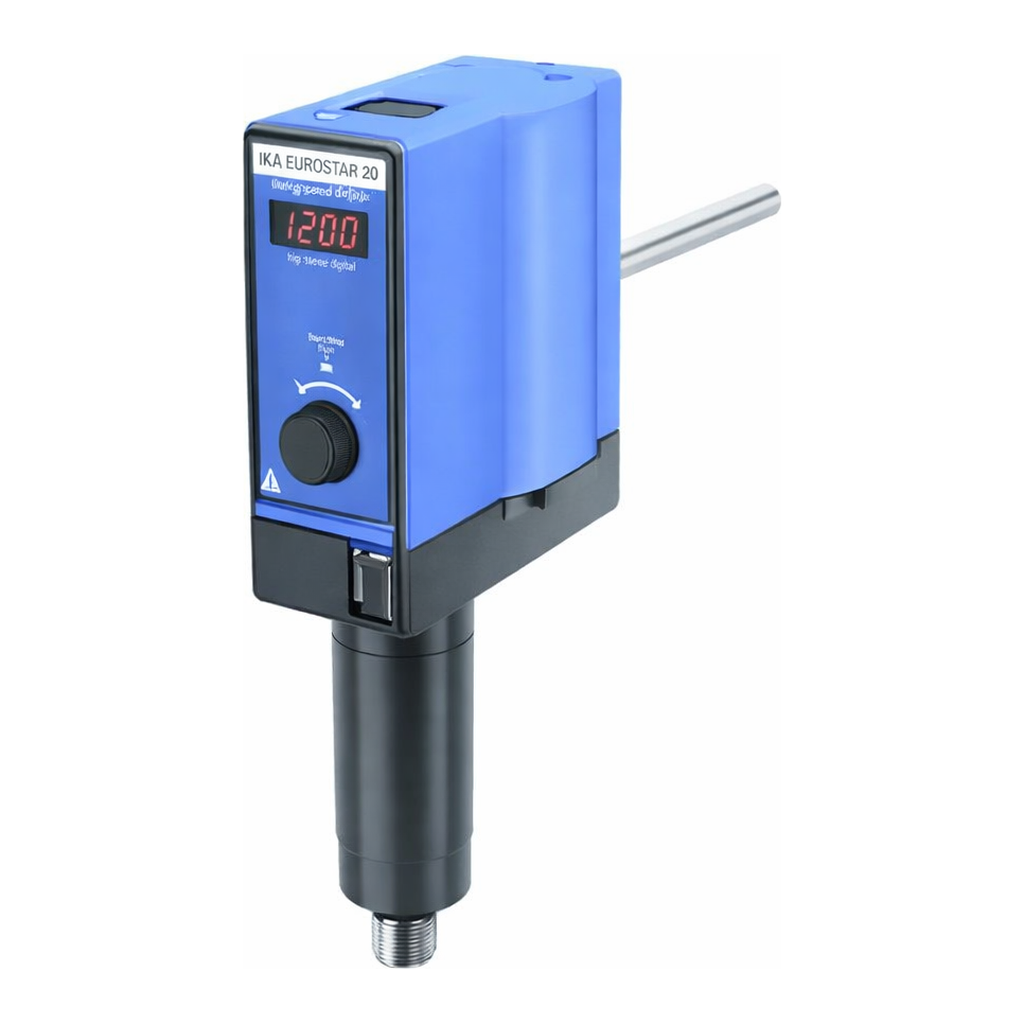

Eurostar 20 High Speed Control |
|
| --- |
--- |
--- |
--- |
| Cat. No. |
S09-05-250 |
S09-05-255 |
| Type |
Eurostar 20 High Speed Digital |
Eurostar 20 High Speed Control |
| --- |
--- |
--- |
| Stirring Capacity (H₂O) |
20 L |
|
| --- |
--- |
--- |
| Speed Range |
0/150 ~ 6000 rpm |
|
| --- |
--- |
--- |
| Speed Display |
LED |
TFT |
| --- |
--- |
--- |
| Max. Viscosity |
10,000 mPas |
|
| --- |
--- |
--- |
| Motor Rating Input |
176W |
|
| --- |
--- |
--- |
| Motor Rating Output |
125W |
|
| --- |
--- |
--- |
| Max. Torque at Chuck |
20 Ncm |
|
| --- |
--- |
--- |
| Temperature measuring range |
-10 ~ 350℃ |
|
| --- |
--- |
--- |
| Shaft Length |
220 ~ 280mm |
|
| --- |
--- |
--- |
| Size |
w86×d208×h325 mm |
w86×d230×h325 mm |
| --- |
--- |
--- |
| Weight |
5.3 kg |
|
| --- |
--- |
--- |
| Protection Class According to DIN EN 60529 |
IP42 |
IP40 |
| --- |
--- |
--- |
| Speed Control |
무단계(자유로운 교반속도 제어) |
|
| --- |
--- |
--- |
| Power |
230V, 60 Hz |
|
| | | | | |
| --- | --- | --- | --- | --- |Propeller & Dissolver for Eurostar 20 High Speed Didital
| Cat. No. | Model | Type | Impeller | Size |
| --- | --- | --- | --- | --- |
| S09-05-690 | 1242900 ① | R1401 | Propeller | Φ55 mm |
| H01-05-626 | 1289800 | R1405 | Φ45 mm |
| H01-05-632 | 1243300 | R1402 | Dissolver | Φ42 mm |
