Introduction

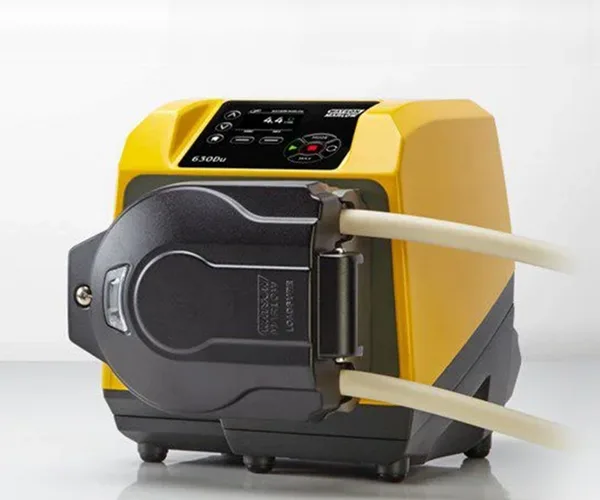

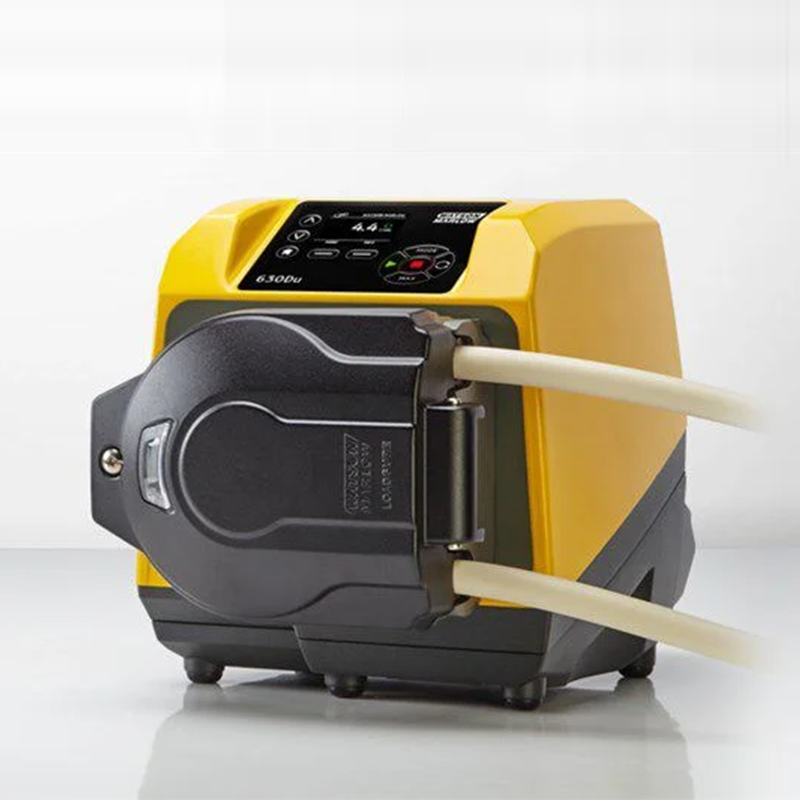

630S, 630SN, 630U, 630UN, 630Du, 630DuN, 630Bp, 630BpN, 630US, 630DuS, 630En and 630EnN Pumps
Product Code
Product Code |
Model |
Description |
RPM |
060.913N.02E |
630SN/R |
Manual Control Pump for 3.2mm Wall Tubing |
265 |
060.914N.02E |
630UN/R |
Remote & Analogue Control Pump for 3.2mm Wall Tubing |
265 |
060.915N.02E |
630DuN/R |
RS232 Digital Communication Pump for 3.2mm Wall Tubing |
265 |
063.4211.000 |
620R |
2 Roller P/H for 3.2mm Wall Tubing |
– |
Features and Benefits
• Colour display and intuitive menu structures provide visual status indication and minimal key presses
• Flow rates from 0.001 L/min (0.0002 USGPM) to 18 L/min (4.76 USGPM) depending on model and pumphead/tubing options
• 620R, 620RE, 620RE4, 620L and 620LG pumpheads available
• 2650:1 speed control range from 0.1 to 265rpm in 0.1rpm increments
• Keypad incorporates 3-level security PIN lock
• IP31 (NEMA 2) and IP66 (NEMA 4X) cased pumps
• Dual voltage, 115V/230V 50/60Hz
• Remote Analogue/Digital, RS232, RS485, PROFIBUS, SCADA and EtherNet/IP™ control options
Technical Data
Dimensions
Technical Specification
Materials of Construction
