Introduction

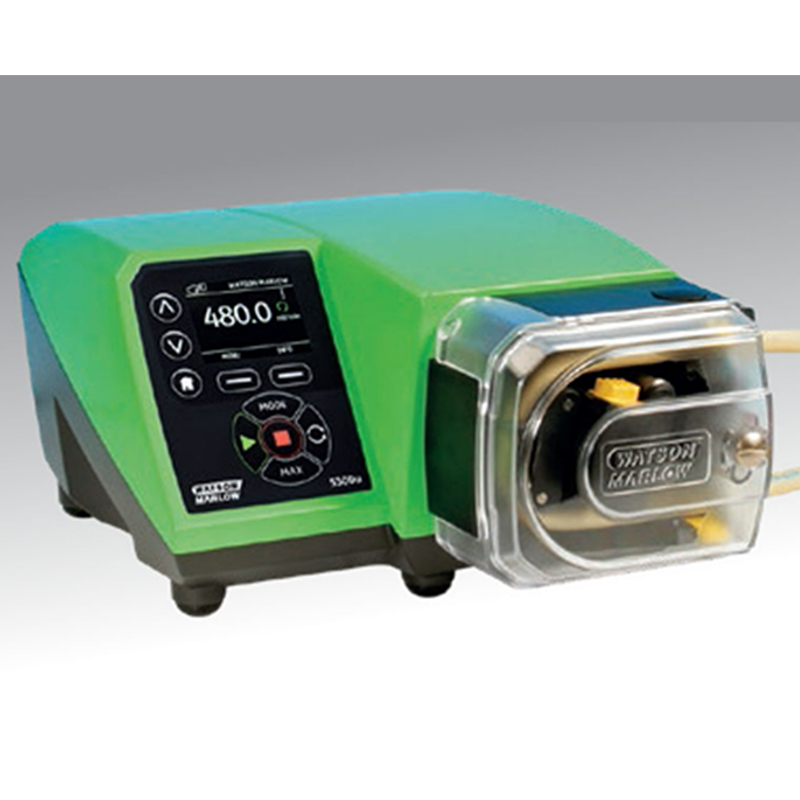

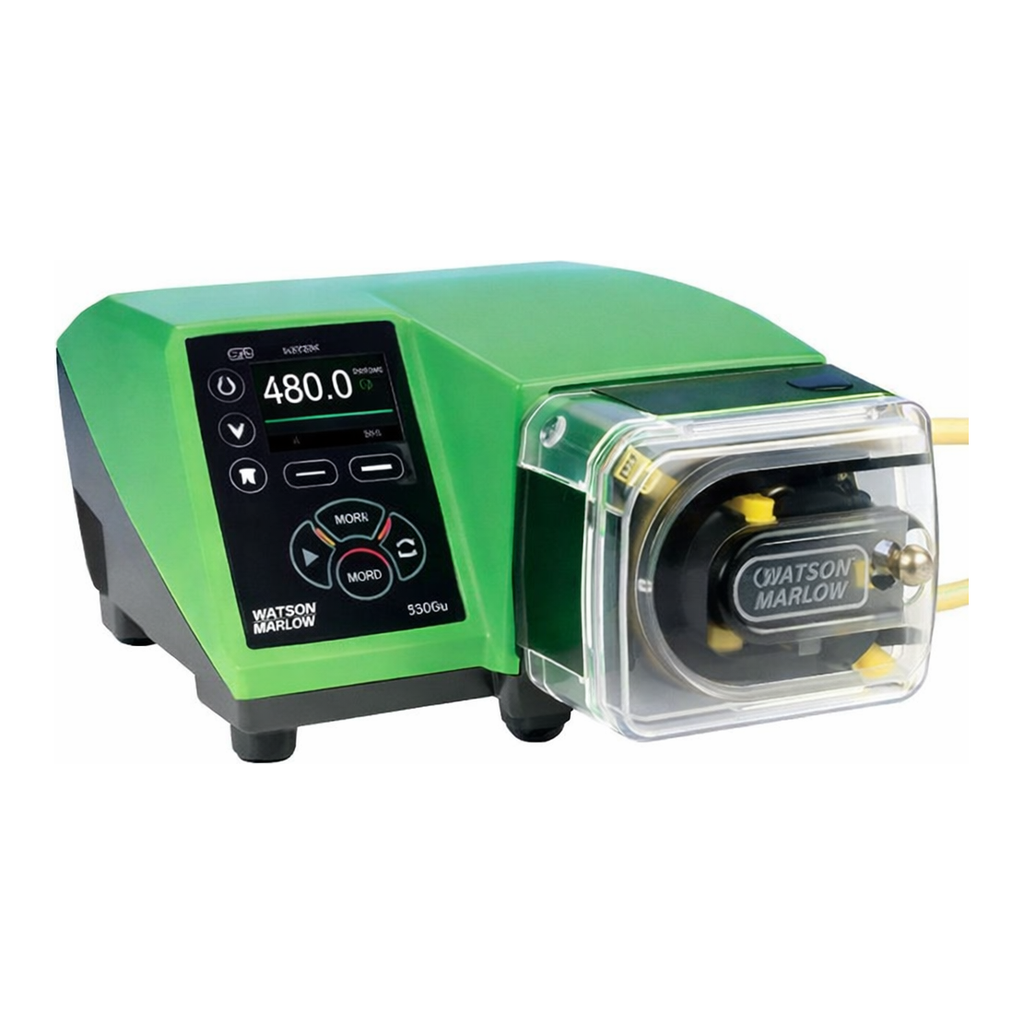

530S, 530SN, 530U, 530UN, 530Du, 530DuN, 530US, 530DuS, 530Bp, 530BpN, 530En and 530EnN Pumps
Product Code
Product Code |
Model |
Description |
RPM |
050.913N.10E |
530SN/R |
Manual Control Pump for 1.6mm Wall Tubing |
220 |
050.914N.10E |
530UN/R |
Remote & Analogue Control Pump for 1.6mm Wall Tubing |
220 |
050.915N.10E |
530DuN/R |
RS232 Digital Communication Pump for 1.6mm Wall Tubing |
220 |
050.913N.2LE |
530SN/R2 |
Manual Control Pump for 2.4mm Wall Tubing |
220 |
050.914N.2LE |
530UN/R2 |
Remote & Analogue Control Pump for 2.4mm Wall Tubing |
220 |
050.915N.2LE |
530DuN/R2 |
RS232 Digital Communication Pump for 2.4mm Wall Tubing |
220 |
056.913N.00E |
530SN |
Manual Ccontrol Drive |
220 |
056.914N.00E |
530UN |
Remote & Analogue Control Drive |
220 |
056.915N..00E |
530DuN |
RS232 Digital Communication Drive |
220 |
053.1011.100 |
520R |
Twin Roller P/H for 1.6mm Wall Tubing |
– |
053.1011.2L0 |
520R2 |
Twin Roller P/H for 2.4mm Wall Tubing |
– |
Features and Benefits
• Colour display and intuitive menu structures provide visual status indication and minimal key presses
• Flow rates from 0.004 ml/min (0.0006 USGPH) to 3.5 L/min (55.48 USGPH)
• 520R, 520R2, 520REL, 520REM, 520REH, 520RET and 505L pumpheads available as standard, others available on request
• 2200:1 speed control range from 0.1 to 220 rpm in 0.1 rpm increments
• Keypad incorporates 3-level security PIN lock
• IP31 (NEMA 2) and IP66 (NEMA 4X) cased pumps
• Dual voltage, 115 V/230 V 50/60 Hz
• Remote Analogue/Digital, RS232, RS485, PROFIBUS, SCADA and EtherNet/IP™ control options
Technical Data
Dimensions
Technical Specification
Materials of Construction
