Introduction

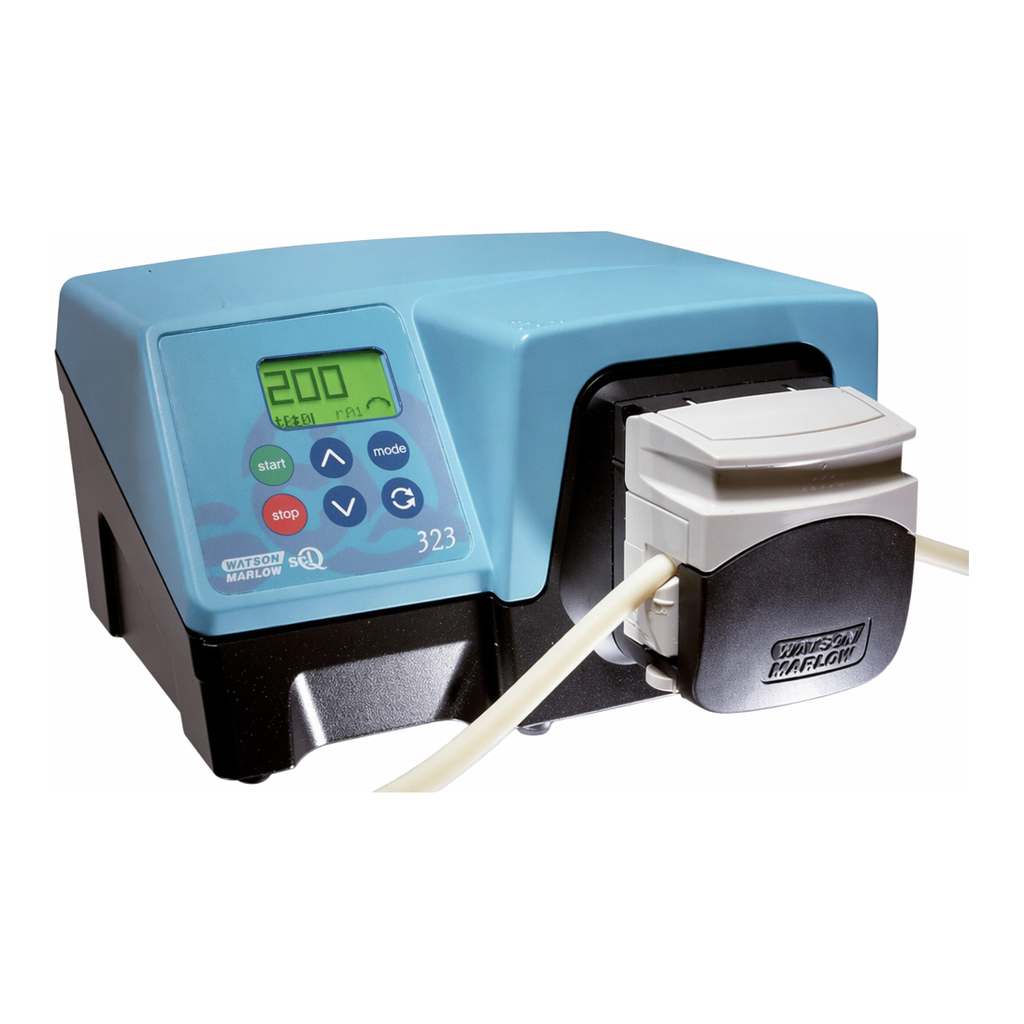

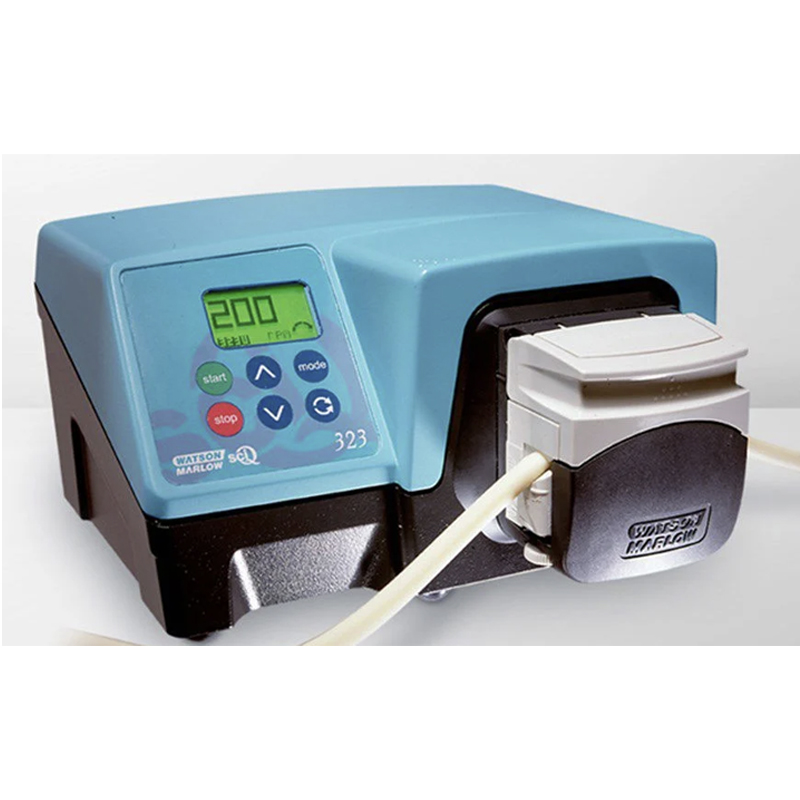

323E/D, 323S/D, 323U/D and 323Du/D variable speed pumps with three roller pumphead
Product Code
Product Code |
Model |
Description |
030.3124.3D0* |
323E/D |
drive and 313D three roller pumphead |
030.3134.3D0* |
323S/D |
drive and 313D three roller pumphead |
030.3144.3D0* |
323U/D |
drive and 313D three roller pumphead |
030.3154.3D0* |
323Du/D |
drive and 313D three roller pumphead |
036.3124.000* |
323E |
drive only |
036.3134.000* |
323S |
drive only |
036.3144.000* |
323U |
drive only |
036.3154.000* |
323Du |
drive only |
033.3451.000 |
313DW |
3 roller pumphead for 1.6mm wall tube |
033.3431.000 |
313X |
3 roller extension pumphead for 1.6mm wall tube (maximum five) |
033.3551.000 |
313DW2 |
3 roller pumphead for 2.4mm wall tube |
*Replace last 0 with A, E or U for American, European or UK mains supply (American 110V 1ph 60Hz)
Features and Benefits
• Flow rates from 0.81 to 2000 ml/min
• High visibility digital display and membrane keypad
• Compact design and chemical resistant case
• Zero maintenance, quiet brushless DC motor
• Rapid and simple tube loading 313DW flip-top pumphead uses 1.6mm wall thickness tubing
• Snap-fit 313X extension pumpheads for up to 6 channels of flow
• Alternative pumpheads 313DW2 three roller pumphead, 2.4mm wall thickness for higher suction and delivery pressure up to 2 bar 314DW four roller pumphead, 1.6mm wall thickness for tube for continuous duties up to 300rpm 314DW2 four roller pumphead, 2.4mm wall thickness for higher suction and delivery pressure up to 2 bar
Technical Data
Dimensions
Technical Specification
Materials of Construction
