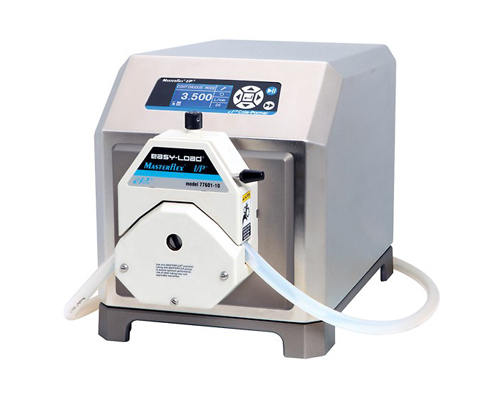

I/P® Digital Console Process Drives
Maintenance-free drives built for process applications
Description
· Graphical LCD shows four operating modes: continuous run, timed dispense, copy dispense, volume dispense
· Dispense by mL—volume in mL of each dispense, 0.001 to 9999 mL; Copy—1 to 9,999 dispense cycles; or SEC—time interval of on/off cycles (1 sec to 99 hr, 59 min, 59 sec per cycle)
Model 77420-10 features a 316 stainless steel housing with an anodized aluminum base. Ideal for pharmaceutical, dairy, biotech, and food and beverage applications.
Model 77420-20 features a powder-coated steel housing with anodized aluminum base. Use in process, manufacturing, and water-treatment applications where stainless steel is not a critical requirement.
What’s included: 6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country-specific plug/cord set; please specify ultimate destination when ordering.
| rpm | Speed control (resolution) |
Pump heads accepted |
Motor size |
IP rating |
Dimensions (L x W x H) |
Power (50/60 Hz) | Catalog number |
|
| VAC | Amps | |||||||
| Digital process drive with 316 stainless steel housing | ||||||||
| 0.1 to 650 | ±0.1% | 2 | 3⁄8 hp (280 W) |
IP66 | 16 11⁄16x 11 1⁄8 x 12 7⁄8` |
90 to 260 | 4.5 at 115 VAC, 2.5 at 230 VAC |
GY-77420-10 |
| Digital process drive with powder-coat steel housing | ||||||||
| 0.1 to 650 | ±0.1% | 2 | 3⁄8 hp (280 W) |
IP66 | 16 11⁄16x 11 1⁄8 x 12 7⁄8` |
90 to 260 | 4.5 at 115 VAC, 2.5 at 230 VAC |
GY-77420-20 |
🏷️MasterFlex 상품 둘러보기
동일 브랜드의 다른 상품들을 확인해보세요
MasterFlex
Masterflex I/P High-Performance ATEX Pump Head for High-Performance Precision Tubing, Avantor
MasterFlex
Masterflex I/P High-Performance Pump Head for High-Performance Precision Tubing, Avantor
2,123,500원
MasterFlex
Masterflex I/P Digital Process Drives, Avantor
11,180,000원
MasterFlex

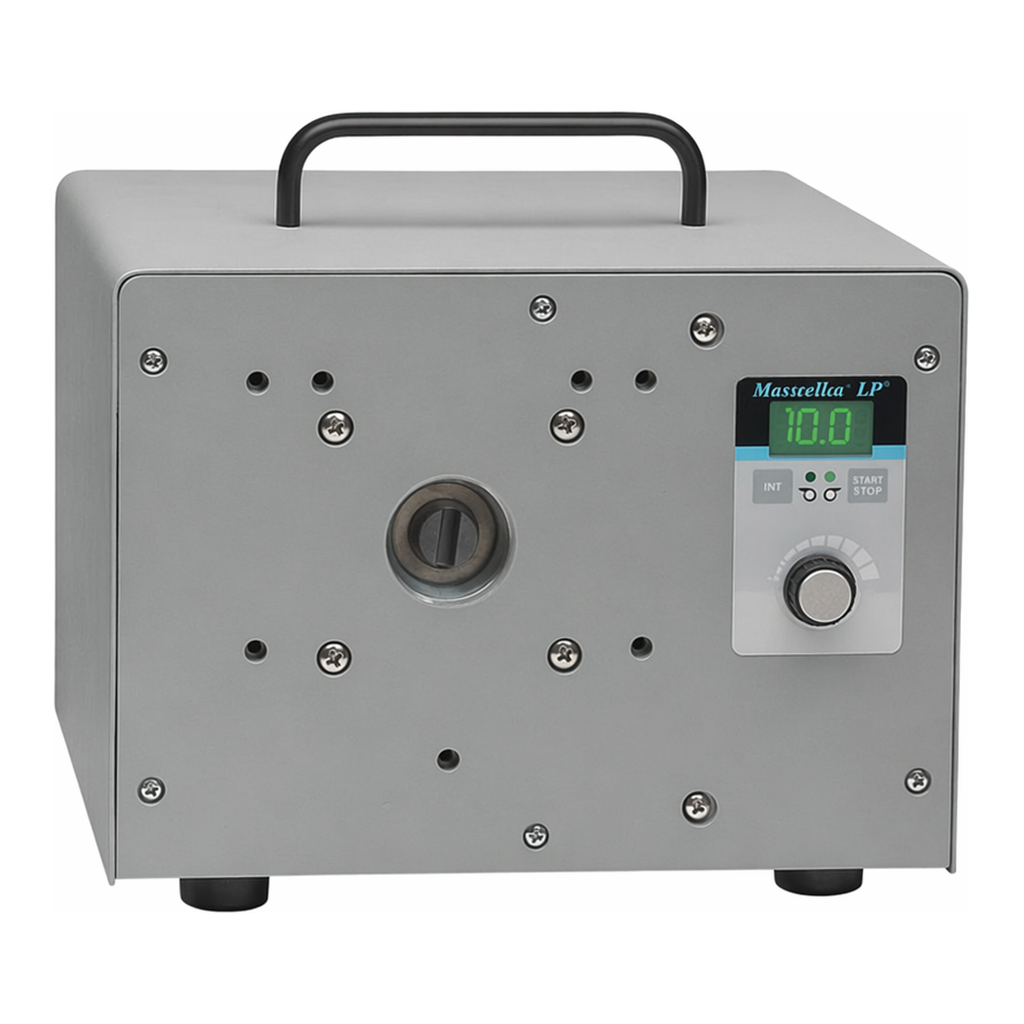

Masterflex I/P Brushless Process Drive with Remote Input/Output, Avantor
7,944,200원
MasterFlex

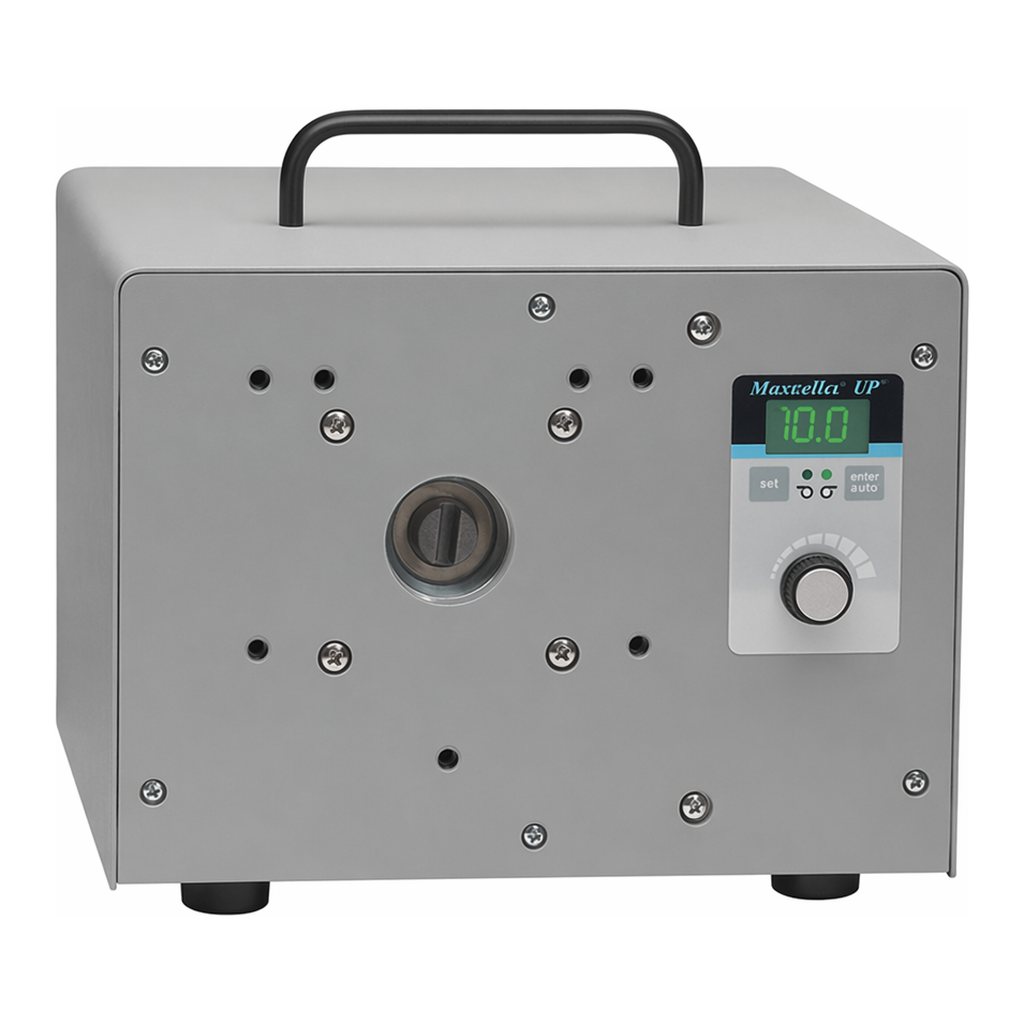

Masterflex I/P Brushless Process Drives, Avantor
