Masterflex I/P Digital Modular Drives with Remote Input/Output, Avantor

I/P® Variable-Speed Modular Digital Dispensing Drives
Get precise digital dispensing with virtually no maintenance

Graphical LCD shows four operating modes: continuous run, timed dispense, copy dispense, and volume dispense
Programmable dispense interval lets you set the delay between dispense cycles for convenient, automated dispensing by time or by volume
Brushless motor gives you quiet, maintenance-free reliability

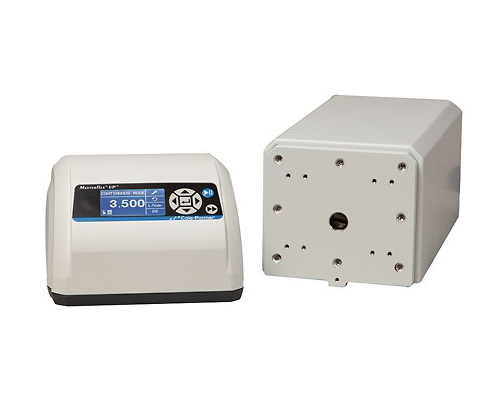

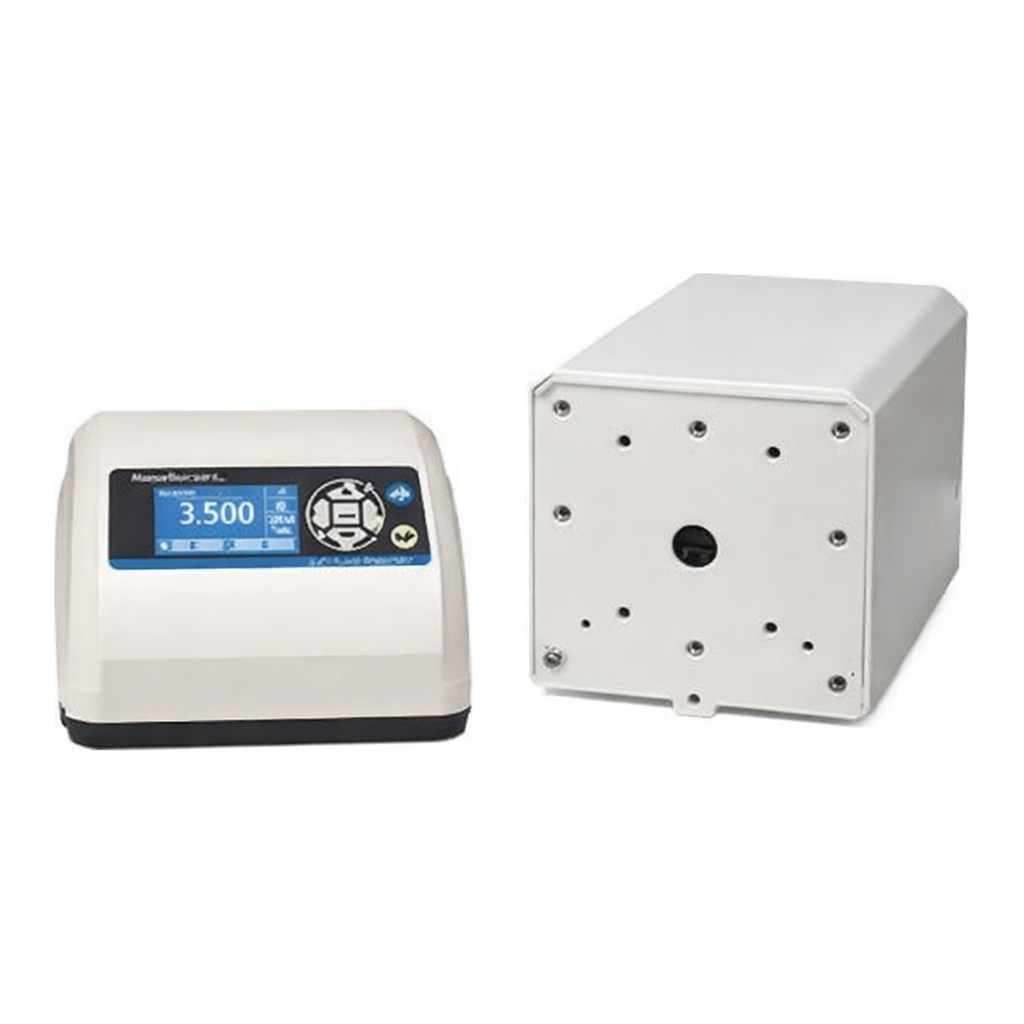

A. Modular Drive with Benchtop Controller Splash-resistant ABS plastic controller housing is IP33 rated; drive housing is epoxy finished steel, IP33 rated 6-ft (1.8-m) cable connects drive and controller; optional extension cable is available Remote control capabilities via a DB25 female connector on controller B. Washdown Modular Drive with Wall-Mount Controller Wall-mount controller housing is powder-coated aluminum, IP66 / NEMA 4X rated for washdown; powder-coated steel drive housing is IP66 / NEMA 4X rated for washdown 6-ft (1.8-m) cable connects drive and controller; optional extension cable is available Remote control capabilities via weather-resistant 31-pin round connection on controller What’s included: 6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country-specific plug/cord set; please specify ultimate destination when ordering

A 07594-00 B Model 07594-10 includes wall-mount controller

GY-77301-82 Extension cable, 9 ft (2.7 m); extend distance between motor and controller
GY-07523-95 Cable assembly for benchtop drive 07594-00; DB25 male connector and 25-ft (7.9-m) cable with stripped wire ends for remote control
GY-07575-80 Cable assembly for washdown drive 07594-10; 31-pin round connector and 25-ft (7.9-m) cable with stripped wire ends for remote control
GY-17050-01 NIST-traceable calibration for peristaltic pump drive
