Masterflex I/P Digital Modular Drive with Remote Input/Output, Avantor
| 상품 옵션 정보 | ||||||||
|---|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | CAS 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| MFLX07591-20 | - | MasterFlex MFLX07591-20 DRIVE MFLX I/P MODULAR SWITZERLAND 230V ea | 재고문의 | ea | 5,750,000원 | - | 6,325,000원 | |
다른 상품 둘러보기

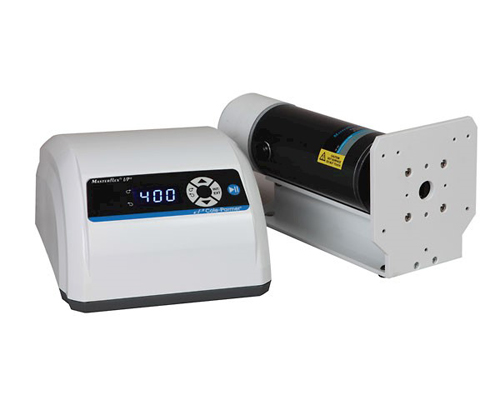

I/P® Precision Variable-Speed Modular Drives
Place motor and controller where convenient with modular design
Description
· Easy control of speed, direction, and start/stop with membrane keypad
· Ideal for metering and critical transfer applications
A. Modular Drive with Benchtop Controller
· Splash-resistant ABS plastic controller housing is IP33 rated;drive housing is epoxy finished steel, IP33 rated
· 6-ft (1.8-m) cable connects drive and controller; optional extension cable is available
· Remote control via DB9 female connector on controller
B. Washdown Modular Drive with Wall-Mount Controller
· Wall-mount controller housing is powder-coated aluminum, IP66 / NEMA 4X rated for washdown; powder-coated steel drive housing is IP66 / NEMA 4X rated for washdown
· 6-ft (1.8-m) cable connects drive and controller; optional extension cable is available
· Remote control via weather-resistant connection on controller
What’s included: 6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country-specific plug/cord set; please specify ultimate destination when ordering.
| rpm | Speed control (resolution) |
Pump heads accepted |
Motor size |
IP rating |
Dimensions (L x W x H) |
Power (50/60 Hz) | Catalog number |
|
| VAC | Amps | |||||||
| ** A. Precision modular drive with benchtop controller** | ||||||||
| 6 to 650 | ±0.25% (1 rpm at 650 rpm) |
2 | 1⁄5 hp (149 W) |
IP33 | Controller 10 3⁄8 x 8 3⁄8 x 5 1⁄2<br>Drive<br><br>13 7⁄8 x 5 1⁄2x 6 1⁄8 |
90 to 260 | 4.4 at 115 VAC, 2.2 at 230 VAC |
GY-07591-20 |
| ** B. Precision washdown modular drive with wall-mount controller** | ||||||||
| 6 to 650 | ±0.25% (1 rpm at 650 rpm) |
2 | 1⁄5 hp (149 W) |
IP66 | Controller 10 1⁄8 x 11 x 4 3⁄4<br>Drive<br><br>14 1⁄4 x 7x 6 1⁄2 |
90 to 260 | 4.4 at 115 VAC, 2.2 at 230 VAC |
GY-07591-30 |
