Masterflex I/P Digital Washdown Modular Drive with Remote Input/Output, Avantor
| 상품 옵션 정보 | |||||||
|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| MFLX07591-30 | MasterFlex MFLX07591-30 DRIVE MFLX I/P NEMA SWITZERLAND 230V ea | 재고문의 | ea | 0원 | - | 0원 | |
다른 상품 둘러보기
I/P® Precision Variable-Speed Modular Drives
Place motor and controller where convenient with modular design
Description
· Easy control of speed, direction, and start/stop with membrane keypad
· Ideal for metering and critical transfer applications

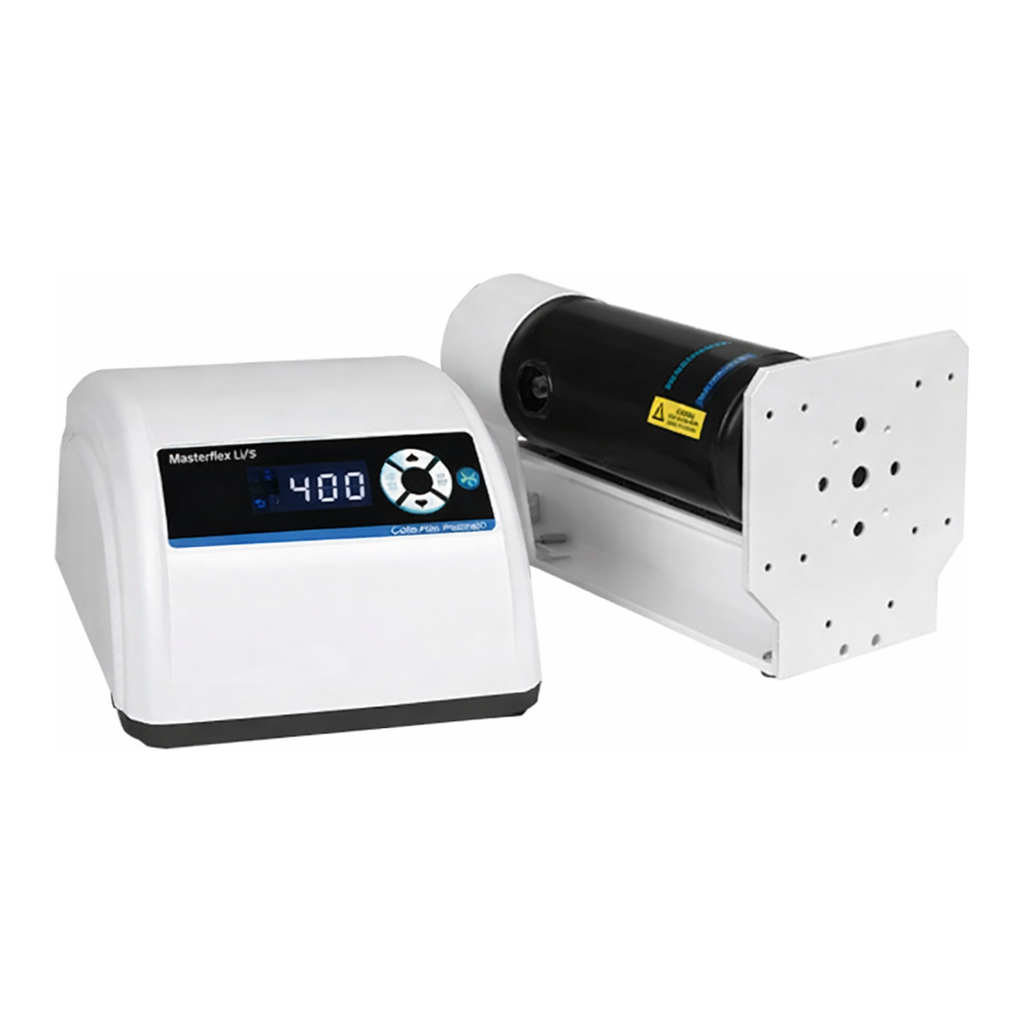

A. Modular Drive with Benchtop Controller
· Splash-resistant ABS plastic controller housing is IP33 rated;drive housing is epoxy finished steel, IP33 rated
· 6-ft (1.8-m) cable connects drive and controller; optional extension cable is available
· Remote control via DB9 female connector on controller

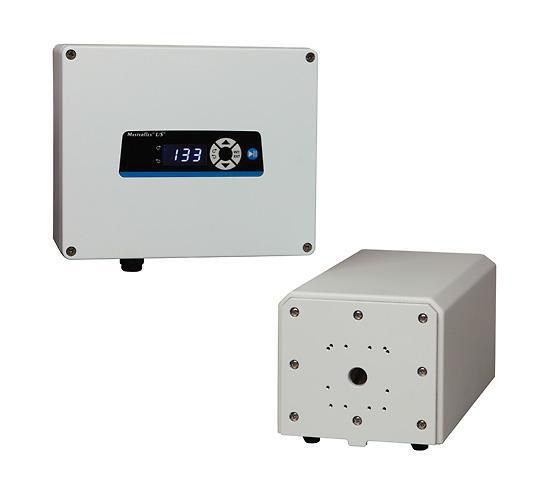

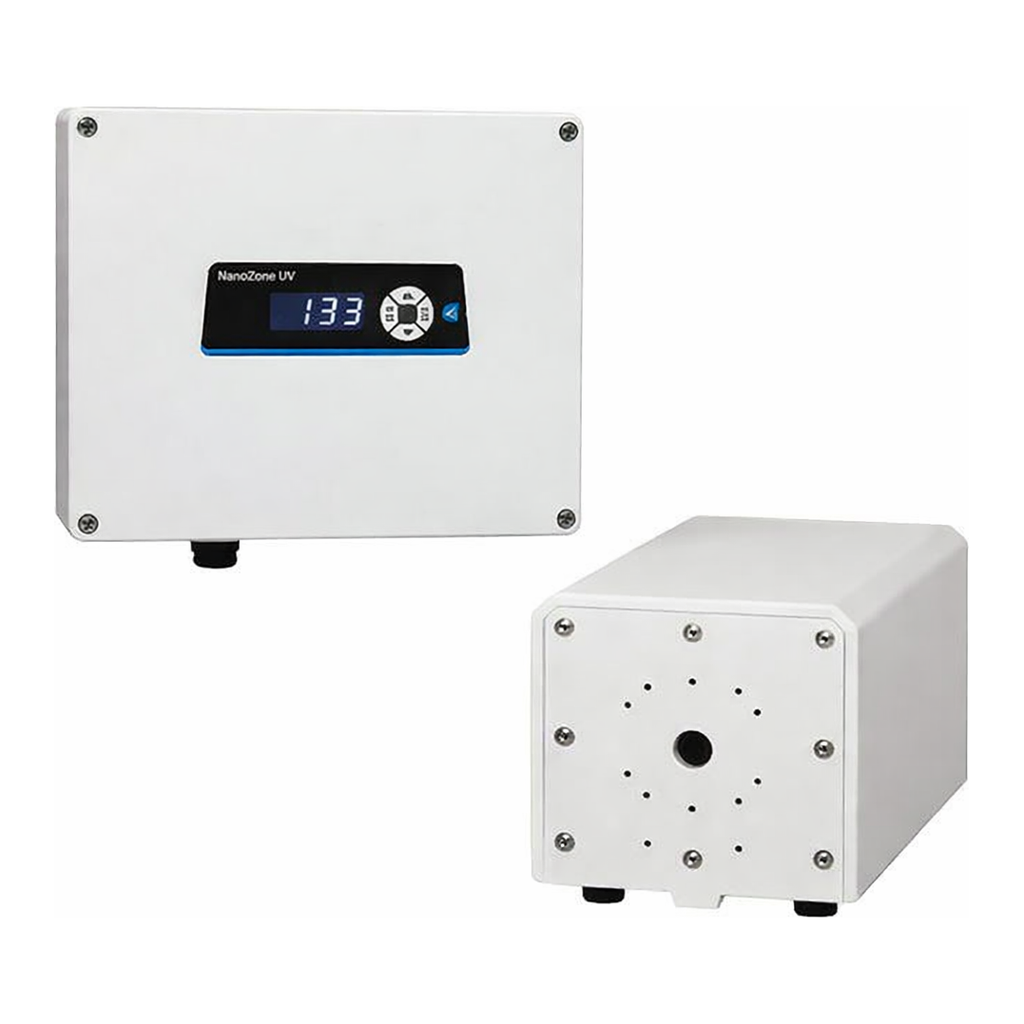

B. Washdown Modular Drive with Wall-Mount Controller
· Wall-mount controller housing is powder-coated aluminum, IP66 / NEMA 4X rated for washdown; powder-coated steel drive housing is IP66 / NEMA 4X rated for washdown
· 6-ft (1.8-m) cable connects drive and controller; optional extension cable is available
· Remote control via weather-resistant connection on controller
What’s included: 6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country-specific plug/cord set; please specify ultimate destination when ordering.
| rpm |
Speed control (resolution) |
Pump heads accepted |
Motor size |
IP rating |
Dimensions (L x W x H) |
Power (50/60 Hz) | Catalog number |
|
|---|---|---|---|---|---|---|---|---|
| VAC | Amps | |||||||
| A. Precision modular drive with benchtop controller | ||||||||
| 6 to 650 |
±0.25% (1 rpm at 650 rpm) |
2 |
1⁄5 hp (149 W) |
IP33 |
Controller 10 3⁄8" x 8 3⁄8" x 5 1⁄2" Drive 13 7⁄8" x 5 1⁄2" x 6 1⁄8" |
90 to 260 |
4.4 at 115 VAC, 2.2 at 230 VAC |
GY-07591-20 |
| B. Precision washdown modular drive with wall-mount controller | ||||||||
| 6 to 650 |
±0.25% (1 rpm at 650 rpm) |
2 |
1⁄5 hp (149 W) |
IP66 |
Controller 10 1⁄8" x 11" x 4 3⁄4" Drive 14 1⁄4" x 7" x 6 1⁄2" |
90 to 260 |
4.4 at 115 VAC, 2.2 at 230 VAC |
GY-07591-30 |
