Masterflex® L/S® Portable Sampling Pumps ENVIR SAMPLER VAR SPD 115/230
Description
Sample depths down to 7.9 meters (26 feet).
· 스피드 컨트롤용 1회전 전위차계, ON 표시기, 3위치 전원/후진 스위치 탑재
· 리버서블 플로우 및 프라이밍/퍼지 기능
· Masterflex® L/S® 이지 로드 펌프 헤드 포함
· 또한 Masterflex® L/S® 표준 펌프 헤드도 사용할 수 있습니다(별도 주문).
· 케이스를 닫고 걸었을 때 물에 떨어뜨리면 최대 30분 동안 떠 있습니다.
· IP54 등급의 제어판, 악천후 및 비산수로부터 보호
· 충전식 배터리 - 현장 어플리케이션에 최적
Specifications
|
|
|
|
|
| Flow rate |
Accepts tubing sizes |
rpm |
Power |
Catalog number |
| 120 to 1100 mL/min with included pump head |
L/S 15, 24 |
70 to 400 |
12 VDC or 115/230 VAC |
07571-02 |
제품사양
|
|
| Flow capacity |
4.2 to 1100 mL/min (0.06 to 17.4 GPH) |
| rpm |
70 to 400 |
| Number of heads accepted |
1 |
| Reversible |
Yes |
| External control – Input/Output |
Not applicable |
| Voltage/Frequency VAC (Hz)† |
115 / 230 (50/60) |
| Current |
0.25 A / 0.125 A |
| Motor type |
Permanent-magnet DC |
| Motor size |
37 W (1⁄20 hp) |
| Motor/speed control type |
Solid state |
| Speed regulation (repeatability) |
±5% (±5%) |
| Soft start/Electronic brake |
No |
| Housing materials |
HDPE, anodized aluminum, stainless steel, and polyester |
| IP rating |
IP54 |
| Operating temperature |
0 to 50°C (32 to 122°F) |
| Storage temperature |
–20 to 65°C (–4 to 149°F) |
| Humidity limits |
10 to 90% noncondensing |
| Dimensions (L x W x H) |
38 x 31 x 24 cm (15x 121⁄8 x 91⁄2`) |
| Shipping weight |
8.1 kg (17.8 lb) |
기타사항

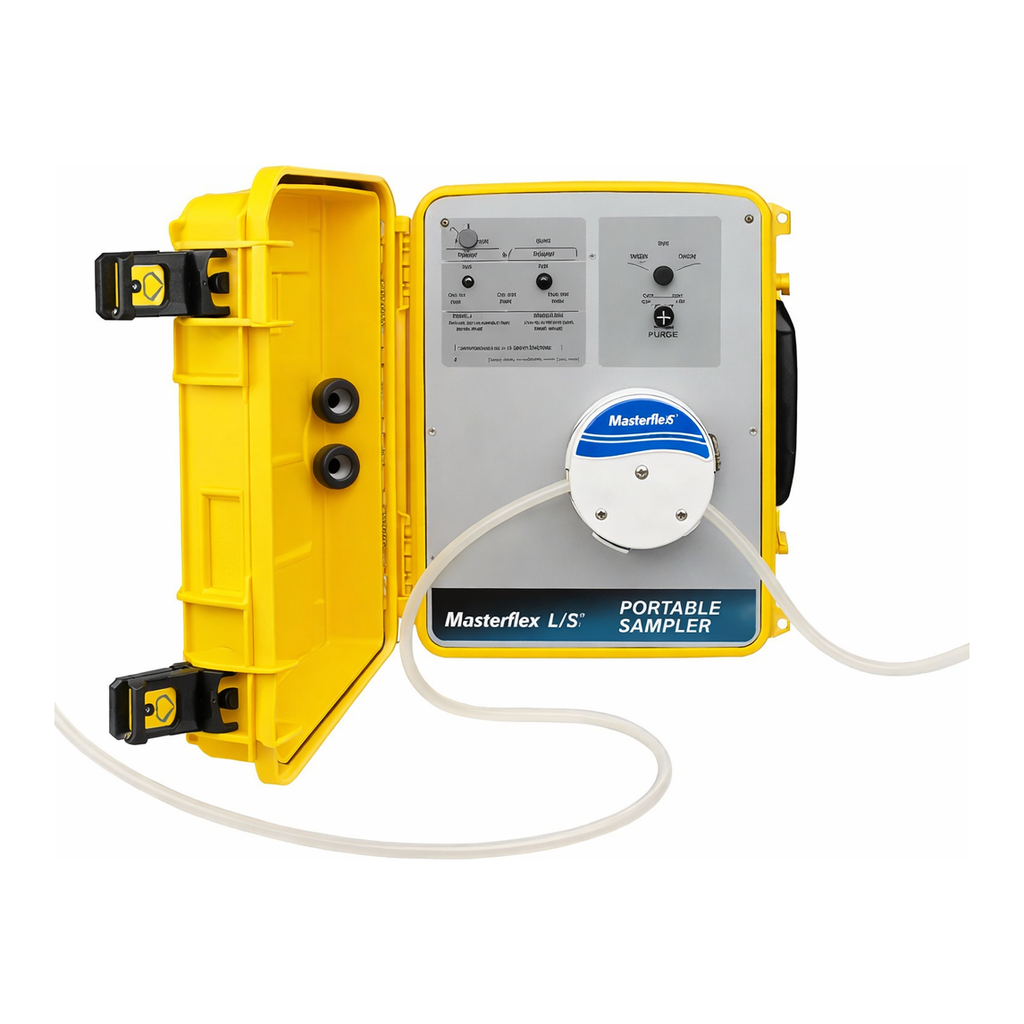

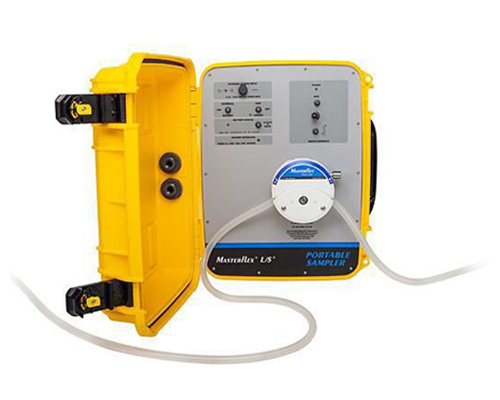

The Masterflex® L/S® portable sampler is designed for the ultimate in portability and versatility. Run up to four hours on the self-contained 12 VDC rechargeable battery, or indefinitely from any AC or 12 VDC power supply. Charge the internal battery from an AC power supply or a DC voltage source of lower voltaic potential than the battery itself. The variable-speed drive has a top speed of 400 rpm, allowing you to adjust the flow rate to the needs of your application.
Pump is encased in a high-visibility yellow housing for easy recognition and recovery in the field.
