Masterflex L/S Precision Washdown Modular Drives with Wall-Mount Controller, Avantor
| 상품 옵션 정보 | ||||||||
|---|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | CAS 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| MFLX07557-60 | - | MasterFlex MFLX07557-60 DRIVE MFLX LS NEMA 600 EUROPEAN 230V ea | 재고문의 | ea | 0원 | - | 0원 | |
| MFLX07557-70 | - | MasterFlex MFLX07557-70 DRIVE MFLX LS NEMA 100 EUROPEAN 230V ea | 재고문의 | ea | 0원 | - | 0원 | |
다른 상품 둘러보기
L/S® Precision Variable-Speed Modular Drives
Place where convenient—ideal for limited spaces, hoods, or isolation chambers
**
Description**
· Three-digit LED display shows motor rpm—confirm speed setting at a glance
· Remote control capabilities: speed, direction, and start/stop
· ±0.25% speed control for precise flow regulation—ideal for metering applications
A. Modular Drives with Benchtop Controller
**· Splash-resistant ABS plastic controller housing is IP33 rated; drive housing is epoxy finished steel, IP33 rated
· Remote control capabilities via a DB9 female connector on back of controller

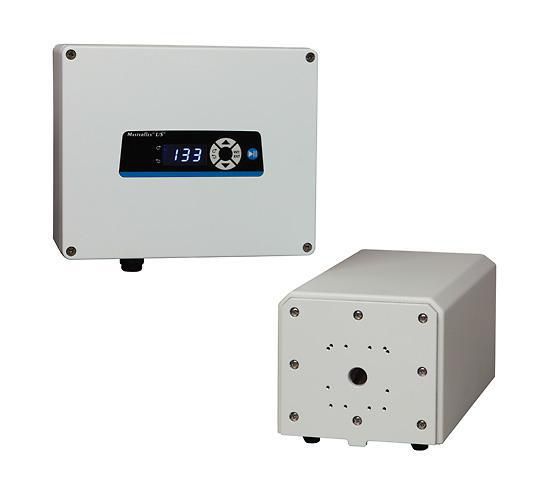

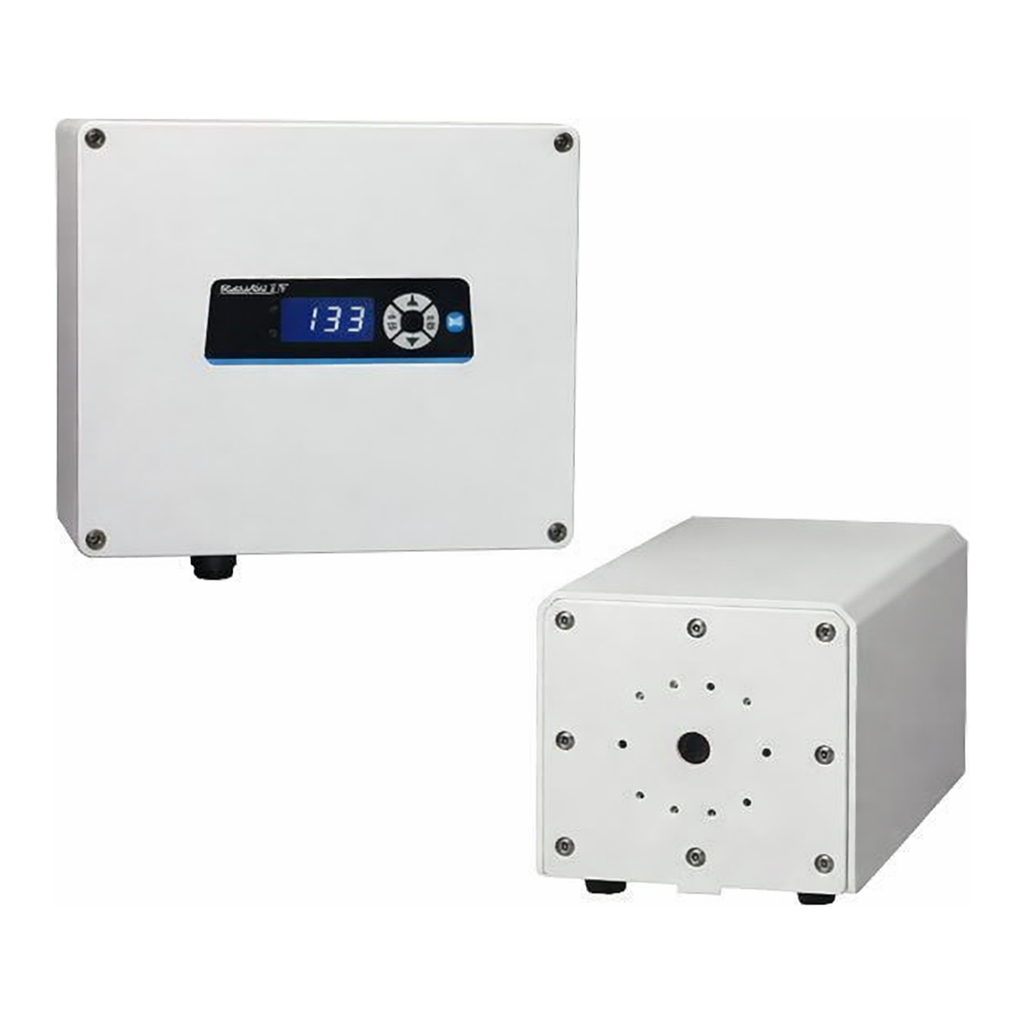

B. Washdown Modular Drives with Wall-Mount Controller
· Wall-mount controller housing is powder-coated aluminum, IP66 / NEMA 4X rated for washdown; powder-coated steel drive housing is IP66 / NEMA 4X rated for washdown
· Remote control capabilities via weather-resistant connection on controller
| rpm |
Speed control (resolution) |
Pump heads accepted |
Motor size |
IP rating |
Dimensions (L x W x H) |
Power (50/60 Hz) | Catalog number |
|
|---|---|---|---|---|---|---|---|---|
| VAC | Amps | |||||||
| A. Precision modular drives with benchtop controller | ||||||||
| 6 to 600 |
±0.25% (1 rpm at 600 rpm; 0.1 rpm at 100 rpm) |
2 |
1⁄10 hp (75 W) |
IP33 |
Controller: 10 1⁄2" x 8 1⁄4" x 5" Drive: 10 3⁄4" x 4 3⁄8" x 4 1⁄2" |
90 to 260 |
2.2 at 115 VAC, 1.1 at 230 VAC |
GY-07557-00 |
| 1 to 100 |
4 |
GY-07557-10 |
||||||
| B. Precision washdown modular drives with washdown wall-mount controller | ||||||||
| 6 to 600 |
±0.25% (1 rpm at 600 rpm; 0.1 rpm at 100 rpm |
2 |
1⁄10 hp (75 W) |
IP66 |
Controller: 9" x 11 3⁄4" x 4 1⁄2" Drive: 15 9⁄16" x 7" x 6" |
90 to 260 |
2.2 at 115 VAC, 1.1 at 230 VAC |
GY-07557-60 |
| 1 to 100 |
4 |
GY-07557-70 |
||||||
GY-07557-51 Extension cable, 9 ft (2.7 m); extend distance between motor and controller
GY-07595-47 Cable assembly, for benchtop modular drives; DB9 male connector and 25 ft (7.9 m) cable with stripped wire terminal ends. Use for remote control
GY-77300-32 Cable assembly, for washdown modular drives; 18-pin round connector and 25 ft (7.9 m) cable with stripped wireterminal ends. Use for remote control
GY-17050-01 NIST-traceable calibration with data for peristaltic pump drive
