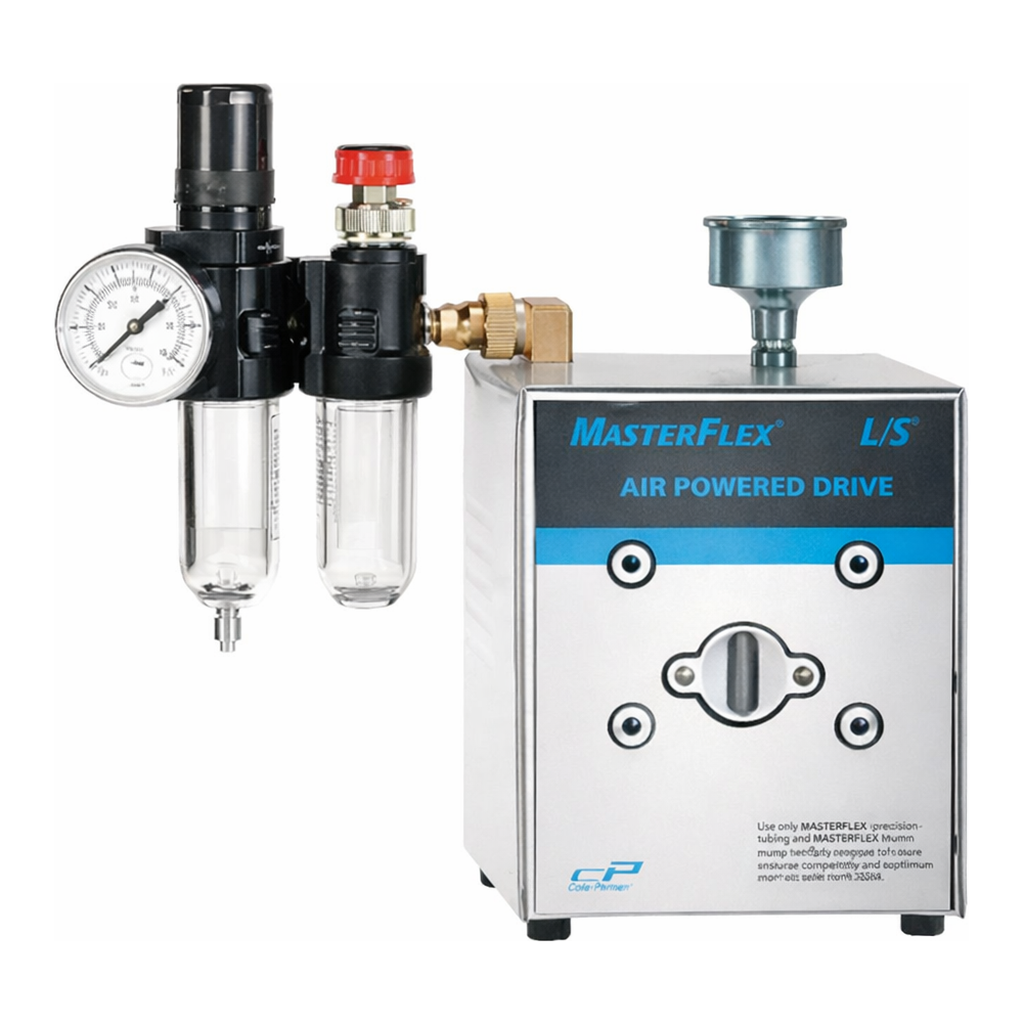

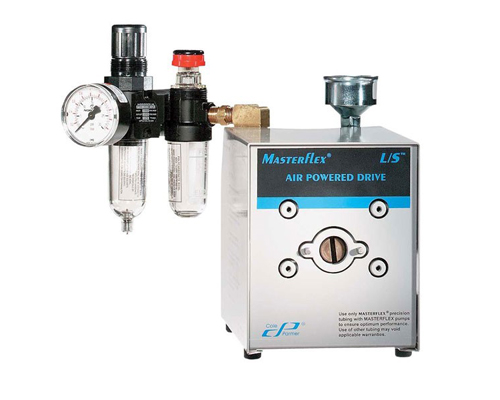

Masterflex L/S Variable-Speed Air-Powered Drive, Avantor
| 상품 옵션 정보 | ||||||
|---|---|---|---|---|---|---|
| 카탈로그 번호 | 설명 | 상태 | 단위 | 가격 | 가격(VAT포함) | 수량 / 장바구니 |
| MFLX07569-00 | MasterFlex MFLX07569-00 DRIVE MFLEX L/S AIR-POWERED ea | 재고문의 | ea | 2,953,000원 | 3,248,300원 | |
다른 상품 둘러보기
L/S® Air-Powered Drive
Use where electrical power is unsafe or unavailable
Description
Features
· 1⁄3-hp air motor requires little maintenance. Air motor generates less heat than electric motor
· IP44 rated—painted steel housing protects from gentle spray
· ATEX Zone 2 approved; rated to EEx II 3 G c IIC T6
· Drives accept nine pump head types: Standard, Easy-Load®, Easy-Load® II, Easy-Load® 3, Multichannel, High-Performance, Cartridge, PTFE-Tubing, and PTFE-Diaphragm
Note: Careful grounding to protect from static electricity is vital for safe operation. Drive meets EU machine directive requirements for
CE compliance.
What’s included: air/speed regulator with 5-μm air filter, automatic lubricator, 0 to 30 psi pressure gauge, and muffler.
Flow Rates in mL/min (flow rates in parentheses can only be obtained with the High-Performance pump head—see page 691)
| rpm | Precision pump tubing | High-performance precision pump tubing | ||||||||
| L/S 13 | L/S 14 | L/S 16 | L/S 25 | L/S 17 | L/S 18 | L/S 15 | L/S 24 | L/S 35 | L/S 36 | |
| Standard, Easy-Load, Easy-Load II, Easy-Load 3 | Multichannel, Standard, Easy-Load II, Easy-Load 3, High-Performance |
|||||||||
| Cartridge, Multichannel | Cartridge | Easy-Load | ||||||||
| 60 to 600 | 3.6 to 36 | 13 to 130 | 48 to 480 | 100 to 1000 | 170 to 1700 | 230 to 2300 | 100 to 1000 (110 to 1100) |
170 to 1700 (180 to 1800) |
230 to 2300 (260 to 2600) |
290 to 2900 (340 to 3400) |
| rpm | Speed control | Pump heads accepted |
Motor size |
IP rating |
Dimensions (L x W x H) |
Power | |
| 60 to 600 | ±10% | 2 | 1⁄3 hp (250 W) |
IP44 | 9 7⁄8x 4 13⁄16 x 8 13⁄16` (25.1 cm x 12.2 cm x 22.4 cm) |
3 to 25 cfm (0.08-0.7 m3/min) at 20 to 100 psi (1.4 to 6.9 bar) |
