Masterflex L/S Easy-Load Pump Heads for High-Performance Precision Tubing, Avantor

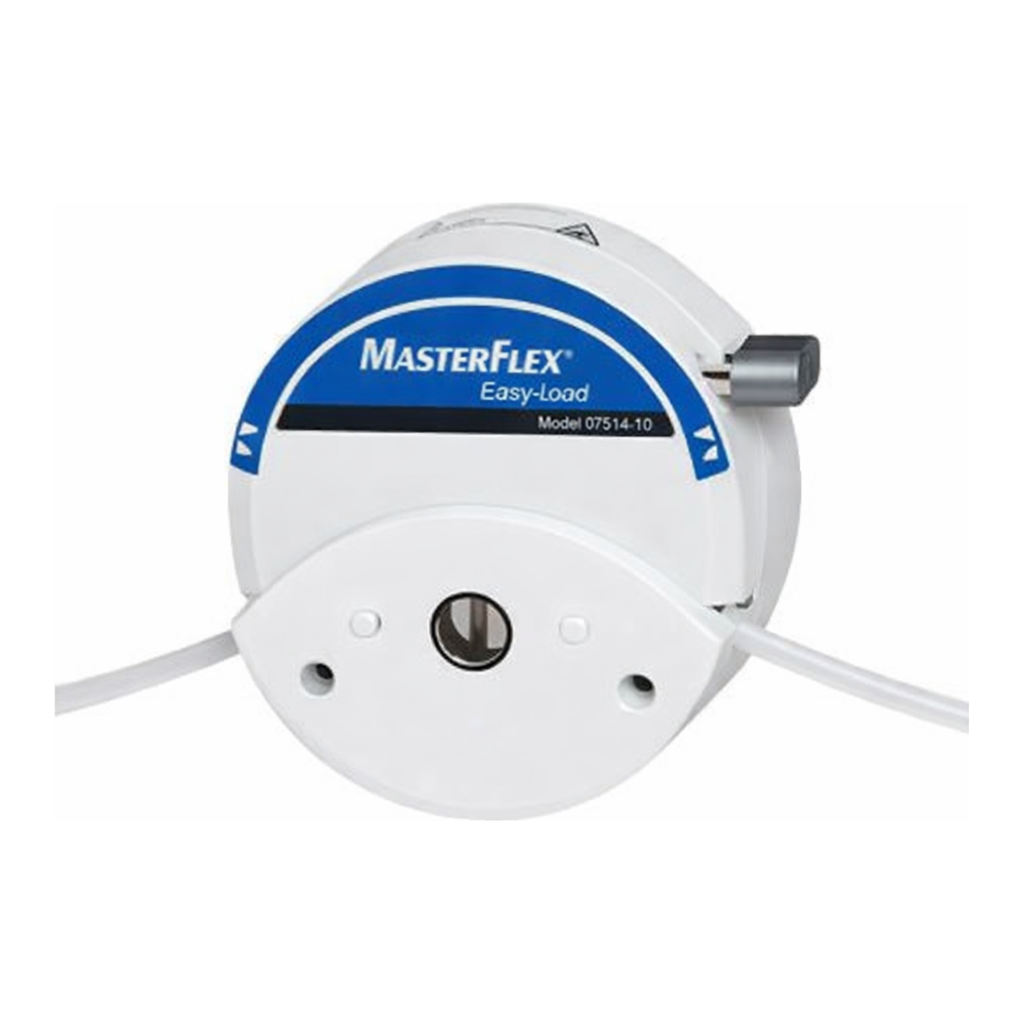

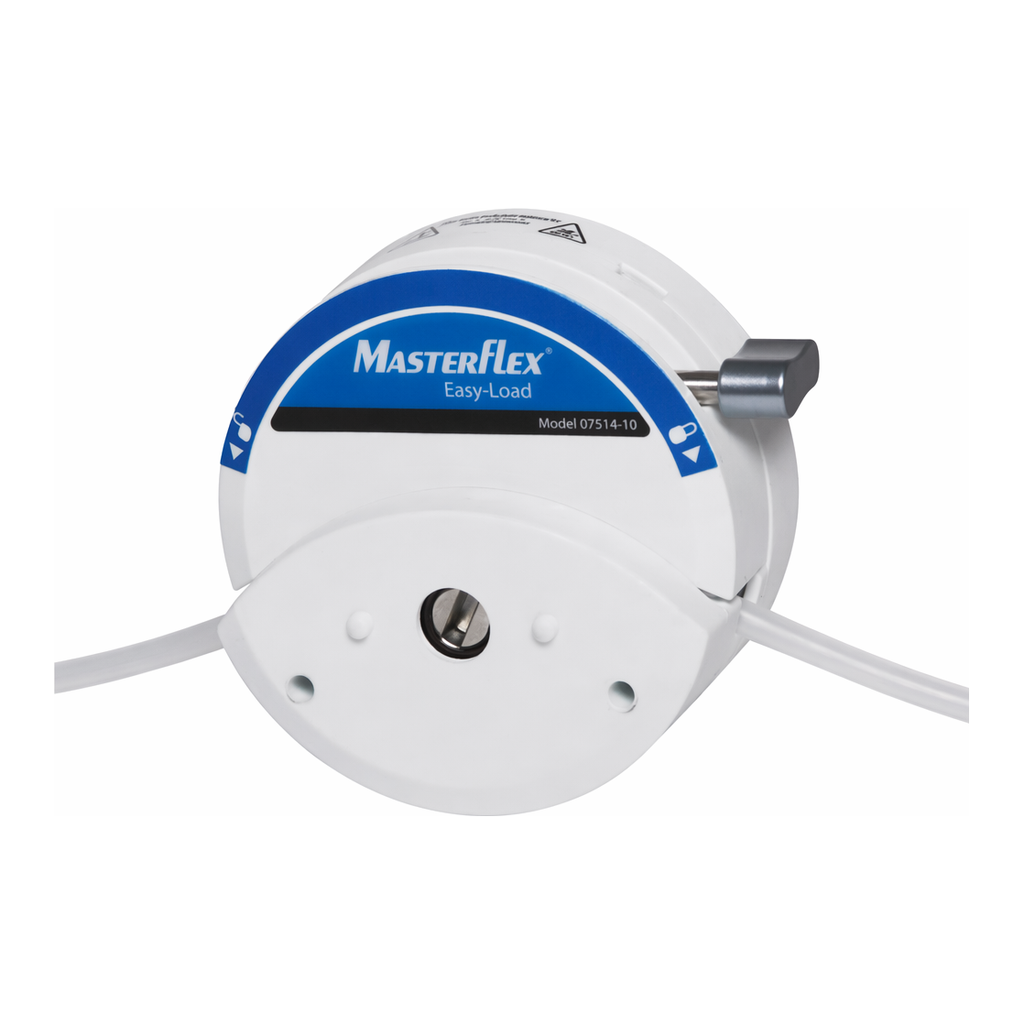

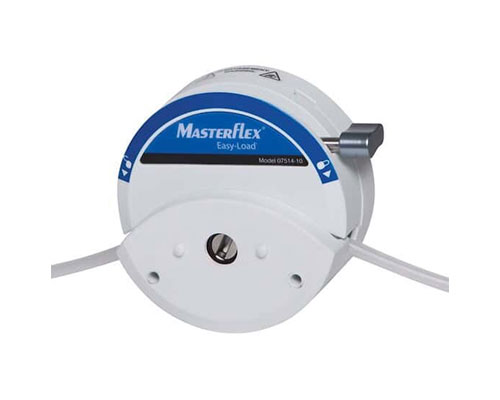

New Masterflex® L/S® Easy-Load® Pump Heads

Description
Ideal for many applications from laboratory, to medical devices, to industrial

· Sleek, modern design perfect for clinical and biopharmaceutical applications
· Smaller footprint fits into almost any space
· Reduced pulsation and improved pressure capabilities with new four-roller design
· Improved occlusion bed geometry reduces tubing wear, lengthens tubing life
· Faster tube changes with single-thumb actuation and automatic tubing retention
· Stack the pump heads for multichannel pumping

The new Masterflex L/S Easy-Load pump head replaces the original Easy-Load pump head launched back in 1989. This new pump head not only has a new sleek and compact design but also has features that provide more efficient pumping. The four-roller design improves pressure performance, stability, and reduces pulsation. Improved occlusion-bed geometry reduces tubing wear and lengthens tubing life. Tubing changes have never been faster with single-thumb actuation.

The Easy-Load pump head is ideal for many applications including challenging environments with its polyarylamide housing that protects against corrosive liquids and vapors, a corrosion-resistant stainless steel rotor, and PTFE-shielded bearings for long life expectancy.

Customizable Contact us for more options · Mounting adapters · Motors · Open-head sensors · Leak detection · Colors – And more... Applications · Bioreactors · Ablation · Laser cooling · Fermenters · Angioscopy · Vending machines · Analyzers · Endoscopy · Seed coating · Surgical irrigation · Liposuction · Ice cream flavoring

Tubing cross sections	L/S Precision pump tubing						L/S High-Performance Precision pump tubing
L/S 13	L/S 14	L/S 16	L/S 25	L/S 17	L/S 17	L/S 15	L/S 24
Flow rate–mL/rev	0.06	0.21	0.8	1.7	2.8	3.8	1.7	2.8
mL/min @ 600 rpm	36	130	480	1000	1700	2300	1000	1700
Max pressure	2.7 bar (40 psi)			2.4 bar (35 psi)	1.4 bar (20 psi)	1.0 bar (15 psi)	2.7 bar (40 psi)
Max vacuum	660 mm Hg (26` Hg)				510 mm Hg (20` Hg)		660 mm Hg (26` Hg)
Suction lift	8.8 m H20 (29 ft H20)				6.7 m H20 (22 ft H20)		8.8 m H20 (29 ft H20)

Specifications

· Housing: polyarylamide
· Rotor: stainless steel
· Humidity: 0 to 90%
